FBNurbs Class Reference

Nurbs class. More...

#include <pyfbsdk_generated.h>

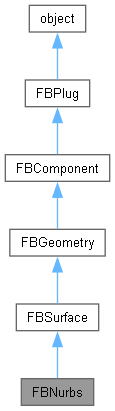

Inheritance diagram for FBNurbs:

Public Member Functions

 FBNurbs (str pName)
 Constructor.

 ControlPointsBegin ()
 Begin NURBS control points edition.

 ControlPointsEnd ()
 End NURBS control points edition.

float GetControlKnotValue (int pUorV, int pIndex)
 Get knot vector value of control point.

int GetControlMultiplicity (int pUorV, int pIndex)
 Get multiplicity (number of "instances") of control point.

float GetControlWeight (int pIndex)
 Get weight of control point.

int GetKnotCount (int pUorV)
 Number of knot vectors.

 SetControlKnotValue (int pUorV, int pIndex, float pKnotValue)
 Set knot vector value of control point.

 SetControlMultiplicity (int pUorV, int pIndex, int pMultiplicity)
 Set multiplicity (number of "instances") of control point.

 SetControlWeight (int pIndex, float pWeight)
 Set weight of control point.

 SurfaceBegin ()
 Begin NURBS definition.

 SurfaceEditBegin ()
 Begin NURBS surface edition.

 SurfaceEditEnd ()
 End NURBS surface edition.

 SurfaceEnd ()
 End NURBS definition.

- Public Member Functions inherited from FBSurface
 FBSurface (str pName)
 Constructor.

 ControlPointsBegin ()

 ControlPointsEnd ()

 GetControlPoint (int pIndex, float pX, float pY, float pZ, float pW)

bool GetSurfaceCapped (int pUorV, int pDirection)

 SetControlPoint (int pIndex, float pX, float pY, float pZ, float pW)

 SurfaceBegin ()

 SurfaceEditBegin ()

 SurfaceEditEnd ()

 SurfaceEnd ()

bool VertexGetSelected (int pU, int pV)
 Get the selected state of a vertex.

bool VertexGetTransformable (int pU, int pV)
 Get the Transformable state of a vertex.

bool VertexGetVisible (int pU, int pV)
 Get the visible state of a vertex.

bool VertexSetSelected (int pU, int pV, bool pState)
 Set the selected state of a vertex.

bool VertexSetVisible (int pU, int pV, bool pState)
 Set the visible state of a vertex.

- Public Member Functions inherited from FBGeometry
bool GeometryBegin ()
 Begin geometry editing.

bool GeometryEnd ()
 End geometry editing.

FBNormal GetBinormalsDirectArray (int pOutArrayCount)
 Get a pointer to the direct array of binormals.

int GetBinormalsIndexArray (int pOutArrayCount)
 Get a pointer to the index array of binormals.

int GetMaterialIndexArray (int pOutArrayCount)
 Get a pointer to the index array of Material.

FBNormal GetNormalsDirectArray (int pOutArrayCount)
 Get a pointer to the direct array of normals.

int GetNormalsIndexArray (int pOutArrayCount)
 Get a pointer to the index array of normals.

FBVertex GetPositionsArray (int pOutArrayCount)
 Get a pointer to the position array.

FBNormal GetTangentsDirectArray (int pOutArrayCount)
 Get a pointer to the direct array of tangents.

int GetTangentsIndexArray (int pOutArrayCount)
 Get a pointer to the index array of tangents.

FBUV GetUVSetDirectArray (int pOutArrayCount, str pUVSetName=None)
 Get a pointer to the direct array of UVset Modify array value will be only effective when geometry editing is enabled.

int GetUVSetIndexArray (int pOutArrayCount, str pUVSetName=None)
 Get a pointer to the index array of UVset.

FBGeometryMappingMode GetUVSetMappingMode (str pUVSetName=None)
 Get UVSet mapping mode.

FBGeometryReferenceMode GetUVSetReferenceMode (str pUVSetName=None)
 Get UVSet reference mode.

FBStringList GetUVSets ()
 Get available UVSet name.

FBColorF GetVertexColorsDirectArray (int pOutArrayCount)
 Get a pointer to the direct array of vertex color.

int GetVertexColorsIndexArray (int pOutArrayCount)
 Get a pointer to the index array of vertex color.

int ShapeAdd (str pName)
 Add new shape.

 ShapeClearAll ()
 Clears all the shapes.

int ShapeGetCount ()
 Get Shape Count.

str ShapeGetName (int pShapeIdx)
 Return the shape Name.

 ShapeInit (int pShapeIdx, int pDiffSize, bool pWithNormal=False)
 Init the shape.

bool ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, FBVertex pPosDiff)
 Set the differentiate point.

bool ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, FBVertex pPosDiff, FBNormal pNormalDiff)
 Set the differentiate point.

int VertexAdd (FBVertex pVertex)
 Add a vertex.

int VertexAdd (FBVertex pVertex, FBNormal pNormal)
 Add a vertex.

int VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV)
 Add a vertex.

int VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV, FBColorF pVertexColor)
 Add a vertex.

int VertexAdd (float px, float py, float pz)
 Add a vertex.

int VertexAdd (float px, float py, float pz, float nx, float ny, float nz)
 Begin geometry editing.

int VertexAdd (float px, float py, float pz, float nx, float ny, float nz, float UVu, float UVv)
 Begin geometry editing.

int VertexAdd (float px, float py, float pz, float nx, float ny, float nz, float UVu, float UVv, float pRed, float pGreen, float pBlue, float pAlpha)
 Begin geometry editing.

bool VertexArrayClear ()
 Clear all geometry vertex arrays.

bool VertexArrayInit (int pVertexcount, bool pUniqueMaterial, unsigned int pFBGeometryArrayIDs=0)
 Init geometry vertex arrays.

bool VertexClear ()
 Clear all Vertex arrays.

FBColorF VertexColorGet (int pIndex=-1)
 Get a Vertex Color.

bool VertexColorSet (FBColorF pColor, int pIndex=-1)
 Set a Vertex Color.

bool VertexColorSet (float pRed, float pGreen, float pBlue, float pAlpha, int pIndex=-1)
 Set a UV coordinate.

int VertexCount ()
 Get the number of vertices in the geometry.

FBVertex VertexGet (int pIndex)
 Get a vertex.

bool VertexGetSelected (int pIndex)
 Get the selected state of a vertex.

bool VertexGetTransformable (int pIndex)
 Get the Transformable state of a vertex.

bool VertexGetVisible (int pIndex)
 Get the visible state of a vertex.

 VertexInit (int pSize, bool pResize, bool pInitUV=True, bool pInitVertexColor=False)
 Resize or Reserve vertex, normal and UV array for performance.

FBNormal VertexNormalGet (int pIndex=-1)
 Get a normal at a vertex.

bool VertexNormalSet (FBNormal pVertex, int pIndex=-1)
 Set a normal at a vertex.

bool VertexNormalSet (float px, float py, float pz, int pIndex=-1)
 Set a normal at a vertex.

bool VertexSet (FBVertex pVertex, int pIndex=-1)
 Set a vertex.

bool VertexSet (float px, float py, float pz, int pIndex=-1)
 Set a vertex.

bool VertexSetSelected (int pIndex, bool pState)
 Set the selected state of a vertex.

bool VertexSetVisible (int pIndex, bool pState)
 Set the visible state of a vertex.

FBUV VertexUVGet (int pIndex=-1)
 Get a UV coordinate.

bool VertexUVSet (FBUV pUV, int pIndex=-1)
 Set a UV coordinate.

bool VertexUVSet (float pU, float pV, int pIndex=-1)
 Set a UV coordinate.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

FBNurbType UNurbType
 Read Write Property: Nurbs Type for U direction.


int UOrder
 Read Write Property: Nurbs U order.


FBNurbType VNurbType
 Read Write Property: Nurbs Type for V direction.


int VOrder
 Read Write Property: Nurbs V order.


- Public Attributes inherited from FBSurface
FBSurfaceMode SurfaceMode
 Read Write Property: Surface mode.


bool UClosed
 Read Write Property: U Closed.


int USize
 Read Write Property: Size in U directions.


int UStep
 Read Write Property: Step in U directions.


bool VClosed
 Read Write Property: V Closed


int VSize
 Read Write Property: Size in V directions.


int VStep
 Read Write Property: Step in V directions.


- Public Attributes inherited from FBGeometry
FBGeometryMappingMode BinormalMappingMode
 Read Only Property: Binormal mapping mode.


FBGeometryReferenceMode BinormalReferenceMode
 Read Only Property: Binormal reference mode.


FBGeometryMappingMode MaterialMappingMode
 Read Property: Material mapping mode.


FBGeometryMappingMode NormalMappingMode
 Read Only Property: Normal mapping mode.


FBGeometryReferenceMode NormalReferenceMode
 Read Only Property: Normal reference mode.


FBGeometryMappingMode TangentMappingMode
 Read Only Property: Tangent mapping mode.


FBGeometryReferenceMode TangentReferenceMode
 Read Only Property: Tangent reference mode.


FBGeometryMappingMode VertexColorMappingMode
 Read Only Property: Vertex Color mapping mode.


FBGeometryReferenceMode VertexColorReferenceMode
 Read Only Property: Vertex Color reference mode.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Nurbs class.


Constructor & Destructor Documentation

◆ FBNurbs()

FBNurbs ( str  pName)

Constructor.

Parameters
pNameName of Nurbs.

Member Function Documentation

◆ ControlPointsBegin()

ControlPointsBegin ( )

Begin NURBS control points edition.

◆ ControlPointsEnd()

ControlPointsEnd ( )

End NURBS control points edition.

◆ GetControlKnotValue()

float GetControlKnotValue ( int  pUorV,
int  pIndex
)

Get knot vector value of control point.

Parameters
pUorV1 if V knot vector, 0 if U knot vector.
pIndexIndex of control point to set knot value for.

◆ GetControlMultiplicity()

int GetControlMultiplicity ( int  pUorV,
int  pIndex
)

Get multiplicity (number of "instances") of control point.

Parameters
pUorV1 if V multiplicity, 0 if U multlipicity.
pIndexIndex of control point to get multiplicity for.

◆ GetControlWeight()

float GetControlWeight ( int  pIndex)

Get weight of control point.

Parameters
pIndexIndex of control point to get weight from.
Returns
Weight of control point at index pIndex.

◆ GetKnotCount()

int GetKnotCount ( int  pUorV)

Number of knot vectors.

Parameters
pUorV1 if V knot vector, 0 if U knot vector.
Returns
Number of knot vectors on NURBS surface

◆ SetControlKnotValue()

SetControlKnotValue ( int  pUorV,
int  pIndex,
float  pKnotValue
)

Set knot vector value of control point.

Parameters
pUorV1 if V knot vector, 0 if U knot vector.
pIndexIndex of control point to set knot value for.
pKnotValueKnot value for control point at pIndex.

◆ SetControlMultiplicity()

SetControlMultiplicity ( int  pUorV,
int  pIndex,
int  pMultiplicity
)

Set multiplicity (number of "instances") of control point.

Parameters
pUorV1 if V multiplicity, 0 if U multlipicity.
pIndexIndex of control point to set multiplicity for.
pMultiplicityMultiplicity value for control point at pIndex.

◆ SetControlWeight()

SetControlWeight ( int  pIndex,
float  pWeight
)

Set weight of control point.

Parameters
pIndexIndex of control point to set weight at.
pWeightWeight of control point.

◆ SurfaceBegin()

SurfaceBegin ( )

Begin NURBS definition.

◆ SurfaceEditBegin()

SurfaceEditBegin ( )

Begin NURBS surface edition.

◆ SurfaceEditEnd()

SurfaceEditEnd ( )

End NURBS surface edition.

◆ SurfaceEnd()

SurfaceEnd ( )

End NURBS definition.

Member Data Documentation

◆ UNurbType

FBNurbType UNurbType

Read Write Property: Nurbs Type for U direction.

◆ UOrder

int UOrder

Read Write Property: Nurbs U order.

◆ VNurbType

FBNurbType VNurbType

Read Write Property: Nurbs Type for V direction.

◆ VOrder

int VOrder

Read Write Property: Nurbs V order.
