FBTool Class Reference

Tool class. More...

#include <pyfbsdk_generated.h>

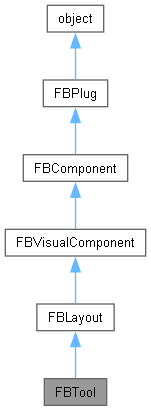

Inheritance diagram for FBTool:

Public Member Functions

 FBTool (str pName=None)
 Constructor.

 FBTool (str pName, bool pRegisterTool)
 Constructor used when creating tools not in the Tools menu of MotionBuilder.

FBToolPossibleDockPosition GetPossibleDockPosition ()
 Get the possible docking position for the tool (concatenated).

 SetPossibleDockPosition (FBToolPossibleDockPosition pFlags)
 Set the possible docking position for the tool.

- Public Member Functions inherited from FBLayout
 FBLayout ()
 Constructor.

bool AddRegion (str pName, str pTitle, int pX, FBAttachType pXType, str pXRelative, float pMultX, int pY, FBAttachType pYType, str pYRelative, float pMultY, int pW, FBAttachType pWType, str pWRelative, float pMultW, int pH, FBAttachType pHType, str pHRelative, float pMultH)
 Add a region to the layout.

 ClearControl (str pName)
 Remove a control from a region in a visual component.

FBVisualComponent GetControl (str pName)
 Get control of a region in a visual component.

bool GetRegion (str pName)
 Verify if a region with pName exists.

bool GetRegionPositions (str pName, bool pComputed, int pX, int pY, int pW=None, int pH=None)
 Get region pName information (position and size)

FBSplitStyle GetSplitStyle (str pName)
 Get a region's splitstyle.

bool MoveRegion (str pName, int pX, int pY)
 Move a region.

bool RemoveRegion (str pName)
 Remove a region.

bool RenameRegion (str pOldName, str pNewName)
 Rename a region.

 Restructure (bool pNoMove)
 Force a recomputation of all region placements in the layout.

 SetAutoRestructure (bool pAutoRestructure)
 Suspend all automatic layout recomputation.

bool SetBorder (str pName, FBBorderStyle pType, bool pShowTitle, bool pInSet, int pWidth, int pSpacing, float pMaxAngle, int pCornerRadius)
 Set border properties for a region.

bool SetControl (str pName, FBVisualComponent pComponent)
 Set control of a region to a visual component.

bool SetControl (str pName, FBVisualComponent pComponent)

bool SetRegionTitle (str pName, str pTitle)
 Set a region's title.

bool SetSplitStyle (str pName, FBSplitStyle pRegionType)
 Set a region's splitstyle.

bool SetView (str pName, FBVisualComponent pComponent)
 Set view.

bool SetView (str pName, FBVisualComponent pComponent)

bool SizeRegion (str pName, int pW, int pH)
 Change a region's size.

- Public Member Functions inherited from FBVisualComponent
 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

str DisplayName
 Read Write Property: Tool Display Name (Caption on the tool's title bar)


- Public Attributes inherited from FBLayout
FBEvent OnIdle
 Event: Idle.


FBEvent OnInput
 Event: Input.


FBEvent OnPaint
 Event: Paint layout.


FBEvent OnResize
 Event: Resize layout.


FBEvent OnShow
 Event: Show layout.


- Public Attributes inherited from FBVisualComponent
str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Constructor & Destructor Documentation

◆ FBTool() [1/2]

FBTool ( str  pName = None)

Constructor.

Parameters
pNameName of tool.

◆ FBTool() [2/2]

FBTool ( str  pName,
bool  pRegisterTool
)

Constructor used when creating tools not in the Tools menu of MotionBuilder.

Parameters
pNameName of tool, must be an unique name.
pRegisterToolTells if we should register the tool on the toolmanager. You can later call Showtool to pop it.

Member Function Documentation

◆ GetPossibleDockPosition()

FBToolPossibleDockPosition GetPossibleDockPosition ( )

Get the possible docking position for the tool (concatenated).

Returns
Get all the docking flags in one call. Flags can be concatenated.

◆ SetPossibleDockPosition()

SetPossibleDockPosition ( FBToolPossibleDockPosition  pFlags)

Set the possible docking position for the tool.

Be sure to call this function once the tool is visible, a good place to call it is when the OnShow event of the layout is called.

Parameters
pFlagsSet the docking position flag values. Note: this function overwrites all flags with those passed in parameter.

Member Data Documentation

◆ DisplayName

str DisplayName

Read Write Property: Tool Display Name (Caption on the tool's title bar)
