Have You Tried: Groups

Have you ever found yourself repeatedly selecting the same set of objects for copying, moving, or some other operation?

For example, you might be working with a standard office furniture arrangement, a mechanical assembly, or part of an infrastructure component. You could associate them in a block definition, but there's a quicker method using the Group feature.

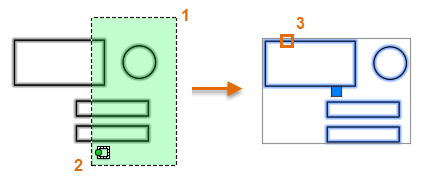

With the GROUP command, simply select the objects that you want to associate together (1, 2) and press Enter. Then, when you select any object in the group (3), all of the grouped objects are selected. A grip is displayed at the center of the group bounding box to provide access to all grip operations.

To disassociate the objects, use the UNGROUP command and select one of the objects in the group. The group association is dissolved.

Note: Steps, images, and videos may differ slightly from your version of the product.

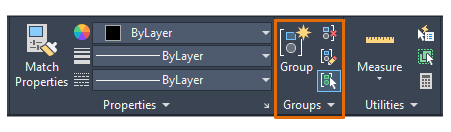

For easy access to the controls for groups on the ribbon, locate the Home tab, Groups panel.

The commands in the panel include Group and Ungroup, plus . . .

  • Group Edit. Use this command to add to or remove objects from a group.
  • Group Selection On/Off. Use this toggle to control whether the entire group is selected or just an object within the group is selected when you select a grouped object. Use this toggle when you need to modify the objects within a group, click it again to restore group selection.

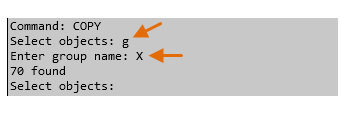

Note: When you create a group, you can use the Name option to assign a name to the group. Naming groups is handy when a large drawing contains many groups and you want to make sure that you specify the correct group. You can specify a group at the Select Objects prompt by entering g or group followed by the group name.

Create and Work with a Group

  1. Open one of your drawings or create some simple objects as previously illustrated.
  2. Select several objects that you want to group.
  3. Click Home tabGroups panelGroup. Find

    The objects now belong to a group.

  4. Start the Copy command, select one of the objects in the group, and specify the location for the copied objects.

    With group selection turned on, the copy of the group is also a separate group.

  5. Click Home tab Groups panelGroup Selection On/Off Find
  6. Move a single object in the copied group.
  7. Click the Group Selection On/Off button again to restore group selection, and erase the entire copied group. Remember, you only need to select one object within the group.
  8. Click Home tabGroups panelUngroup. Find
  9. Select an object in the original group that you created.

So, the next time you spend time selecting an intricate set of objects, consider whether taking the extra step of using the Group feature will save you time selecting and reselecting the same objects.
