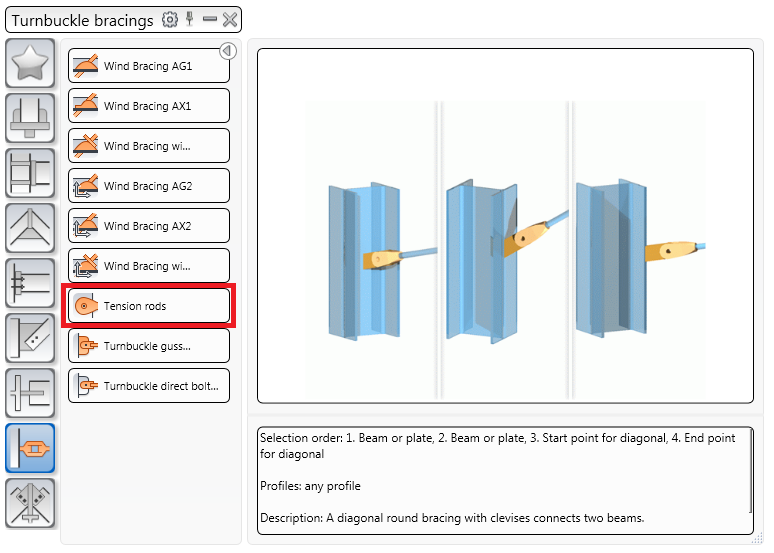

The "Tension Rods" or "Bracing with bar armature" joints are accessible from the Connection Vault.
On the ribbon, click
(Connection Vault).
- Home
Extended Modeling
(Connection Vault) - Extended Modeling Joints
(Connection Vault)
The Tension Rods can be used in two situations:
- On beams

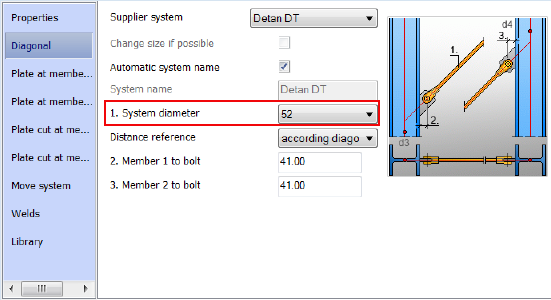

When the user creates the joint on beams, the system diameter can be selected from the options of the joint.
In this case Advance Steel creates the plate.

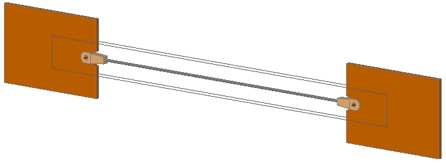

- On plates

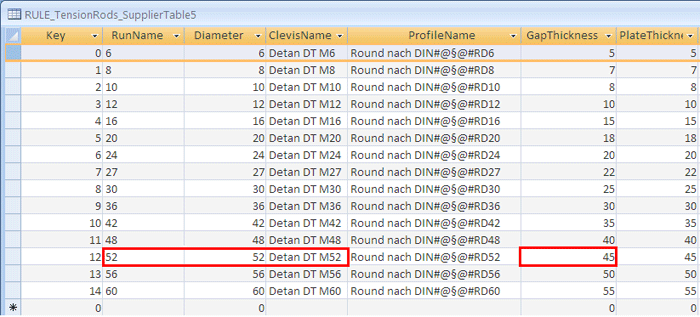

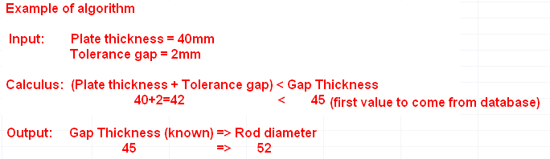

When the user creates the joint on plates, the system diameter will be influenced by the thickness of the plates; therefore, the option to choose the diameter is disabled. The diameter is calculated as follows:
