New Sketch Curve
Creates a smooth curve by drawing its shape, rather than working with edit points or CVs.

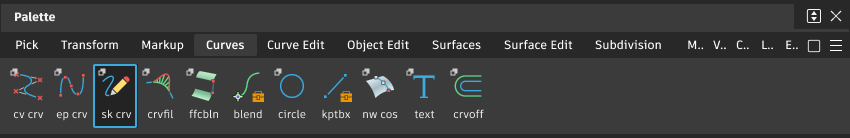

Access this tool from the Curves tool palette:
New Sketch Curve Options
Curve Degree
Choose from 1, 2, 3, 5 or 7.
Tolerance
Determines how closely the curve tries to mimic the cursor movement.
Maximum Spans
Together with the curve degree, determines the number of points that are laid down for the curve.
Pivot Position
Specifies the initial position of the curve's pivot points (both rotation and scaling).
Origin – The pivot points are located at (0, 0, 0).
First CV – The pivot points are located at the position of the first CV, that is, the start of the curve. This is the default.
Last CV – The pivot points are located at the position of the last CV, that is, the end of the curve.
Curve center – The pivot points are located in the middle of the curve, based on arc length. (This is the same position as Snap to Center in the Curve Snap Options box.)
Bounding box center – The pivot points are located at the center of the curve's bounding box.
