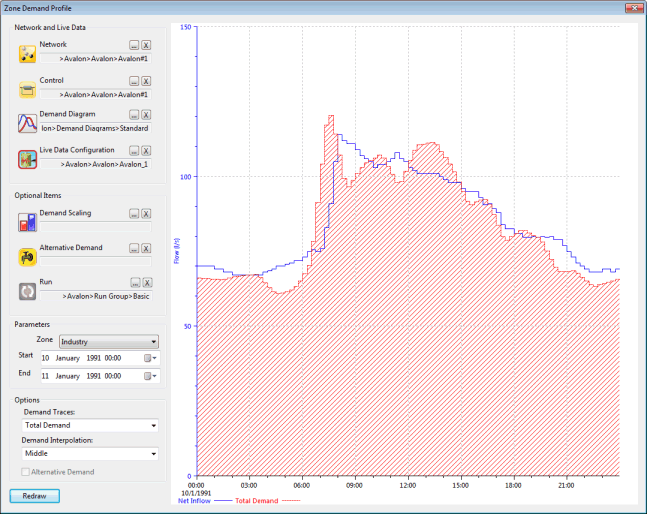

Zone Demand Profile dialog

Network and Live Data

You can drag and drop items into the selection boxes or browse for an item using the Browse button.

Required items:

• Network, control and demand diagram are required for calculating demand assigned to the network. Start and end times in the Parameters section of the dialog will be set from the control data interval.

  Note: Scaling coefficients entered in the Daily Coefficient and Monthly Coefficient grids in the demand diagram are not included when calculating network demand.

• Live data configuration is required for calculating net inflow to the zone from live data points.

Optional Items

You can drag and drop items into the selection boxes or browse for an item using the Browse button.

Optional items:

• Demand scaling - If a demand scaling is selected, the scaling will be applied to the calculation of demand assigned to the network.
• Alternative demand - If an alternative demand is selected, the network demand will be calculated using the alternative demand values by default.
• Run - If a run is selected, the items used in the run will be selected in the dialog. The start and end times in the Parameters section of the dialog will be set from the run start and end times.

Parameters

The zone to be graphed can be selected from the Parameters section.

Start and end times for the graph may be adjusted.

Options

Options for graphing network demand:

• Demand Traces - options to graph total network demand, or to separate out the most significant demand categories (those that contribute the largest average demand).
• Demand Interpolation - for selecting the point in each timestep where demand is calculated.
• Alternative Demand check box - enabled when an Alternative Demand item is selected in the Optional Items section. If checked, displays demand calculated from Alternative Demand data. If unchecked, displays network demand.
