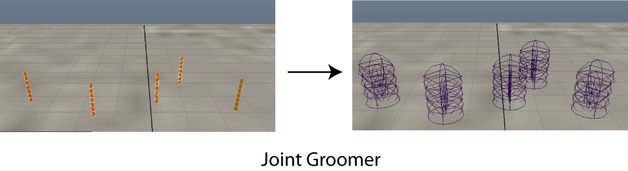

Use this utility to move guides using FK and spline IK.
- FK Joint Chain
-
When on, Maya creates a joint chain with the splines using Forward Kinematics.
- Spline IK Join Chain
-
When on, Maya creates a Spline Inverse Kinematic Joint chain.
- Lock Length
-
Locks curve length to prevent stretching between the CVs on the curves.
- Stretchy Curve
-
Allows stretching between the CVs on the curves.
- Number of Joint/CVs
-
Sets the number of joints per-CV on the curves.
- Selection
- Sets the selection mode when selecting the joint chain after it is created.
- 1st Cluster
- Selects the first joint cluster in the joint chain.
- Joint Hierarchy
- Selects all of the joint clusters in the joint chain.
