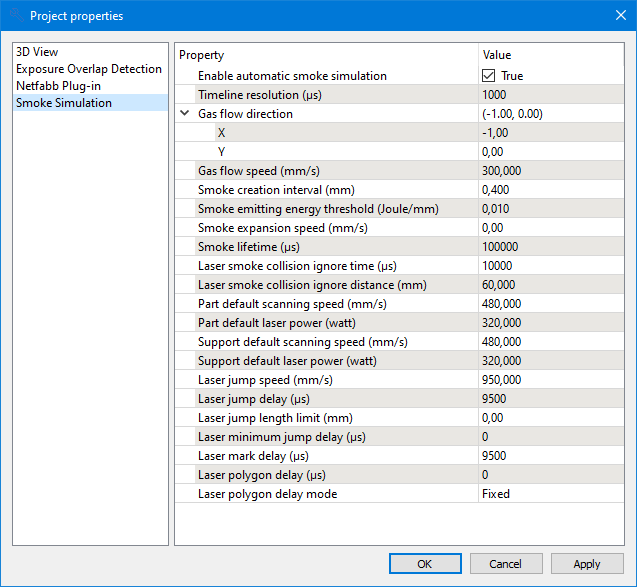

Enable smoke simulation
|
When enabled, then the smoke simulation is run as soon as hatching data is available in the exposure preview.
|
|
Timeline resolution
|
The length of a single time interval on the timeline available for inspection in the Smoke Simulation window
|
|
Gas flow direction
|
Direction of the gas flow in the build chamber. A 2D XY vector.
|
|
Gas flow speed
|
The speed of the gas flow in the build chamber
|
|
Smoke creation interval
|
Distance between successively created smoke circles along a toolpath
|
|
Smoke emitting energy threshold
|
Threshold of energy at which smoke is emitted along a toolpath
|
|
Smoke expansion speed
|
Speed of the expansion of a smoke circle
|
|
Smoke lifetime
|
How long a single smoke circle can exist
|
|
Laser smoke collision ignore time
|
Period (after smoke circle creation) when the collision of a laser with smoke circle is ignored
|
|
Laser smoke collision ignore distance
|
The distance a smoke circle can move after the creation collision with a laser registers
|
|
Part default scanning speed
|
Default scanning speed for toolpath of part. Used when toolpath laser parameter values are unavailable.
|
|
Part default laser power
|
Default laser power for toolpath of part. Used when toolpath laser parameter values are unavailable.
|
|
Support default scanning speed
|
Default scanning speed for toolpath of support. Used whenf toolpath laser parameter values are unavailable.
|
|
Support default laser power
|
Default laser power for toolpath of support. Used when toolpath laser parameter values are unavailable.
|
|
Laser jump speed
|
Jump motion speed at which the laser scanner hardware is repositioning to the next path start (while laser is off)
|
|
Laser jump delay
|
A delay at the end of each jump motion to compensate a lag of the laser scanner hardware
|
|
Laser jump length limit
|
Jump motion length above which the full jump delay is applied. Below this length the delay is interpolated between minimum jump delay and jump delay.
|
|
Laser minimum jump delay
|
At least this minimum delay is applied no matter how short the jump motion is.
|
|
Laser mark delay
|
A delay at the end of each exposure path to compensate a lag of the laser scanner hardware
|
|
Laser polygon delay
|
A delay on each point on a path (not start or end) where the path direction may change but the laser remains active
|
|
Laser polygon delay mode
|
Fixed or variable polygon delay. In the variable delay mode, the delay is scaled in relation to current angle: scale(a)=1-cos(a)
|
