- On the ribbon, click Home tab
Project panel Project Manager Project Setup.

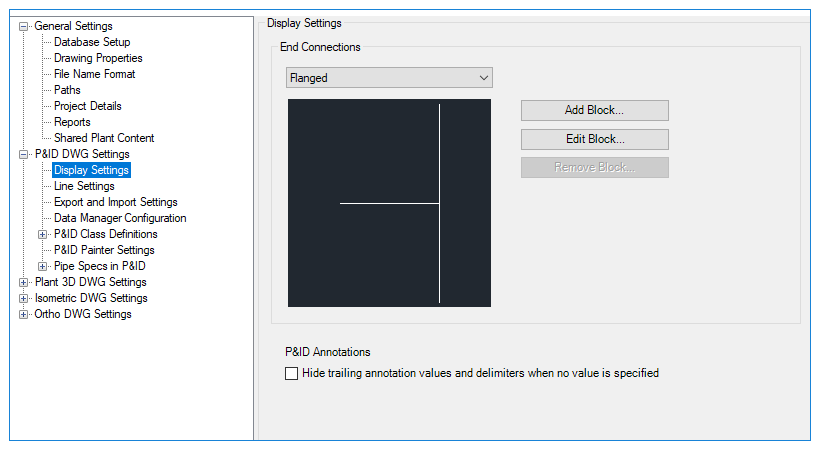

- In the Project Setup tree view, expand P&ID DWG Settings.
- Click Display Settings.
- On the End Connections pane, click Add Block.

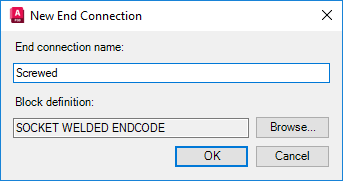

- In the New End Connection dialog box, enter a name for the new end connection.
- Click Browse.
- In the Select Block dialog box, locate and click a drawing that contains the block you want to use for the end connection symbol. Click Open.

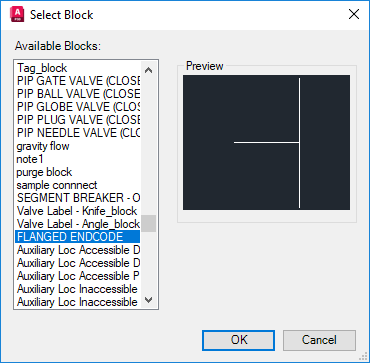

- In the Select Block dialog box, in the Available Blocks list, select a block to use for the end connection.
A preview image of the block you selected displays.
- Click OK.
- In the New End Connection dialog box, click OK.
