- In the Project Setup tree view, expand P&ID Class Definitions.
- Continue to expand the list until you find the valve or inline instrument to which you want to assign the end connection.

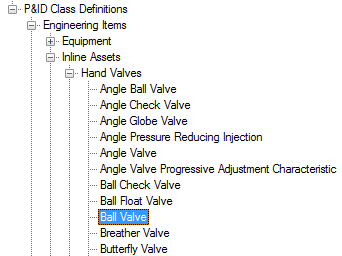

- Select a valve or inline instrument (for example:
Ball Valve).

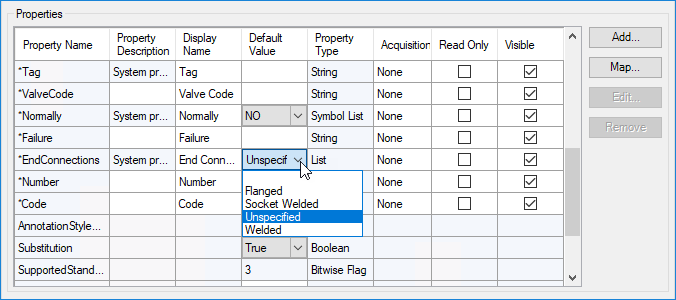

- On the Class Settings pane, under Properties, in the Property Name column, locate EndConnections.
- In the EndConnections Default Value drop-down list, click an end connection type.
- Click OK.
