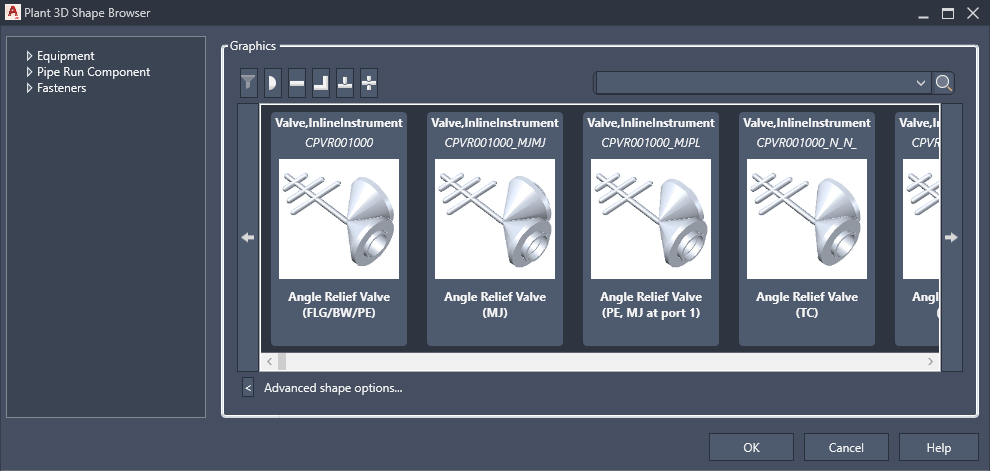

Plant 3D Shape Browser dialog box

Specifies a shape for a parametric component.

Access Methods

Ribbon: Home tab

Part Insertion panel

Custom Part

Shape Browser

After component creation, you can specify component dimensions in the properties palette.

Note: The Part Type displayed is based on the part selected in the Custom Parts Builder.

Graphics: Specifies a parametric shape for the component.
Advanced Shape Options: Displays all shapes. By default, only shapes in the current category display.
