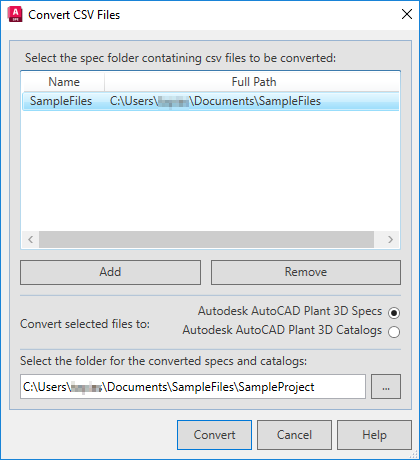

Converts an external spec or catalog for use in the AutoCAD Plant 3D toolset.
List of Options
- Select the Spec Folder Containing CSV Files to be Converted
- Lists the folders containing CSV files that you add for conversion.
- Add
- Adds a folder location to the list of folders containing CSV files for conversion.
- Remove
- Deletes folders from the list of folders containing CSV files for conversion.
- Convert Selected Files To
- Specifies whether the CSV files are to be converted to specs or catalogs.
- Select the Folder for the Converted Specs and Catalogs
- Specifies the output folder for the converted specs and catalogs.
