Electrode Setup Sheet Settings - example

This example uses an electrode template that includes a View option called Top view.

1. In the General Options page of the Electrode Wizard, select Generate Setup Sheet and click to display the Electrode Setup Sheet Control dialog.

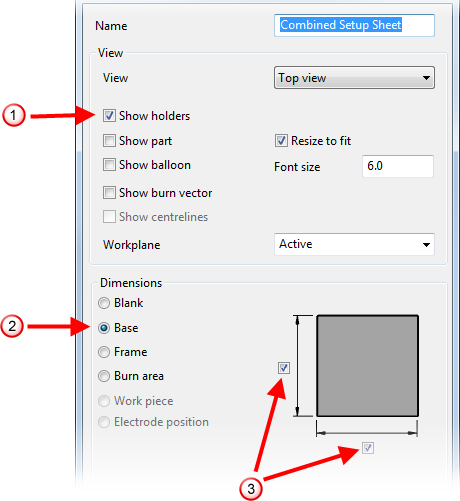

2. Select Combined Setup Sheet and click to display the Electrode Setup Sheet Settings dialog.
3. Select Top view from the View list. The following Dimensions options are available:
   • Blank
   • Base
   • Frame
   • Burn area
4. Select the items to display on the Setup Sheet .



5. Select a Dimension option .
6. Select the dimensions to display .
7. Click OK to close the Electrode Setup Sheet Settings dialog.
8. Click OK to close the Electrode Setup Sheet Control dialog.

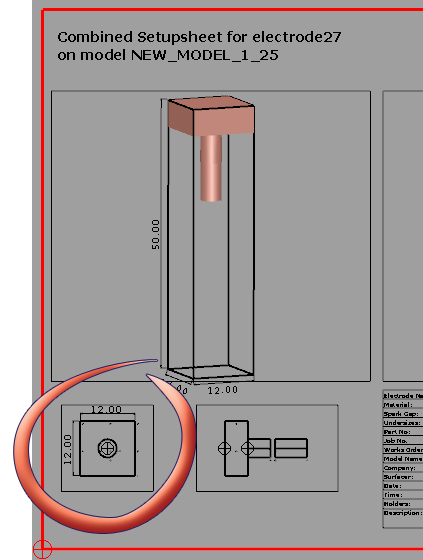

9. Click Next to proceed to the next step of the Electrode Wizard, or Finish to complete the wizard. The dimensions you selected are displayed on the Combined Setup Sheet.
