FbxNurbsCurve Class Reference

This reference page is linked to from the following overview topics:

---

#include <fbxnurbscurve.h>

Class Description

A Non-Uniform Rational B-Spline (NURBS) curve is a type of parametric geometry.

A NURBS curve is defined by the order, form, knot vector and control points.

Let M be the order of the curve. Let N be the number of control points of the curve.

The form of the curve can be open, closed or periodic. A curve with end points that do not meet is defined as an open curve. The number of knots in an open curve is defined as N+(M+1).

A closed curve simply has its last control point equal to its first control point. Note that this does not imply tangent continuity at the end point. The curve may have a kink at this point. In FBX the last control point is not specified by the user in the InitControlPoints() method. For example, if there are to be 10 control points in total, and the curve is to be closed, than only 9 control points need to be passed into the InitControlPoints() method. The last control point is implied to be equal to the first control point. Thus N represents the number of unique CVs.

A periodic curve has its last M control points equal to its first M control points. A periodic curve is tangent continuous at the ends. Similar to a closed curve, when creating a periodic curve, only the unique control points need to be set. For example a periodic curve of order 3 with 10 control points requires only 7 CVs to be specified in the InitControlPoints() method. The last 3 CVs, which are the same as the first 3, are not included.

The calculation of the number of knots in closed and periodic curves is more complex. Since we have excluded one CV in N in a closed curve, the number of knots is N+(M+1)+1. Similarly, we excluded M CVs in periodic curves so the number of knots is N+(M+1)+M.

Note that FBX stores one extra knot at the beginning and and end of the knot vector, compared to some other graphics applications such as Maya. The two knots are not used in calculation, but they are included so that no data is lost when converting from file formats that do store the extra knots.

Definition at line 60 of file fbxnurbscurve.h.

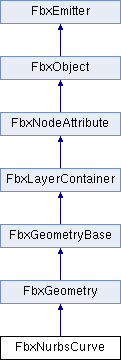

Inheritance diagram for FbxNurbsCurve:

Public Types
enum	EDimension { e2D = 2, e3D }
	The dimension of the CVs. More...
enum	EType { eOpen, eClosed, ePeriodic }
	The curve's form. More...
Public Types inherited from FbxGeometry
enum	ESurfaceMode {   eRaw, eLowNoNormals, eLow, eHighNoNormals,   eHigh }
	NURBS and Patches surface modes. More...
Public Types inherited from FbxNodeAttribute
enum	EType {   eUnknown, eNull, eMarker, eSkeleton,   eMesh, eNurbs, ePatch, eCamera,   eCameraStereo, eCameraSwitcher, eLight, eOpticalReference,   eOpticalMarker, eNurbsCurve, eTrimNurbsSurface, eBoundary,   eNurbsSurface, eShape, eLODGroup, eSubDiv,   eCachedEffect, eLine }
	Node attribute types. More...
Public Types inherited from FbxObject
enum	EObjectFlag {   eNone = 0, eInitialized = 1 << 0, eSystem = 1 << 1, eSavable = 1 << 2,   eSelected = 1 << 3, eHidden = 1 << 4, eContentLoaded = 1 << 5, eDontLocalize = 1 << 6,   eCopyCalledByClone = 1 << 16 }
	Flags available to control objects. More...
enum	ECloneType { eDeepClone, eReferenceClone }
	Types of clones that can be created for FbxObject. More...

Public Member Functions
virtual FbxNodeAttribute::EType	GetAttributeType () const
	Returns the EType::eNurbsCurve node attribute type. More...
void	InitControlPoints (int pCount, EType pVType)
	Allocates memory space for the control points array as well as for the knot vector. More...
double *	GetKnotVector () const
	Returns the knot vector. More...
int	GetKnotCount () const
	Returns the number of elements in the knot vector. More...
void	SetOrder (int pOrder)
	Sets the order of the curve. More...
int	GetOrder () const
	Returns the NURBS curve order. More...
void	SetStep (int pStep)
	Sets the step of the curve. More...
int	GetStep () const
	Returns the NURBS curve step. More...
void	SetDimension (EDimension pDimension)
	Sets the dimension of the CVs. More...
EDimension	GetDimension () const
	Returns the control points dimension. More...
bool	IsRational ()
	Determines if the curve is rational or not. More...
int	GetSpanCount () const
	Calculates the number of curve spans with the following: Where S = Number of spans N = Number of CVs M = Order of the curve. More...
EType	GetType () const
	Returns NURBS type. More...
bool	IsPolyline () const
	Checks if the curve is a poly line. More...
bool	IsBezier () const
	This function determines if this NURBS curve is a Bezier curve. More...
int	TessellateCurve (FbxArray< FbxVector4 > &pPointArray, int pStep=16)
	Evaluate the point on the curve. More...
FbxLine *	TessellateCurve (int pStep=16)
	Evaluate the point on the curve. More...
Public Member Functions inherited from FbxGeometry
int	AddDeformer (FbxDeformer *pDeformer)
	Adds a deformer to this geometry (as mentioned in the description of this class, adding a deformer is a synonym for "connect a deformer"). More...
FbxDeformer *	RemoveDeformer (int pIndex, FbxStatus *pStatus=NULL)
	Remove a deformer. More...
int	GetDeformerCount () const
	Returns the number of deformers. More...
FbxDeformer *	GetDeformer (int pIndex, FbxStatus *pStatus=NULL) const
	Returns the deformer at the specified index. More...
int	GetDeformerCount (FbxDeformer::EDeformerType pType) const
	Returns the number of deformers of a specified type. More...
FbxDeformer *	GetDeformer (int pIndex, FbxDeformer::EDeformerType pType, FbxStatus *pStatus=NULL) const
	Returns the deformer of a specified type at the specified index. More...
FbxGeometryWeightedMap *	GetSourceGeometryWeightedMap ()
	Returns the source geometry weighted map that is connected to this geometry. More...
int	GetDestinationGeometryWeightedMapCount () const
	Returns the number of destination geometry weighted map(s) that are connected to this geometry. More...
FbxGeometryWeightedMap *	GetDestinationGeometryWeightedMap (int pIndex)
	Returns the destination geometry weighted map at a specified index. More...
bool	AddShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, FbxShape *pShape, double pPercent=100, FbxStatus *pStatus=NULL)
	Add a shape to the specified blend shape deformer and blend shape channel of this geometry. More...
void	ClearShape ()
	Removes all the shapes without destroying them. More...
int	GetShapeCount () const
	Returns the number of shapes. More...
int	GetShapeCount (int pBlendShapeIndex, int pBlendShapeChannelIndex, FbxStatus *pStatus=NULL) const
	Returns the number of shapes. More...
FbxShape *	GetShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, int pShapeIndex, FbxStatus *pStatus=NULL)
	Returns the shape found at the specified index on a blend shape channel of a blend shape deformer. More...
const FbxShape *	GetShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, int pShapeIndex, FbxStatus *pStatus=NULL) const
	Returns the shape found at the specified index on a blend shape channel of a blend shape deformer. More...
FbxAnimCurve *	GetShapeChannel (int pBlendShapeIndex, int pBlendShapeChannelIndex, FbxAnimLayer *pLayer, bool pCreateAsNeeded=false, FbxStatus *pStatus=NULL)
	Get the shape animation curve. More...
FbxAMatrix &	GetPivot (FbxAMatrix &pXMatrix) const
	Returns the pivot matrix. More...
void	SetPivot (FbxAMatrix &pXMatrix)
	Sets the pivot matrix. More...
void	ApplyPivot ()
	Applies the pivot matrix to all vertices/normals of the geometry. More...
void	SetDefaultShape (int pBlendShapeIndex, int pBlendShapeChannelIndex, double pPercent)
	Sets the default deformation for a specified shape. More...
void	SetDefaultShape (FbxBlendShapeChannel *pBlendShapeChannel, double pPercent)
	Sets the default deformation for a specified channel. More...
double	GetDefaultShape (int pBlendShapeIndex, int pBlendShapeChannelIndex) const
	Returns the default deformation value for the specified shape. More...
double	GetDefaultShape (FbxBlendShapeChannel *pBlendShapeChannel) const
	Returns the default deformation value for the specified channel. More...
Public Member Functions inherited from FbxGeometryBase
virtual int	MemoryUsage () const
	Calculate the actual amount of memory used by this geometry object. More...
virtual void	InitControlPoints (int pCount)
	Allocates memory space for the array of control points. More...
void	InitNormals (int pCount=0)
	Allocates memory space for the array of normals. More...
void	InitNormals (FbxGeometryBase *pSrc)
	Allocates memory space for the array of normals cloned from the pSrc. More...
void	InitTangents (int pCount=0, const int pLayerIndex=0, const char *pName="")
	Allocates memory space for the array of tangents on specified layer. More...
void	InitTangents (FbxGeometryBase *pSrc, const int pLayerIndex=0)
	Allocates memory space for the array of tangents cloned from the pSrc on the specified layer. More...
void	InitBinormals (int pCount=0, const int pLayerIndex=0, const char *pName="")
	Allocates memory space for the array of binormals. More...
void	InitBinormals (FbxGeometryBase *pSrc, const int pLayerIndex=0)
	Allocates memory space for the array of binormals cloned from the pSrc. More...
virtual void	SetControlPointAt (const FbxVector4 &pCtrlPoint, const FbxVector4 &pNormal, int pIndex, bool pI2DSearch=false)
	Sets the control point and the normal values at the specified index. More...
virtual void	SetControlPointAt (const FbxVector4 &pCtrlPoint, int pIndex)
	Sets the control point at a specified index. More...
virtual FbxVector4	GetControlPointAt (int pIndex) const
	Gets the control point at the specified index. More...
virtual void	SetControlPointNormalAt (const FbxVector4 &pNormal, int pIndex, bool pI2DSearch=false)
	Sets the control point normal value at the specified index. More...
virtual int	GetControlPointsCount () const
	Returns the number of control points. More...
virtual FbxVector4 *	GetControlPoints (FbxStatus *pStatus=NULL) const
	Returns a pointer to the array of control points. More...
virtual void	SetControlPointCount (int pCount)
	Allocates memory space for the array of control points. More...
void	ComputeBBox ()
	Computes the control points Bounding box. More...
FbxGeometryElementNormal *	CreateElementNormal ()
	Creates a normal geometry element for this geometry. More...
bool	RemoveElementNormal (FbxGeometryElementNormal *pElementNormal)
	Remove the normal geometry element from this geometry. More...
FbxGeometryElementNormal *	GetElementNormal (int pIndex=0)
	Returns this geometry's normal element. More...
const FbxGeometryElementNormal *	GetElementNormal (int pIndex=0) const
	Returns this geometry's normal element. More...
int	GetElementNormalCount () const
	Get the number of this geometry's normal geometry element. More...
FbxGeometryElementBinormal *	CreateElementBinormal ()
	Creates a binormal geometry element for this geometry. More...
bool	RemoveElementBinormal (FbxGeometryElementBinormal *pElementBinormal)
	Remove the binormal geometry element from this geometry. More...
FbxGeometryElementBinormal *	GetElementBinormal (int pIndex=0)
	Returns this geometry's binormal element. More...
const FbxGeometryElementBinormal *	GetElementBinormal (int pIndex=0) const
	Returns this geometry's binormal element. More...
int	GetElementBinormalCount () const
	Get the number of this geometry's binormal geometry element. More...
FbxGeometryElementTangent *	CreateElementTangent ()
	Creates a tangent geometry element for this geometry. More...
bool	RemoveElementTangent (FbxGeometryElementTangent *pElementTangent)
	Remove the tangent geometry element from this geometry. More...
FbxGeometryElementTangent *	GetElementTangent (int pIndex=0)
	Returns this geometry's tangent element. More...
const FbxGeometryElementTangent *	GetElementTangent (int pIndex=0) const
	Returns this geometry's tangent element. More...
int	GetElementTangentCount () const
	Get the number of this geometry's tangent geometry element. More...
FbxGeometryElementMaterial *	CreateElementMaterial ()
	Creates a material geometry element for this geometry. More...
bool	RemoveElementMaterial (FbxGeometryElementMaterial *pElementMaterial)
	Remove the material geometry element from this geometry. More...
FbxGeometryElementMaterial *	GetElementMaterial (int pIndex=0)
	Returns this geometry's material element. More...
const FbxGeometryElementMaterial *	GetElementMaterial (int pIndex=0) const
	Returns this geometry's material element. More...
int	GetElementMaterialCount () const
	Get the number of this geometry's material geometry element. More...
FbxGeometryElementPolygonGroup *	CreateElementPolygonGroup ()
	Creates a polygon group geometry element for this geometry. More...
bool	RemoveElementPolygonGroup (FbxGeometryElementPolygonGroup *pElementPolygonGroup)
	Remove the polygon group geometry element from this geometry. More...
FbxGeometryElementPolygonGroup *	GetElementPolygonGroup (int pIndex=0)
	Returns this geometry's polygon group element. More...
const FbxGeometryElementPolygonGroup *	GetElementPolygonGroup (int pIndex=0) const
	Returns this geometry's polygon group element. More...
int	GetElementPolygonGroupCount () const
	Get the number of this geometry's polygon group geometry element. More...
FbxGeometryElementVertexColor *	CreateElementVertexColor ()
	Creates a vertex color geometry element for this geometry. More...
bool	RemoveElementVertexColor (FbxGeometryElementVertexColor *pElementVertexColor)
	Remove the vertex color geometry element from this geometry. More...
FbxGeometryElementVertexColor *	GetElementVertexColor (int pIndex=0)
	Returns this geometry's vertex color element. More...
const FbxGeometryElementVertexColor *	GetElementVertexColor (int pIndex=0) const
	Returns this geometry's vertex color element. More...
int	GetElementVertexColorCount () const
	Get the number of this geometry's vertex color geometry element. More...
FbxGeometryElementSmoothing *	CreateElementSmoothing ()
	Creates a smoothing geometry element for this geometry. More...
bool	RemoveElementSmoothing (FbxGeometryElementSmoothing *pElementSmoothing)
	Remove the smoothing geometry element from this geometry. More...
FbxGeometryElementSmoothing *	GetElementSmoothing (int pIndex=0)
	Returns this geometry's smoothing element. More...
const FbxGeometryElementSmoothing *	GetElementSmoothing (int pIndex=0) const
	Returns this geometry's smoothing element. More...
int	GetElementSmoothingCount () const
	Get the number of this geometry's smoothing geometry element. More...
FbxGeometryElementCrease *	CreateElementVertexCrease ()
	Creates a vertex crease geometry element for this geometry. More...
bool	RemoveElementVertexCrease (FbxGeometryElementCrease *pElementCrease)
	Remove the vertex crease geometry element from this geometry. More...
FbxGeometryElementCrease *	GetElementVertexCrease (int pIndex=0)
	Returns this geometry's vertex crease element. More...
const FbxGeometryElementCrease *	GetElementVertexCrease (int pIndex=0) const
	Returns this geometry's vertex crease element. More...
int	GetElementVertexCreaseCount () const
	Get the number of this geometry's vertex crease geometry element. More...
FbxGeometryElementCrease *	CreateElementEdgeCrease ()
	Creates an edge crease geometry element for this geometry. More...
bool	RemoveElementEdgeCrease (FbxGeometryElementCrease *pElementCrease)
	Remove the edge crease geometry element from this geometry. More...
FbxGeometryElementCrease *	GetElementEdgeCrease (int pIndex=0)
	Returns this geometry's edge crease element. More...
const FbxGeometryElementCrease *	GetElementEdgeCrease (int pIndex=0) const
	Returns this geometry's edge crease element. More...
int	GetElementEdgeCreaseCount () const
	Get the number of this geometry's edge crease geometry element. More...
FbxGeometryElementHole *	CreateElementHole ()
	Creates a hole geometry element for this geometry. More...
bool	RemoveElementHole (FbxGeometryElementHole *pElementHole)
	Remove the hole geometry element from this geometry. More...
FbxGeometryElementHole *	GetElementHole (int pIndex=0)
	Returns this geometry's hole element. More...
const FbxGeometryElementHole *	GetElementHole (int pIndex=0) const
	Returns this geometry's hole element. More...
int	GetElementHoleCount () const
	Get the number of this geometry's hole geometry element. More...
FbxGeometryElementUserData *	CreateElementUserData ()
	Creates a user data geometry element for this geometry. More...
bool	RemoveElementUserData (FbxGeometryElementUserData *pElementUserData)
	Remove the user data geometry element from this geometry. More...
FbxGeometryElementUserData *	GetElementUserData (int pIndex=0)
	Returns this geometry's user data element. More...
const FbxGeometryElementUserData *	GetElementUserData (int pIndex=0) const
	Returns this geometry's user data element. More...
int	GetElementUserDataCount () const
	Get the number of this geometry's user data geometry element. More...
FbxGeometryElementVisibility *	CreateElementVisibility ()
	Creates a visibility geometry element for this geometry. More...
bool	RemoveElementVisibility (FbxGeometryElementVisibility *pElementVisibility)
	Remove the visibility geometry element from this geometry. More...
FbxGeometryElementVisibility *	GetElementVisibility (int pIndex=0)
	Returns this geometry's visibility element. More...
const FbxGeometryElementVisibility *	GetElementVisibility (int pIndex=0) const
	Returns this geometry's visibility element. More...
int	GetElementVisibilityCount () const
	Get the number of this geometry's visibility geometry element. More...
FbxGeometryElementUV *	CreateElementUV (const char *pUVSetName, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eTextureDiffuse)
	Creates a UV geometry element for this geometry. More...
bool	RemoveElementUV (FbxGeometryElementUV *pElementUV)
	Remove the UV geometry element from this geometry. More...
FbxGeometryElementUV *	GetElementUV (int pIndex=0, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown)
	Returns this geometry's UV element. More...
const FbxGeometryElementUV *	GetElementUV (int pIndex=0, FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown) const
	Returns this geometry's UV element. More...
int	GetElementUVCount (FbxLayerElement::EType pTypeIdentifier=FbxLayerElement::eUnknown) const
	Get the number of this geometry's UV geometry element. More...
FbxGeometryElementUV *	GetElementUV (const char *pUVSetName)
	Returns this geometry's UV element. More...
const FbxGeometryElementUV *	GetElementUV (const char *pUVSetName) const
	Returns this geometry's UV element. More...
void	GetUVSetNames (FbxStringList &pUVSetNameList) const
	Returns this geometry's all UV set names. More...
virtual bool	ContentWriteTo (FbxStream &pStream) const
	Writes the content of the geometry object to the specified stream. More...
virtual bool	ContentReadFrom (const FbxStream &pStream)
	Reads the content of the geometry object from the specified stream. More...
Public Member Functions inherited from FbxLayerContainer
bool	ConvertDirectToIndexToDirect (int pLayer)
	Converts the reference mode from eDirect to eIndexToDirect. More...
int	CreateLayer ()
	Creates a new layer on top of existing layers. More...
void	ClearLayers ()
	Deletes all layers. More...
int	GetLayerCount () const
	Returns the number of layers. More...
int	GetLayerCount (FbxLayerElement::EType pType, bool pUVCount=false) const
	Returns the number of layers that contain the specified layer element type. More...
FbxLayer *	GetLayer (int pIndex)
	Returns the layer at the specified index. More...
const FbxLayer *	GetLayer (int pIndex) const
	Returns the layer at the specified index. More...
FbxLayer *	GetLayer (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false)
	Returns the n'th layer as specified by pIndex that contains the specified layer element type. More...
const FbxLayer *	GetLayer (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false) const
	Returns the n'th layer as specified by pIndex that contains the specified layer element type. More...
int	GetLayerIndex (int pIndex, FbxLayerElement::EType pType, bool pIsUV=false) const
	Returns the global index of the n'th layer as specified by pIndex that contains the specified layer element type. More...
int	GetLayerTypedIndex (int pGlobalIndex, FbxLayerElement::EType pType, bool pIsUV=false) const
	Converts the layer's global index to a type-specific index. More...
Public Member Functions inherited from FbxNodeAttribute
int	GetNodeCount () const
	Return the node count using this attribute. More...
FbxNode *	GetNode (int pIndex=0) const
	Return the node this attribute is set to. More...
Public Member Functions inherited from FbxObject
virtual void	Compact ()
	Compact the memory used by this object. More...
FBX_DEPRECATED bool	Is (const FbxClassId &pClassId) const
	Test if this class is a hierarchical children of the specified class type. More...
template<class T >
bool	Is () const
	Templated test if this class is a hierarchical children of the specified class type. More...
FbxManager *	GetFbxManager () const
	Retrieve the FbxManager this object belongs to. More...
FbxDocument *	GetDocument () const
	Returns a const pointer to the document that contains this object. More...
FbxDocument *	GetRootDocument () const
	Returns a const pointer to the root document that contains this object. More...
FbxScene *	GetScene () const
	Returns a const pointer to the scene that contains this object. More...
void	Destroy (bool pRecursive=false)
	Unregister and delete this object from memory. More...
void	ResetProperties ()
	Reset all the properties of this object to their default values. More...
virtual bool	GetSelected ()
	Returns if this object is currently in a selected state. More...
virtual void	SetSelected (bool pSelected)
	Sets whether this object is currently selected. More...
void	SetUserDataPtr (const FbxUInt64 &pUserID, void *pUserData)
	Sets the data pointer for an user data record whose ID is pUserID. More...
void *	GetUserDataPtr (const FbxUInt64 &pUserID) const
	Returns the data pointer of an user data record whose ID is pUserID. More...
void	SetUserDataPtr (void *pUserData)
	Sets the data pointer for the user data record whose ID is the object ID. More...
void *	GetUserDataPtr () const
	Returns the data pointer of the user data record whose ID is the object ID. More...
bool	ConnectSrcObject (FbxObject *pObject, FbxConnection::EType pType=FbxConnection::eNone)
	Connects this object to a source object. More...
bool	IsConnectedSrcObject (const FbxObject *pObject) const
	Judges whether this object connects with the source object. More...
bool	DisconnectSrcObject (FbxObject *pObject)
	Disconnects this object from a source object. More...
bool	DisconnectAllSrcObject ()
	Disconnects this object from all source objects. More...
bool	DisconnectAllSrcObject (const FbxCriteria &pCriteria)
	Disconnects this object from all source objects that satisfy a given criteria. More...
FBX_DEPRECATED bool	DisconnectAllSrcObject (FbxClassId pClassId)
	Disconnects this object from all source objects of a specific class type. More...
int	GetSrcObjectCount () const
	Returns the number of source objects with which this object connects. More...
int	GetSrcObjectCount (const FbxCriteria &pCriteria) const
	Returns the number of source objects that satisfy the given criteria with which this object connects. More...
FBX_DEPRECATED int	GetSrcObjectCount (FbxClassId pClassId) const
	Returns the number of source objects of the specific class type with which this object connects. More...
FbxObject *	GetSrcObject (int pIndex=0) const
	Returns the source object with which this object connects at the specified index. More...
FbxObject *	GetSrcObject (const FbxCriteria &pCriteria, int pIndex=0) const
	Returns the source object that satisfies the criteria at the specified index with which this object connects. More...
FBX_DEPRECATED FbxObject *	GetSrcObject (FbxClassId pClassId, int pIndex=0) const
	Returns the source object of the specified class type at the specified index with which this object connects. More...
FbxObject *	FindSrcObject (const char *pName, int pStartIndex=0) const
	Searches the source object with the specified name, starting at the specified index. More...
FbxObject *	FindSrcObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const
	Searches the source object with the specified name which satisfies the given criteria, starting at the specified index. More...
FBX_DEPRECATED FbxObject *	FindSrcObject (FbxClassId pClassId, const char *pName, int pStartIndex=0) const
	Searches the source object with the specified name which is also the specified class type, starting at the specified index. More...
template<class T >
bool	DisconnectAllSrcObject ()
	Disconnects this object from all source objects of the specified class type. More...
template<class T >
bool	DisconnectAllSrcObject (const FbxCriteria &pCriteria)
	Disconnects this object from all source objects that are of the specified class type and that satisfy the given criteria. More...
template<class T >
int	GetSrcObjectCount () const
	Returns the number of source objects of a specific class type with which this object connects. More...
template<class T >
int	GetSrcObjectCount (const FbxCriteria &pCriteria) const
	Returns the number of source objects with which this object connects that are the specified class type and that satisfy the given criteria. More...
template<class T >
T *	GetSrcObject (int pIndex=0) const
	Returns the source object of the specified class type at the specified index. More...
template<class T >
T *	GetSrcObject (const FbxCriteria &pCriteria, int pIndex=0) const
	Returns the source object that is the specified class type and that satisfies the given criteria at the specified index. More...
template<class T >
T *	FindSrcObject (const char *pName, int pStartIndex=0) const
	Searches the source object with the specified name that is the specified class type, starting at the specified index. More...
template<class T >
T *	FindSrcObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const
	Searches the source object with the specified name that is the specified class type and that satisfies the given criteria, starting at the specified index. More...
bool	ConnectDstObject (FbxObject *pObject, FbxConnection::EType pType=FbxConnection::eNone)
	Connects this object to one destination object. More...
bool	IsConnectedDstObject (const FbxObject *pObject) const
	Judges whether this object connects with the destination object. More...
bool	DisconnectDstObject (FbxObject *pObject)
	Disconnects this object from the destination object. More...
bool	DisconnectAllDstObject ()
	Disconnects this object from all destination objects. More...
bool	DisconnectAllDstObject (const FbxCriteria &pCriteria)
	Disconnects this object from all destination objects that satisfy given criteria. More...
FBX_DEPRECATED bool	DisconnectAllDstObject (FbxClassId pClassId)
	Disconnects this object from all destination objects of the specified class type. More...
int	GetDstObjectCount () const
	Returns the number of destination objects with which this object connects. More...
int	GetDstObjectCount (const FbxCriteria &pCriteria) const
	Returns the number of destination objects with which this object connects that satisfy the given criteria. More...
FBX_DEPRECATED int	GetDstObjectCount (FbxClassId pClassId) const
	Returns the number of destination objects of the specified class type with which this object connects. More...
FbxObject *	GetDstObject (int pIndex=0) const
	Returns the destination object at the specified index with which this object connects. More...
FbxObject *	GetDstObject (const FbxCriteria &pCriteria, int pIndex=0) const
	Returns the destination object with which this object connects that satisfies the given criteria at the specified index. More...
FBX_DEPRECATED FbxObject *	GetDstObject (FbxClassId pClassId, int pIndex=0) const
	Returns the destination object of the specified class type with which this object connects at the specified index. More...
FbxObject *	FindDstObject (const char *pName, int pStartIndex=0) const
	Searches the destination object with the specified name, starting at the specified index. More...
FbxObject *	FindDstObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const
	Searches the destination object with the specified name which satisfies the given criteria, starting at the specified index. More...
FBX_DEPRECATED FbxObject *	FindDstObject (FbxClassId pClassId, const char *pName, int pStartIndex=0) const
	Searches the destination object with the specified name which is the specified class type, starting at the specified index. More...
template<class T >
bool	DisconnectAllDstObject ()
	Disconnects this object from all destination objects of the specified class type. More...
template<class T >
bool	DisconnectAllDstObject (const FbxCriteria &pCriteria)
	Disconnects this object from all destination objects that are the specified class type and that satisfy the given criteria. More...
template<class T >
int	GetDstObjectCount () const
	Returns the number of destination objects of the specified class type with which this object connects. More...
template<class T >
int	GetDstObjectCount (const FbxCriteria &pCriteria) const
	Returns the number of destination objects with which this object connects that are the specified class type and that satisfy the given criteria. More...
template<class T >
T *	GetDstObject (int pIndex=0) const
	Returns the destination object with which this object connects that is the specified class type at the specified index. More...
template<class T >
T *	GetDstObject (const FbxCriteria &pCriteria, int pIndex=0) const
	Returns the destination object with which this object connects that is the specified class type and that satisfies the given criteria at the specified index. More...
template<class T >
T *	FindDstObject (const char *pName, int pStartIndex=0) const
	Searches the destination object with the specified name which is of the specified class type, starting at the specified index. More...
template<class T >
T *	FindDstObject (const FbxCriteria &pCriteria, const char *pName, int pStartIndex=0) const
	Searches the destination object with the specified name that is the specified class type and that satisfies the given criteria, starting at the specified index. More...
FbxProperty	GetFirstProperty () const
	Returns the first property of this object. More...
FbxProperty	GetNextProperty (const FbxProperty &pProperty) const
	Returns the next property of this object that follows the specified property. More...
FbxProperty	FindProperty (const char *pName, bool pCaseSensitive=true) const
	Searches a property by name. More...
FbxProperty	FindProperty (const char *pName, const FbxDataType &pDataType, bool pCaseSensitive=true) const
	Searches a property by name and data type. More...
FbxProperty	FindPropertyHierarchical (const char *pName, bool pCaseSensitive=true) const
	Searches a property by full name. More...
FbxProperty	FindPropertyHierarchical (const char *pName, const FbxDataType &pDataType, bool pCaseSensitive=true) const
	Searches a property by full name and data type. More...
FbxProperty	GetClassRootProperty ()
	Returns the class root property. More...
bool	ConnectSrcProperty (const FbxProperty &pProperty)
	Connects this object to a source property. More...
bool	IsConnectedSrcProperty (const FbxProperty &pProperty)
	Determines whether this object connects with the specified source property. More...
bool	DisconnectSrcProperty (const FbxProperty &pProperty)
	Disconnects this object from the specified source property. More...
int	GetSrcPropertyCount () const
	Returns the number of source properties with which this object connects. More...
FbxProperty	GetSrcProperty (int pIndex=0) const
	Returns the source property at the specified index with which this object connects. More...
FbxProperty	FindSrcProperty (const char *pName, int pStartIndex=0) const
	Searches a source property with which this object connects that has a specific name, starting at the specified index. More...
bool	ConnectDstProperty (const FbxProperty &pProperty)
	Connects this object to a destination property. More...
bool	IsConnectedDstProperty (const FbxProperty &pProperty)
	Determines if this object connects with the specified destination property. More...
bool	DisconnectDstProperty (const FbxProperty &pProperty)
	Disconnects this object from the specified destination property. More...
int	GetDstPropertyCount () const
	Returns the number of destination properties with which this object connects. More...
FbxProperty	GetDstProperty (int pIndex=0) const
	Returns the destination property at the specified index with which this object connects. More...
FbxProperty	FindDstProperty (const char *pName, int pStartIndex=0) const
	Searches a destination property with which this object connects that has a specific name, starting at the specified index. More...
int	ContentUnload ()
	Unloads this object's content using the offload peripheral that is currently set in the document then flushes it from memory. More...
int	ContentLoad ()
	Loads this object's content using the offload peripheral that is currently set in the document. More...
bool	ContentIsLoaded () const
	Judges if this object's content is loaded. More...
void	ContentDecrementLockCount ()
	Decreases the content lock count of an object. More...
void	ContentIncrementLockCount ()
	Increases the content lock count of an object. More...
bool	ContentIsLocked () const
	Judges if this object's content is locked. More...
void	EmitMessage (FbxMessage *pMessage) const
	Emits a message in all available message emitters in the document or SDK manager. More...
virtual const char *	Localize (const char *pID, const char *pDefault=NULL) const
	Localization helper function, it calls the implementation of FBX SDK manager. More...
FbxLibrary *	GetParentLibrary () const
	Returns a handle on the parent library of this object. More...
bool	AddImplementation (FbxImplementation *pImplementation)
	Adds an implementation. More...
bool	RemoveImplementation (FbxImplementation *pImplementation)
	Removes an implementation. More...
bool	HasDefaultImplementation (void) const
	Determines if this shading node has a default implementation. More...
FbxImplementation *	GetDefaultImplementation (void) const
	Returns the default implementation of this shading node. More...
bool	SetDefaultImplementation (FbxImplementation *pImplementation)
	Sets the default implementation of this shading node. More...
int	GetImplementationCount (const FbxImplementationFilter *pCriteria=NULL) const
	Returns the number of implementations that satisfy a given criteria. More...
FbxImplementation *	GetImplementation (int pIndex, const FbxImplementationFilter *pCriteria=NULL) const
	Returns the implementation at the specified index that satisfies the given criteria. More...
virtual FbxString	GetUrl () const
	Returns the URL of this object. More...
virtual bool	SetUrl (char *pUrl)
	Sets the URL of this object. More...
void	SetRuntimeClassId (const FbxClassId &pClassId)
	Set the run-time ClassId for this class. More...
FbxClassId	GetRuntimeClassId () const
	Retrieve the run-time ClassId for this object. More...
bool	IsRuntime (const FbxClassId &pClassId) const
	Test if this class is a hierarchical children of the specified class type. More...
bool	IsRuntimePlug () const
	Find out if the ClassId was registered during run-time rather than at compile time. More...
void	SetObjectFlags (EObjectFlag pFlags, bool pValue)
	Set the state of object flags. More...
bool	GetObjectFlags (EObjectFlag pFlags) const
	Get the state of object flags. More...
void	SetAllObjectFlags (FbxUInt pFlags)
	Override all object flags at once. More...
FbxUInt	GetAllObjectFlags () const
	Get all object flags at once. More...
virtual FbxObject &	Copy (const FbxObject &pObject)
	Copy an object content into this object. More...
virtual FbxObject *	Clone (FbxObject::ECloneType pCloneType=eDeepClone, FbxObject *pContainer=NULL, void *pSet=NULL) const
	Creates a clone of this object. More...
bool	IsAReferenceTo () const
	Checks if this object is a reference clone of another object. More...
FbxObject *	GetReferenceTo () const
	If this object is a reference clone, returns the original object (from which the clone originates). More...
bool	IsReferencedBy () const
	Checks if any objects are reference cloned from this object. More...
int	GetReferencedByCount () const
	Returns the number of objects that are reference clones of this object. More...
FbxObject *	GetReferencedBy (int pIndex) const
	Returns a reference clone of this object at the specified index. More...
void	SetName (const char *pName)
	Sets the name of this object. More...
const char *	GetName () const
	Returns the full name of this object. More...
FbxString	GetNameWithoutNameSpacePrefix () const
	Returns the name of the object without the namespace qualifier. More...
FbxString	GetNameWithNameSpacePrefix () const
	Returns the name of the object with the namespace qualifier. More...
void	SetInitialName (const char *pName)
	Sets the initial name of the object. More...
const char *	GetInitialName () const
	Returns the initial name of the object. More...
FbxString	GetNameSpaceOnly ()
	Returns the namespace of the object. More...
void	SetNameSpace (FbxString pNameSpace)
	Sets the namespace of the object. More...
FbxArray< FbxString * >	GetNameSpaceArray (char identifier)
	Returns an array of all the namespaces for this object. More...
FbxString	GetNameOnly () const
	Returns only the name (no namespace or prefix) of the object. More...
FbxString	GetNameSpacePrefix () const
	Returns the namespace qualifier. More...
const FbxUInt64 &	GetUniqueID () const
	Returns the unique ID of this object. More...
Public Member Functions inherited from FbxEmitter
void	AddListener (FbxEventHandler &pHandler)
	Add the specified event handler to current emitter list. More...
void	RemoveListener (FbxEventHandler &pHandler)
	Remove the specified event handler from current emitter list. More...
template<typename EventType >
void	Emit (const EventType &pEvent) const
	Emit an event with the specified the event type. More...

Additional Inherited Members
Static Public Member Functions inherited from FbxObject
static FbxString	RemovePrefix (char *pName)
	Removes the prefix of pName. More...
static FbxString	StripPrefix (FbxString &lName)
	Strips the prefix of pName. More...
static FbxString	StripPrefix (const char *pName)
	Strips the prefix of pName. More...
Public Attributes inherited from FbxGeometryBase
FbxPropertyT< FbxBool >	PrimaryVisibility
	Control the geometry render state. Geometry can still cast shadows even if this is turned off. More...
FbxPropertyT< FbxBool >	CastShadow
	If true, the geometry will produce shadows. More...
FbxPropertyT< FbxBool >	ReceiveShadow
	If true, the geometry will receive shadows. More...
FbxPropertyT< FbxDouble3 >	BBoxMin
	The minimum value of the control points bounding box. More...
FbxPropertyT< FbxDouble3 >	BBoxMax
	The maximum value of the control points bounding box. More...
Public Attributes inherited from FbxNodeAttribute
FbxPropertyT< FbxDouble3 >	Color
	This property handles the color. More...
Public Attributes inherited from FbxObject
FbxProperty	RootProperty
	The root property that holds all children property for this object. More...
Static Public Attributes inherited from FbxNodeAttribute
static const char *	sColor
	Property Names. More...
static const FbxDouble3	sDefaultColor
	Property Default Values. More...
Protected Member Functions inherited from FbxObject
virtual void	Construct (const FbxObject *pFrom)
	Optional constructor override, automatically called by default constructor. More...
virtual void	ConstructProperties (bool pForceSet)
	Optional property constructor override, automatically called by default constructor. More...
virtual void	Destruct (bool pRecursive)
	Optional destructor override, automatically called by default destructor. More...
virtual void	ContentClear ()
	Clears this object's content from memory. More...
virtual FbxPeripheral *	GetPeripheral ()
	Retrieves the peripheral of that object. More...

Member Enumeration Documentation

enum EDimension

The dimension of the CVs.

• e2D The CVs are two dimensional points.
• e3D The CVs are three dimensional points.

Enumerator
e2D
e3D

Definition at line 72 of file fbxnurbscurve.h.

    {
        e2D = 2,
        e3D
    };

enum EType

The curve's form.

• eOpen
• eClosed
• ePeriodic

Enumerator
eOpen
eClosed
ePeriodic

Definition at line 83 of file fbxnurbscurve.h.

    {
        eOpen,
        eClosed,
        ePeriodic
    };

Member Function Documentation

virtual FbxNodeAttribute::EType GetAttributeType ( ) const

virtual

Returns the EType::eNurbsCurve node attribute type.

Reimplemented from FbxGeometry.

void InitControlPoints	(	int	pCount,
		EType	pVType
	)

Allocates memory space for the control points array as well as for the knot vector.

Parameters

pCount	Number of control points.
pVType	NURBS type.

Remarks

This function should always be called after FbxNurbsCurve::SetOrder().

double* GetKnotVector ( ) const

inline

Returns the knot vector.

Returns

Pointer to the knots array.

Definition at line 101 of file fbxnurbscurve.h.

{ return mKnotVector; }

int GetKnotCount

(

)

const

Returns the number of elements in the knot vector.

Returns

The number of knots.

void SetOrder ( int  pOrder )

inline

Sets the order of the curve.

Parameters

pOrder

The curve order.

Remarks

The curve order must be set before InitControlPoints() is called.

Definition at line 112 of file fbxnurbscurve.h.

{ mOrder = pOrder; }

int GetOrder ( ) const

inline

Returns the NURBS curve order.

Returns

The NURBS curve order.

Definition at line 117 of file fbxnurbscurve.h.

{ return mOrder; }

void SetStep ( int  pStep )

inline

Sets the step of the curve.

Parameters

pStep

The curve step.

Remarks

To tessellate curve, it denotes the evaluation frequency between two neighbor knots.

Definition at line 123 of file fbxnurbscurve.h.

{ mStep = pStep; }

int GetStep ( ) const

inline

Returns the NURBS curve step.

Returns

The NURBS curve step.

Remarks

To tessellate curve, it denotes the evaluation frequency between two neighbor knots.

Definition at line 129 of file fbxnurbscurve.h.

{ return mStep; }

void SetDimension ( EDimension  pDimension )

inline

Sets the dimension of the CVs.

For 3D curves: control point = ( x, y, z, w ), where w is the weight. For 2D curves: control point = ( x, y, 0, w ), where the z component is unused, and w is the weight.

Parameters

pDimension

The control points dimension(3D or 2D).

Definition at line 136 of file fbxnurbscurve.h.

{ mDimension = pDimension; }

EDimension GetDimension ( ) const

inline

Returns the control points dimension.

Returns

The curve dimension.

Definition at line 141 of file fbxnurbscurve.h.

{ return mDimension; }

bool IsRational

(

)

Determines if the curve is rational or not.

Returns

True if the curve is rational, return false if not.

int GetSpanCount

(

)

const

Calculates the number of curve spans with the following: Where S = Number of spans N = Number of CVs M = Order of the curve.

S = N - M + 1;

In this calculation N includes the duplicate CVs for closed and periodic curves.

Returns

The number of curve spans if the curve has been initialized, returns -1 if the curve has not been initialized.

EType GetType ( ) const

inline

Returns NURBS type.

Returns

NURBS type identifier.

Definition at line 165 of file fbxnurbscurve.h.

{ return mNurbsType; }

bool IsPolyline ( ) const

inline

Checks if the curve is a poly line.

(A poly line is a linear NURBS curve )

Returns

True if curve is a poly line, return false if it is not a poly line.

Definition at line 172 of file fbxnurbscurve.h.

{ return ( GetOrder() == 2 ); }

bool IsBezier

(

)

const

This function determines if this NURBS curve is a Bezier curve.

Bezier curves are a special case of NURBS curve.

Returns

True if curve is a Bezier curve. If it is not a Bezier curve return false.

int TessellateCurve	(	FbxArray< FbxVector4 > &	pPointArray,
		int	pStep = 16
	)

Evaluate the point on the curve.

Save the result as a point array. Meanwhile, return the length of the point array.

Parameters

pPointArray	Save the evaluate result as a point array.
pStep	The evaluation frequency between two neighbor knots. Its default value is 16, which is same as Maya.

Returns

The length of the point array.

FbxLine* TessellateCurve

(

int

pStep = 16

)

Evaluate the point on the curve.

Per the evaluation result, create a FbxLine and return the pointer to the line.

Parameters

pStep

The evaluation frequency between two neighbor knots. Its default value is 16, which is same as Maya.

Returns

A line to hold the tessellate points.

---

The documentation for this class was generated from the following file:

• fbxsdk/scene/geometry/fbxnurbscurve.h
