FBEditProperty Class Reference
FBEditProperty Class Reference
#include <mobu-python-api.h>
Class Description
Property editor widget.
This widget allows users to edit the values of a property without having to manually customize the GUI depending on the type of the property being edited. SDK objects can have three types of properties:
- An internal property which maps to an actual property that can be seen in the property editor tool of the application. This type of property is usually obtained from the PropertyList data member.
- SDK-only property which does not maps onto an existing property of the encapsulated object. The existence of these types of property is often to make the object interface simpler. All the FBPropertyList-types will fall into this category, except for FBPropertyListObjects.
- SDK property which maps onto an existing object property, but does so indirectly using function calls instead of direct property access. This is usually for historical reason. In this case the property will usually be present twice in the PropertyList: once as an SDK-Only property and another time as an internal property.
Another limitation of this widget is that it can only display non hidden internal properties. To get around this issue, the property flag can be changed to unhide it. Doing so will also cause the property to be visible via the property tool.
// In a tool header file...
FBEditProperty mEditProperty;
// In a tool source file...
if( lModel )
{
if( lProperty &&
lProperty->IsInternal() &&
!lProperty->GetPropertyFlag( kFBPropertyFlagHideProperty ))
{
mEditProperty.Property = lProperty;
}
}

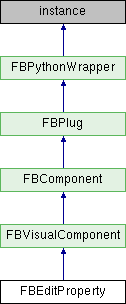

Inheritance diagram for FBEditProperty:
Public Member Functions | |
| __reduce__ () | |
| __init__ (object arg1) | |
| Public Member Functions inherited from FBVisualComponent | |
| __reduce__ () | |
| bool | AddChild (FBVisualComponent arg1, FBVisualComponent arg2, object arg3) |
| Add a child component. More... | |
| object | GetChild (FBVisualComponent arg1, object arg2) |
| Get a child component. More... | |
| bool | IsView (FBVisualComponent arg1) |
| Is component a view? More... | |
| Refresh (FBVisualComponent arg1, object arg2) | |
| Refresh component. More... | |
| ViewExpose (FBVisualComponent arg1) | |
| Exposed view callback function. More... | |
| ViewInput (FBVisualComponent arg1, object arg2, object arg3, FBInputType arg4, object arg5, object arg6) | |
| Input callback function. More... | |
| int | GetQWidgetAddress (FBVisualComponent arg1) |
| Get internal QWidget. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBComponent | |
| __reduce__ () | |
| FBPropertyList | PropertyGetModifiedList (FBComponent arg1, FBPlugModificationFlag arg2) |
| Get list of properties which have been modified since last loading. More... | |
| str | ClassName (FBComponent arg1) |
| Get the class name. More... | |
| DisableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Disable a specific Object Flags. More... | |
| EnableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Enable a specific Object Flags. More... | |
| bool | FBCreate (FBComponent arg1) |
| Open Reality Creation function. More... | |
| FBDelete (FBComponent arg1) | |
| Open Reality deletion function. More... | |
| FBDestroy (FBComponent arg1) | |
| Open Reality destruction function. More... | |
| FBObjectFlag | GetObjectFlags (FBComponent arg1) |
| Get all Object Flags (concatenated). More... | |
| bool | GetObjectStatus (FBComponent arg1, FBObjectStatus arg2) |
| Check to see if an object status is enabled. More... | |
| bool | HasObjectFlags (FBComponent arg1, FBObjectFlag arg2) |
| Check whether a specific object flag is enabled. More... | |
| bool | Is (FBComponent arg1, object arg2) |
| Returns true if object is of type TypeId. More... | |
| bool | ProcessNamespaceHierarchy (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessNamespaceHierarchy. More... | |
| bool | ProcessObjectNamespace (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessObjectNamespace. More... | |
| int | PropertyAdd (FBComponent arg1, FBProperty arg2) |
| Add a property to the component's property manager. More... | |
| bool | PropertyAddReferenceProperty (FBComponent arg1, FBProperty arg2) |
| Add a reference property to the component's property manager. More... | |
| object | PropertyCreate (FBComponent arg1, str arg2, FBPropertyType arg3, str arg4, object arg5, object arg6, FBProperty arg7) |
| Create user or dynamic property. More... | |
| PropertyRemove (FBComponent arg1, FBProperty arg2) | |
| Remove a Property from the component's Property manager. More... | |
| SetObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| SetObjectFlags. More... | |
| SetObjectStatus (FBComponent arg1, FBObjectStatus arg2, object arg3) | |
| Enable/Disable a specific Object Status. More... | |
| HardSelect (FBComponent arg1) | |
| HardSelect. More... | |
| object | GetOwnerFileReference (FBComponent arg1) |
| Get the owner FileReference object. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBPlug | |
| __reduce__ () | |
| bool | BeginChange (FBPlug arg1) |
| Begins a change on multiple plugs. More... | |
| str | ClassName (FBPlug arg1) |
| internal System vars. More... | |
| bool | ConnectDst (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a destination connection. More... | |
| bool | ConnectDstAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a destination connection. More... | |
| bool | ConnectSrc (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a source connection. More... | |
| bool | ConnectSrcAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a source connection. More... | |
| DisconnectAllDst (FBPlug arg1) | |
| Remove all destination connections. More... | |
| DisconnectAllSrc (FBPlug arg1) | |
| Remove all source connections. More... | |
| bool | DisconnectDst (FBPlug arg1, FBPlug arg2) |
| Remove a destination connection. More... | |
| bool | DisconnectDstAt (FBPlug arg1, object arg2) |
| Remove a destination connection at a specified index. More... | |
| bool | DisconnectSrc (FBPlug arg1, FBPlug arg2) |
| Remove a source connection. More... | |
| bool | DisconnectSrcAt (FBPlug arg1, object arg2) |
| Remove a source connection at a specified index. More... | |
| EndChange (FBPlug arg1) | |
| Ends a change on multiple plugs. More... | |
| object | GetDst (FBPlug arg1, object arg2) |
| Get a destination connection's plug at specified index. More... | |
| int | GetDstCount (FBPlug arg1) |
| Get destination connection count. More... | |
| FBConnectionType | GetDstType (FBPlug arg1, object arg2) |
| Get a destination connection's type at specified index. More... | |
| object | GetOwned (FBPlug arg1, object arg2) |
| Get the owned plug at specified index. More... | |
| int | GetOwnedCount (FBPlug arg1) |
| Get the owned plug count. More... | |
| object | GetOwner (FBPlug arg1) |
| Get the owner of this plug. More... | |
| object | GetSrc (FBPlug arg1, object arg2) |
| Get a source connection's plug at specified index. More... | |
| int | GetSrcCount (FBPlug arg1) |
| Get source connection count. More... | |
| FBConnectionType | GetSrcType (FBPlug arg1, object arg2) |
| Get a source connection's type at specified index. More... | |
| bool | Is (FBPlug arg1, object arg2) |
| Is( int pTypeId ) More... | |
| bool | IsSDKComponent (FBPlug arg1) |
| Return whether or not item is an SDK component. More... | |
| MoveSrcAt (...) | |
| bool | ReplaceDstAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a destination connection at a specified index. More... | |
| bool | ReplaceSrcAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a source connection at a specified index. More... | |
| bool | SwapSrc (FBPlug arg1, object arg2, object arg3) |
| Swap source connection at index A with source connection at index B. More... | |
| SetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's self modification flag. More... | |
| bool | GetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's self has changed. More... | |
| SetContentModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's owned property/object's modification flag. More... | |
| bool | GetContentModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's content has changed. More... | |
| int | GetPlugConnectionModifiedList (FBPlug arg1, FBPlugList arg2, FBPlugModificationFlag arg3, object arg4) |
| Get plug's modified src/dst property/object connection added/removed List. More... | |
| bool | RevertModification (FBPlug arg1, FBPlugModificationFlag arg2) |
| Revert the plug's modification to original status. More... | |
| __init__ (...) | |
| method | staticmethod (function) |
| Public Member Functions inherited from FBPythonWrapper | |
| __reduce__ () | |
| __init__ (...) | |
Public Attributes | |
| FBPropertyDouble | LargeInc |
| Read Write Property: Indicate the large increment applied when click-draging on the property value (usually left-click-dragging) More... | |
| FBPropertyDouble | Precision |
| Read Write Property: Used to specify the width and precision of the value shown. More... | |
| FBPropertyReference | Property |
| Read Write Property: Property to edit. More... | |
| FBPropertyDouble | SliderMax |
| Read Write Property: Should the property be editable using a slider, set the maximum value atainable with the slider. More... | |
| FBPropertyDouble | SliderMin |
| Read Write Property: Should the property be editable using a slider, set the minimum value atainable with the slider. More... | |
| FBPropertyDouble | SmallInc |
| Read Write Property: Indicate the small increment applied when click-draging on the property value (usually right-click-dragging) More... | |
| Public Attributes inherited from FBVisualComponent | |
| ORSDK2018::FBPropertyString | Caption |
| Property: Widget caption. More... | |
| FBPropertyBool | Enabled |
| Read Write Property: Is visual enabled? More... | |
| ORSDK2018::FBPropertyString | Hint |
| Read Write Property: Hint to show. More... | |
| FBPropertyBool | ReadOnly |
| Read Write Property: Is visual component read only? More... | |
| FBPropertyBool | Visible |
| Read Write Property: Is visual component visible? More... | |
| FBPropertyInt | Left |
| Read Write Property: Left coordinate. More... | |
| FBPropertyInt | Top |
| Read Write Property: Top coordinate. More... | |
| FBPropertyInt | Width |
| Read Write Property: Width. More... | |
| FBPropertyInt | Height |
| Read Write Property: Height. More... | |
| object | RegionName |
| object | RegionOffsetX |
| object | RegionOffsetY |
| object | RegionOffsetWidth |
| object | RegionOffsetHeight |
| object | RegionRatioX |
| object | RegionRatioY |
| object | RegionRatioWidth |
| object | RegionRatioHeight |
| object | RegionAttachTypeX |
| object | RegionAttachTypeY |
| object | RegionAttachTypeWidth |
| object | RegionAttachTypeHeight |
| object | RegionAttachToX |
| object | RegionAttachToY |
| object | RegionAttachToWidth |
| object | RegionAttachToHeight |
| object | RegionPosMinX |
| object | RegionPosMaxX |
| object | RegionPosMinY |
| object | RegionPosMaxY |
| object | BorderCaption |
| object | BorderShowCaption |
| object | BorderStyle |
| object | BorderWidth |
| object | BorderSpacing |
| object | BorderInSet |
| object | BorderMaxAngle |
| object | BorderCornerRadius |
| Public Attributes inherited from FBComponent | |
| object | OwnerNamespace |
| ORSDK2018::FBPropertyListComponent | Components |
| List: List of components. More... | |
| ORSDK2018::FBPropertyString | Name |
| Read Write Property: Unique name of object. More... | |
| ORSDK2018::FBPropertyString | LongName |
| Read Write Property: Name and namespace for object. More... | |
| object | FullName |
| ORSDK2018::FBPropertyListComponent | Parents |
| List: Parents. More... | |
| ORSDK2018::FBPropertyManager | PropertyList |
| Read Only Property: Manages all of the properties for the component. More... | |
| FBPropertyBool | Selected |
| Read Write Property: Selected property. More... | |
| Public Attributes inherited from FBPythonWrapper | |
| object | OnUnbind |
Member Function Documentation
| __init__ | ( | object | arg1 | ) |
Python Docstring:
__init__( (object)arg1) -> None
C++ Constructors:
The reference documentation for the following C++ symbols may contain additional relevant information.
| __reduce__ | ( | ) |
Member Data Documentation
| FBPropertyDouble LargeInc |
Read Write Property: Indicate the large increment applied when click-draging on the property value (usually left-click-dragging)
| FBPropertyDouble Precision |
Read Write Property: Used to specify the width and precision of the value shown.
A value of 7.2 indicates to show at minimum 7 numbers, with 2 decimals.
| FBPropertyReference Property |
| FBPropertyDouble SliderMax |
Read Write Property: Should the property be editable using a slider, set the maximum value atainable with the slider.
| FBPropertyDouble SliderMin |
Read Write Property: Should the property be editable using a slider, set the minimum value atainable with the slider.
| FBPropertyDouble SmallInc |
Read Write Property: Indicate the small increment applied when click-draging on the property value (usually right-click-dragging)
