FBTool Class Reference
#include <mobu-python-api.h>
Class Description
Tool class.

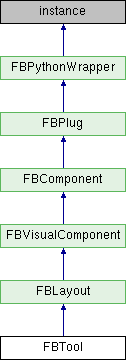

Inheritance diagram for FBTool:
Public Member Functions | |
| __reduce__ () | |
| __init__ (object arg1, str arg2, object arg3) | |
| SetPossibleDockPosition (FBTool arg1, FBToolPossibleDockPosition arg2) | |
| Set the possible docking position for the tool. More... | |
| FBToolPossibleDockPosition | GetPossibleDockPosition (FBTool arg1) |
| Get the possible docking position for the tool (concatenated). More... | |
| Public Member Functions inherited from FBLayout | |
| __reduce__ () | |
| bool | AddRegion (FBLayout arg1, str arg2, str arg3, FBAddRegionParam arg4, FBAddRegionParam arg5, FBAddRegionParam arg6, FBAddRegionParam arg7) |
| Add a region to the layout. More... | |
| __init__ (object arg1) | |
| Constructor. More... | |
| bool | GetRegion (FBLayout arg1, str arg2) |
| Verify if a region with pName exists. More... | |
| bool | GetRegionPositions (FBLayout arg1, str arg2, object arg3, object arg4, object arg5, object arg6, object arg7) |
| Get region pName information (position and size) More... | |
| FBSplitStyle | GetSplitStyle (FBLayout arg1, str arg2) |
| Get a region's splitstyle. More... | |
| bool | MoveRegion (FBLayout arg1, str arg2, object arg3, object arg4) |
| Move a region. More... | |
| bool | RemoveRegion (FBLayout arg1, str arg2) |
| Remove a region. More... | |
| bool | RenameRegion (FBLayout arg1, str arg2, str arg3) |
| Rename a region. More... | |
| bool | SetBorder (FBLayout arg1, str arg2, FBBorderStyle arg3, object arg4, object arg5, object arg6, object arg7, float arg8, object arg9) |
| Set border properties for a region. More... | |
| bool | SetControl (FBLayout arg1, str arg2, FBVisualComponent arg3) |
| bool | SetRegionTitle (FBLayout arg1, str arg2, str arg3) |
| Set a region's title. More... | |
| bool | SetSplitStyle (FBLayout arg1, str arg2, FBSplitStyle arg3) |
| Set a region's splitstyle. More... | |
| bool | SetView (FBLayout arg1, str arg2, FBVisualComponent arg3) |
| bool | SizeRegion (FBLayout arg1, str arg2, object arg3, object arg4) |
| Change a region's size. More... | |
| ClearControl (FBLayout arg1, str arg2) | |
| Remove a control from a region in a visual component. More... | |
| object | GetControl (FBLayout arg1, str arg2) |
| Get control of a region in a visual component. More... | |
| SetAutoRestructure (FBLayout arg1, object arg2) | |
| Suspend all automatic layout recomputation. More... | |
| Restructure (FBLayout arg1, object arg2) | |
| Force a recomputation of all region placements in the layout. More... | |
| Public Member Functions inherited from FBVisualComponent | |
| __reduce__ () | |
| bool | AddChild (FBVisualComponent arg1, FBVisualComponent arg2, object arg3) |
| Add a child component. More... | |
| object | GetChild (FBVisualComponent arg1, object arg2) |
| Get a child component. More... | |
| bool | IsView (FBVisualComponent arg1) |
| Is component a view? More... | |
| Refresh (FBVisualComponent arg1, object arg2) | |
| Refresh component. More... | |
| ViewExpose (FBVisualComponent arg1) | |
| Exposed view callback function. More... | |
| ViewInput (FBVisualComponent arg1, object arg2, object arg3, FBInputType arg4, object arg5, object arg6) | |
| Input callback function. More... | |
| int | GetQWidgetAddress (FBVisualComponent arg1) |
| Get internal QWidget. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBComponent | |
| __reduce__ () | |
| FBPropertyList | PropertyGetModifiedList (FBComponent arg1, FBPlugModificationFlag arg2) |
| Get list of properties which have been modified since last loading. More... | |
| str | ClassName (FBComponent arg1) |
| Get the class name. More... | |
| DisableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Disable a specific Object Flags. More... | |
| EnableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Enable a specific Object Flags. More... | |
| bool | FBCreate (FBComponent arg1) |
| Open Reality Creation function. More... | |
| FBDelete (FBComponent arg1) | |
| Open Reality deletion function. More... | |
| FBDestroy (FBComponent arg1) | |
| Open Reality destruction function. More... | |
| FBObjectFlag | GetObjectFlags (FBComponent arg1) |
| Get all Object Flags (concatenated). More... | |
| bool | GetObjectStatus (FBComponent arg1, FBObjectStatus arg2) |
| Check to see if an object status is enabled. More... | |
| bool | HasObjectFlags (FBComponent arg1, FBObjectFlag arg2) |
| Check whether a specific object flag is enabled. More... | |
| bool | Is (FBComponent arg1, object arg2) |
| Returns true if object is of type TypeId. More... | |
| bool | ProcessNamespaceHierarchy (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessNamespaceHierarchy. More... | |
| bool | ProcessObjectNamespace (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessObjectNamespace. More... | |
| int | PropertyAdd (FBComponent arg1, FBProperty arg2) |
| Add a property to the component's property manager. More... | |
| bool | PropertyAddReferenceProperty (FBComponent arg1, FBProperty arg2) |
| Add a reference property to the component's property manager. More... | |
| object | PropertyCreate (FBComponent arg1, str arg2, FBPropertyType arg3, str arg4, object arg5, object arg6, FBProperty arg7) |
| Create user or dynamic property. More... | |
| PropertyRemove (FBComponent arg1, FBProperty arg2) | |
| Remove a Property from the component's Property manager. More... | |
| SetObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| SetObjectFlags. More... | |
| SetObjectStatus (FBComponent arg1, FBObjectStatus arg2, object arg3) | |
| Enable/Disable a specific Object Status. More... | |
| HardSelect (FBComponent arg1) | |
| HardSelect. More... | |
| object | GetOwnerFileReference (FBComponent arg1) |
| Get the owner FileReference object. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBPlug | |
| __reduce__ () | |
| bool | BeginChange (FBPlug arg1) |
| Begins a change on multiple plugs. More... | |
| str | ClassName (FBPlug arg1) |
| internal System vars. More... | |
| bool | ConnectDst (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a destination connection. More... | |
| bool | ConnectDstAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a destination connection. More... | |
| bool | ConnectSrc (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a source connection. More... | |
| bool | ConnectSrcAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a source connection. More... | |
| DisconnectAllDst (FBPlug arg1) | |
| Remove all destination connections. More... | |
| DisconnectAllSrc (FBPlug arg1) | |
| Remove all source connections. More... | |
| bool | DisconnectDst (FBPlug arg1, FBPlug arg2) |
| Remove a destination connection. More... | |
| bool | DisconnectDstAt (FBPlug arg1, object arg2) |
| Remove a destination connection at a specified index. More... | |
| bool | DisconnectSrc (FBPlug arg1, FBPlug arg2) |
| Remove a source connection. More... | |
| bool | DisconnectSrcAt (FBPlug arg1, object arg2) |
| Remove a source connection at a specified index. More... | |
| EndChange (FBPlug arg1) | |
| Ends a change on multiple plugs. More... | |
| object | GetDst (FBPlug arg1, object arg2) |
| Get a destination connection's plug at specified index. More... | |
| int | GetDstCount (FBPlug arg1) |
| Get destination connection count. More... | |
| FBConnectionType | GetDstType (FBPlug arg1, object arg2) |
| Get a destination connection's type at specified index. More... | |
| object | GetOwned (FBPlug arg1, object arg2) |
| Get the owned plug at specified index. More... | |
| int | GetOwnedCount (FBPlug arg1) |
| Get the owned plug count. More... | |
| object | GetOwner (FBPlug arg1) |
| Get the owner of this plug. More... | |
| object | GetSrc (FBPlug arg1, object arg2) |
| Get a source connection's plug at specified index. More... | |
| int | GetSrcCount (FBPlug arg1) |
| Get source connection count. More... | |
| FBConnectionType | GetSrcType (FBPlug arg1, object arg2) |
| Get a source connection's type at specified index. More... | |
| bool | Is (FBPlug arg1, object arg2) |
| Is( int pTypeId ) More... | |
| bool | IsSDKComponent (FBPlug arg1) |
| Return whether or not item is an SDK component. More... | |
| MoveSrcAt (...) | |
| bool | ReplaceDstAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a destination connection at a specified index. More... | |
| bool | ReplaceSrcAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a source connection at a specified index. More... | |
| bool | SwapSrc (FBPlug arg1, object arg2, object arg3) |
| Swap source connection at index A with source connection at index B. More... | |
| SetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's self modification flag. More... | |
| bool | GetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's self has changed. More... | |
| SetContentModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's owned property/object's modification flag. More... | |
| bool | GetContentModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's content has changed. More... | |
| int | GetPlugConnectionModifiedList (FBPlug arg1, FBPlugList arg2, FBPlugModificationFlag arg3, object arg4) |
| Get plug's modified src/dst property/object connection added/removed List. More... | |
| bool | RevertModification (FBPlug arg1, FBPlugModificationFlag arg2) |
| Revert the plug's modification to original status. More... | |
| __init__ (...) | |
| method | staticmethod (function) |
| Public Member Functions inherited from FBPythonWrapper | |
| __reduce__ () | |
| __init__ (...) | |
Public Attributes | |
| object | StartSizeX |
| object | StartSizeY |
| object | MinSizeX |
| object | MinSizeY |
| object | MaxSizeX |
| object | MaxSizeY |
| object | StartPosX |
| object | StartPosY |
| object | ToolName |
| Public Attributes inherited from FBLayout | |
| ORSDK2018::FBPropertyEvent | OnIdle |
| Event: Idle. More... | |
| ORSDK2018::FBPropertyEvent | OnPaint |
| Event: Paint layout. More... | |
| ORSDK2018::FBPropertyEvent | OnResize |
| Event: Resize layout. More... | |
| ORSDK2018::FBPropertyEvent | OnShow |
| Event: Show layout. More... | |
| ORSDK2018::FBPropertyEvent | OnInput |
| Event: Input. More... | |
| Public Attributes inherited from FBVisualComponent | |
| ORSDK2018::FBPropertyString | Caption |
| Property: Widget caption. More... | |
| FBPropertyBool | Enabled |
| Read Write Property: Is visual enabled? More... | |
| ORSDK2018::FBPropertyString | Hint |
| Read Write Property: Hint to show. More... | |
| FBPropertyBool | ReadOnly |
| Read Write Property: Is visual component read only? More... | |
| FBPropertyBool | Visible |
| Read Write Property: Is visual component visible? More... | |
| FBPropertyInt | Left |
| Read Write Property: Left coordinate. More... | |
| FBPropertyInt | Top |
| Read Write Property: Top coordinate. More... | |
| FBPropertyInt | Width |
| Read Write Property: Width. More... | |
| FBPropertyInt | Height |
| Read Write Property: Height. More... | |
| object | RegionName |
| object | RegionOffsetX |
| object | RegionOffsetY |
| object | RegionOffsetWidth |
| object | RegionOffsetHeight |
| object | RegionRatioX |
| object | RegionRatioY |
| object | RegionRatioWidth |
| object | RegionRatioHeight |
| object | RegionAttachTypeX |
| object | RegionAttachTypeY |
| object | RegionAttachTypeWidth |
| object | RegionAttachTypeHeight |
| object | RegionAttachToX |
| object | RegionAttachToY |
| object | RegionAttachToWidth |
| object | RegionAttachToHeight |
| object | RegionPosMinX |
| object | RegionPosMaxX |
| object | RegionPosMinY |
| object | RegionPosMaxY |
| object | BorderCaption |
| object | BorderShowCaption |
| object | BorderStyle |
| object | BorderWidth |
| object | BorderSpacing |
| object | BorderInSet |
| object | BorderMaxAngle |
| object | BorderCornerRadius |
| Public Attributes inherited from FBComponent | |
| object | OwnerNamespace |
| ORSDK2018::FBPropertyListComponent | Components |
| List: List of components. More... | |
| ORSDK2018::FBPropertyString | Name |
| Read Write Property: Unique name of object. More... | |
| ORSDK2018::FBPropertyString | LongName |
| Read Write Property: Name and namespace for object. More... | |
| object | FullName |
| ORSDK2018::FBPropertyListComponent | Parents |
| List: Parents. More... | |
| ORSDK2018::FBPropertyManager | PropertyList |
| Read Only Property: Manages all of the properties for the component. More... | |
| FBPropertyBool | Selected |
| Read Write Property: Selected property. More... | |
| Public Attributes inherited from FBPythonWrapper | |
| object | OnUnbind |
Member Function Documentation
| __init__ | ( | object | arg1, |
| str | arg2, | ||
| object | arg3 | ||
| ) |
Python Docstring:
__init__( (object)arg1, (str)arg2 [, (object)arg3]) -> None
C++ Constructors:
The reference documentation for the following C++ symbols may contain additional relevant information.
| __reduce__ | ( | ) |
| FBToolPossibleDockPosition GetPossibleDockPosition | ( | FBTool | arg1 | ) |
Get the possible docking position for the tool (concatenated).
Python Docstring:
GetPossibleDockPosition( (FBTool)arg1) -> FBToolPossibleDockPosition
C++ Signature:
FBToolPossibleDockPosition GetPossibleDockPosition()
- Returns
- Get all the docking flags in one call. Flags can be concatenated.
| SetPossibleDockPosition | ( | FBTool | arg1, |
| FBToolPossibleDockPosition | arg2 | ||
| ) |
Set the possible docking position for the tool.
Python Docstring:
SetPossibleDockPosition( (FBTool)arg1, (FBToolPossibleDockPosition)arg2) -> None
C++ Signature:
void SetPossibleDockPosition(FBToolPossibleDockPosition pFlags)
Be sure to call this function once the tool is visible, a good place to call it is when the OnShow event of the layout is called.
- Parameters
-
pFlags Set the docking position flag values. Note: this function overwrites all flags with those passed in parameter.
Member Data Documentation
| MaxSizeX |
Read Property: (int) Maximum Size in X (Disabled in this version). A value of -1 means no maximum size.
| MaxSizeY |
(int) Maximum Size in Y (Disabled in this version). A value of -1 means no maximum size.
| MinSizeX |
Read Property: (int) Minimum Size in X. A value of -1 means no minimum value.
| MinSizeY |
Read Property: (int) Minimum Size in Y. A value of -1 means no minimum value.
| StartPosX |
Read Property: (int) Starting Position in X. This is the initial position when the tool is opened. Default = 450
| StartPosY |
Read Property: (int) Starting Position in Y. This is the initial position when the tool is opened. Default = 450
| StartSizeX |
Read Property: (int) Starting Size. This is the initial size in X when the tool is opened. Default = 800
| StartSizeY |
Read Property: (int) Starting Size. This is the initial size in Y when the tool is opened. Default = 400
| ToolName |
Read Property: (str) Tool Name
