Product manufacturing information (PMI) for inspection

PMI is product manufacturing information. It is data, such as 3D annotations, GD&T (geometric dimensions and tolerances), and other manufacturing information, which gets added to a 3D CAD model. PMI can be computer-readable (semantic) or graphical. The practice of adding PMI to create a fully defined digital model as the single source of truth, is known as MBD (model-based definition) or DPD (digital product definition).

In Fusion, you cannot create PMI. But you can open a design with PMI that was created in other CAD applications. By opening the design in Fusion, you can see the PMI and understand the original design intent.

pmi example

Example of graphical PMI in Fusion.

If a design's PMI includes tolerance information, the correct tolerances can be automatically set when creating manual inspections and creating Probe WCS and Probe Geometry operations, helping to automate programming. This limits the need to refer back to drawings and other documentation, which saves programming time and reduces the risk of inputting wrong values.

Note: Currently, only PMI for diameters and linear dimensions can be used to set size tolerances for inspection.

Supported file types

Designs with PMI created in other CAD applications that you can open in Fusion include:

Opening designs with PMI

You can open a design with PMI in Fusion by:

Viewing PMI in Fusion

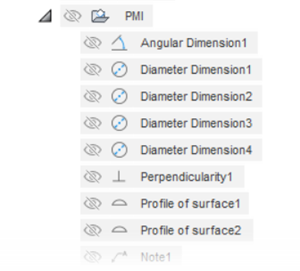

In the Manufacture workspace, all the PMI that is contained in a design is represented as individual items in the Browser. These items are all grouped under a PMI node:

pmi items in browser

If multiple PMI items relate to the same geometric feature, these items are grouped:

pmi group in browser

When you select a PMI item in the Browser, the associated geometric feature is highlighted on the canvas so that the design intent is clear:

pmi selected

Tip: You can also click the PMI for a geometric feature on the canvas and Fusion highlights the PMI item in the Browser. To do this, make sure that Inspection > Select > Selection Filters > PMI is enabled.

Changes to designs in Fusion

If you change a design in Fusion, the model geometry changes but the associated PMI does not, so the PMI becomes out of date. This is indicated by a warning icon in the Browser. The graphical PMI on the canvas also changes color from black to orange:

pmi warnings

To fix these warnings:
