Manage and Consume Files in Packages

Project administrators, package managers, and project members can manage and consume files in packages subject to their package permissions.

Package File Attributes

By default, the following file attributes are displayed:

  • Path: Shows the folder path of the file.

  • Permission: Shows the folder permission that you have for this file.

  • All system attributes

  • The first 50 custom attributes in the project.

    Members with Edit permission, project administrators, and package managers can add and remove attributes to and from unlocked packages by clicking the cog icon

Search and Filter Files in a Package

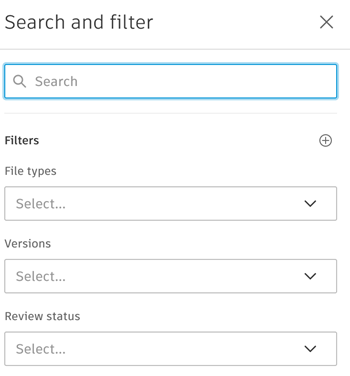

You can click Search and filter and start refining the files displaying in the package. You can use:

  • Search: Enter terms in the search box

  • Default filters: Choose from default filters:

    • File types: Filter by one or more of the file types available in the package file list.
    • Versions: Filter by one or more of the versions available in the package file list.
    • Review status: Filter by one or more review statuses: (Empty), In review, Approved, Rejected.

  • Filter by system and custom attributes: Click to add or remove system attributes and up to 50 custom attributes to use as filters.

Open Files in a Package

  1. Click the relevant file in the package files list to open it in the viewer.

    You can view the file as normal using the viewer and navigation toolbars.

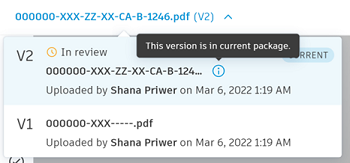

    Click the name of the file on the top left to view a list of the different versions. Hover the i icon to see the file version which is added to the package.

Remove Files from a Package

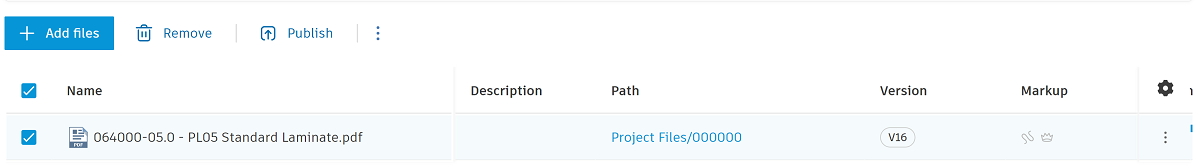

Project administrators and package managers can remove files from unlocked packages.

  1. Click and open the relevant package.

  2. Select the relevant files.

  3. Click Remove.

    Note: The files are only removed from the package and are not deleted from the Files tool.

Change File Versions in a Fixed Version Package

Project administrators and package managers can change the file versions in an unlocked fixed version package. They can't change the file versions in a current versions package as they only show the latest current versions.

  1. Click the relevant package to open it.

  2. Select one or more files

    Note: You can select a maximum of 1,000 files.

  3. Click Change file version.

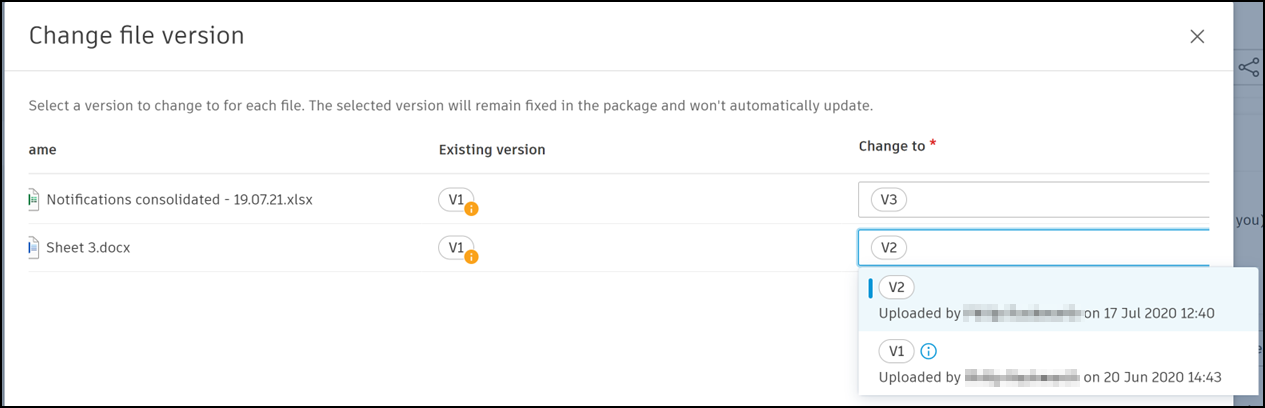

    The dialog details the following:

    • Name: Name of each selected file
    • Existing version: The previously selected version of the file for this package
    • Change to: By default, this shows the current version of the file. Click the box to select another version of the file.

  4. Change the file versions to the desired versions.

  5. Click Change.

Publish Files from a Package

Members with the following permissions can publish PDF drawing files or RVT files which contain sheets:

  1. Open the relevant package.

  2. Select either PDF files or RVT files that you want to publish.

  3. Click Publish.

    You will now enter the second step in the sheets publishing process. See Select Collection and Version Set to learn more.

    Note: The Publish button is disabled if you:
    • Select files which aren't PDFs or RVTs.
    • Select a mix of PDF and RVT files.
    • Select PDF or RVT files with processing errors.
    • Don't have Create + Upload permission for the Sheets tool.
    • Select PDF files or RVT files which are deleted.

Export Files from a Package

Members with View + Download folder permission or above, can export PDF files, RVT, and DWG files (which contain 2D views) with their chosen markups included.

  1. Open the relevant package.

  2. Select one or more PDF, RVT, and DWG files.

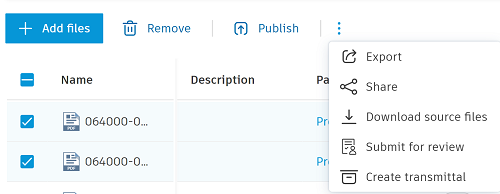

  3. Click the More menu .

  4. Click Export.

  5. Follow the export files workflow.

Share Files from a Package

Members with View only permission or above can share files in a package with other project members. Members with View + Download permission or above can also share files with anyone (if the public links setting is turned on in Settings > Advanced settings) or a bridged project. See Folder Permissions help topic for more information on permissions.

Note: Members can also share the whole package with project members. See the Share Package section in View and Manage Packages help topic.

  1. Open the relevant package.

  2. Select one or more files.

  3. Click the More menu .

  4. Click Share.

    Note: The share button is disabled if over 1,000 files are selected.

  5. Follow the Share files and folders workflow.

Download Source Files

Members with View + Download permission or above can download source files from a package. A source file does not include any markups.

  1. Open the relevant package.

  2. Select one or more files.

  3. Click the More menu .

  4. Click Download source files.

    The source files will download to your local downloads area.

Submit for Review

Members with View only permission or above can select files in a package and submit them for review.

  1. Open the relevant package.
  2. Select one or more files.
  3. Click the More menu .
  4. Click Submit for review.
  5. Follow the Start a Review from Files Tool workflow from step 5 to submit a review.

Create Transmittal

Members with Create + Upload permission or above can create a transmittal using files in a package.

  1. Open the relevant package.
  2. Select one or more files.
  3. Click the More menu .
  4. Click Create transmittal.
  5. Follow the Create a Transmittal from the Files Tool workflow from step 4 to create a transmittal.
Parent page: File Packages
