To Create Perpendicular Lines

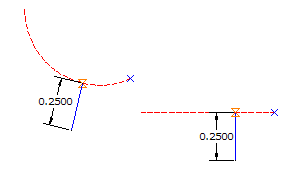

Select the location of the perpendicular point and then specify a distance by picking two points or entering a value.

Click Home tabDraw panelLine drop-downCreate Line Perpendicular From Point Find.
Select the arc or line object to extend the line from.
Specify the point on the object where the line will extend from.
Specify a distance by either clicking in the drawing or entering a distance.
