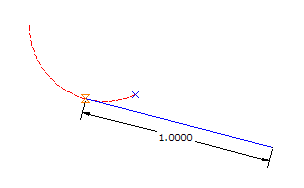

To Create Lines Tangent to a Specified Point

Select the location of the tangent point and then specify a distance by picking two points or entering a value.

Click Home tabDraw panelLine drop-downCreate Line Tangent From Point Find.
Select the arc or line object to extend the line from.
Specify the point of tangency on the object.
Specify a distance by either clicking in the drawing or entering a distance.
