To Create Lines by Specifying Azimuths

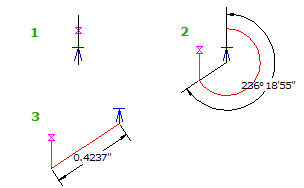

From the start point (1), specify the azimuth (2) and the distance (3).

Click Home tabDraw panelLine drop-downCreate Line By Azimuth Find.
Select a temporary start point for the angle measurement by clicking in the drawing or by using the .P, .N, or .G point filters.
Specify an azimuth by either clicking in the drawing or entering a value.
Specify the distance by either clicking in the drawing or entering a distance.
Continue to specify azimuths and distances to define line segments. Or press Enter to return to the Line command prompt where you can use additional options to define the line.
