To Create Lines by Specifying a Range of Point Numbers

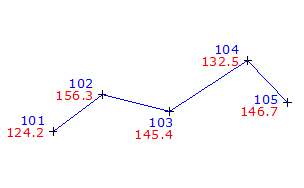

You can specify a sequence of point numbers by using a comma. For example, the sequence 1-3,7 draws a line between points 1, 2, 3, and 7.

  1. Click Home tabDraw panelLine drop-downCreate Line By Point # Range Find.
  2. Enter the number of the point at which you want to start the line.
  3. Enter a hyphen (-).
  4. Enter the number of the point at which you want to end the line segment and press Enter.
Parent topic: Creating Lines
