Understanding Metadata Storage and File Sharing in Revit

The Autodesk Data Exchange Connector for Revit stores metadata related to the exchange directly within the Revit file. When the file is shared with others, this metadata is also shared, which can result in the unintentional transfer of exchange-related information. By being aware of how metadata is stored and shared in Revit, you can better manage the information contained within files and prevent the accidental dissemination of sensitive data.

Important Considerations:

  • The sharing of metadata can occur either intentionally or unintentionally when the file is shared with others.
  • It is important for users to understand that metadata is embedded within the Revit file. This ensures that users are aware of the potential for unintentional updates of exchanges.

Recommendations:

  • Before sharing files, you should review the contents to ensure that any sensitive metadata is intentionally shared.
  • Take necessary precautions to prevent unintentional updates or metadata exchange when sharing Revit files.

Delete an Exchange

You can delete the exchange that you created from your connector interface.

  1. Click Data Exchange command.

  2. Select the relevant exchange in the connector interface.

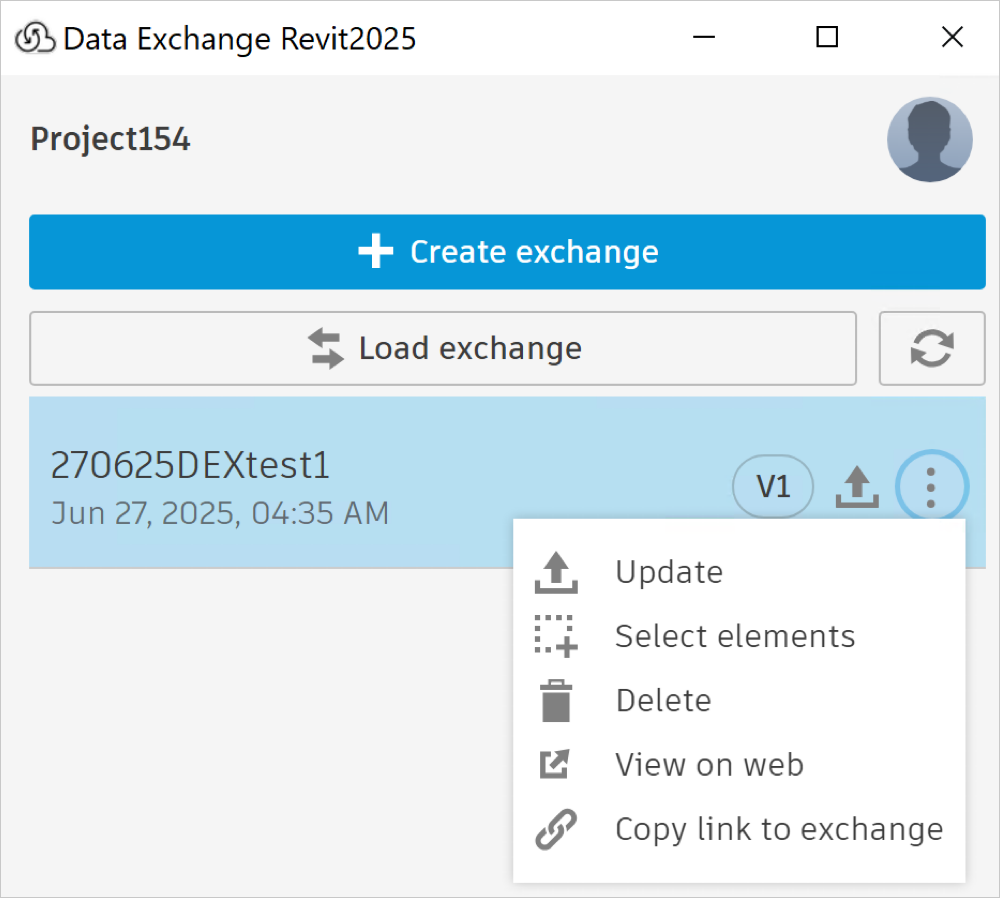

  3. Click More menu and click Delete from the drop-down list.

  4. Click Yes.

View Exchange on Web

This section explains how to view a selected exchange from the loaded exchanges list on Autodesk Docs. When you select an exchange for viewing, you will be redirected to Autodesk Docs and the exchange will be displayed on a new web browser window.

  1. Select the relevant exchange in the connector interface.

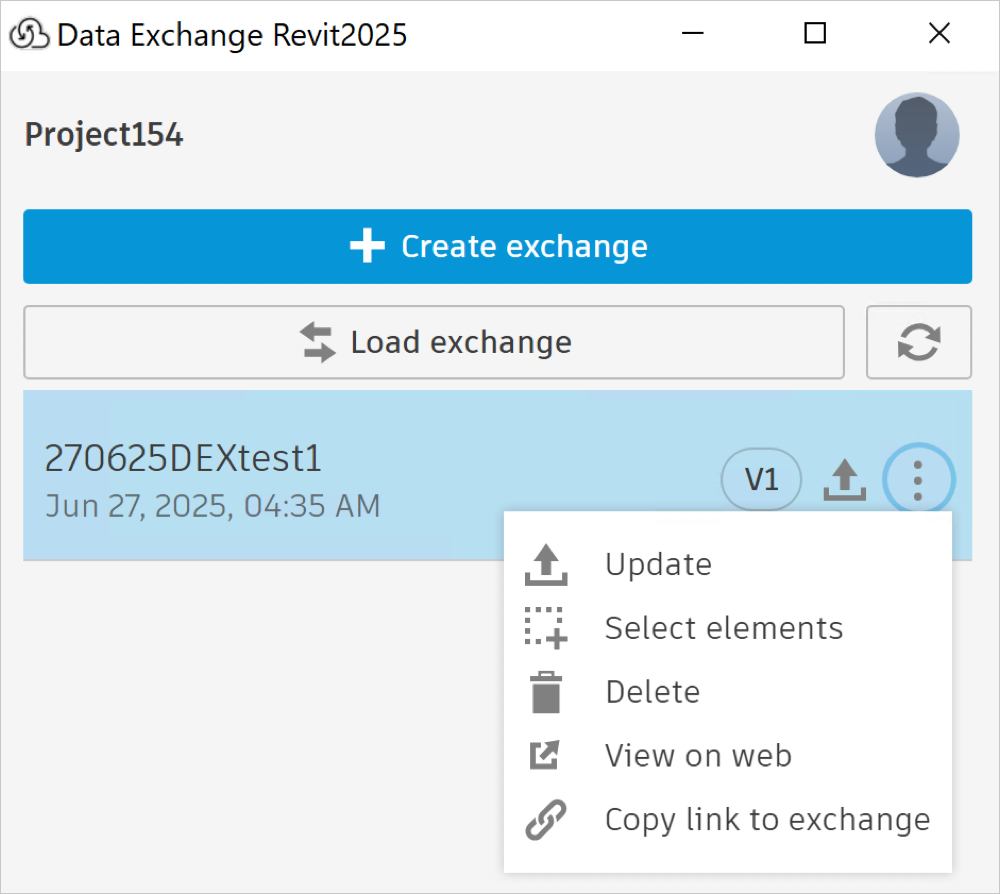

  2. Click More menu and click View on Web from the drop-down list.

A new browser window will open where you can view the exchange in Autodesk Docs.

Select Elements of an Exchange

You can select the components from your Data Exchange using this feature. It helps you to identify the elements from a specific exchange in your Revit file.

  1. Select the relevant exchange in the connector interface.

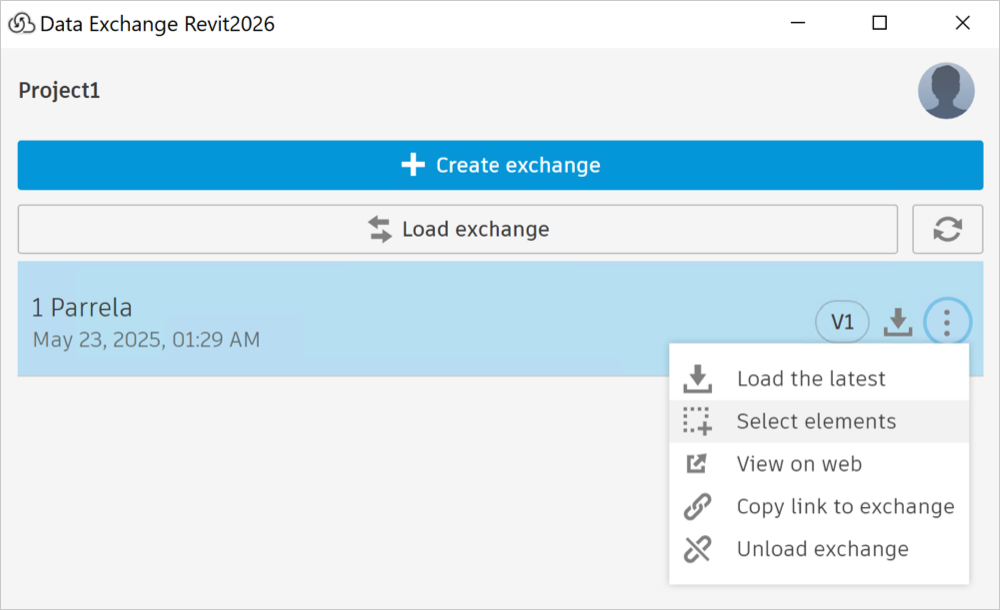

  2. Click More menu and click Select elements from the drop-down list. It highlights the selected Data Exchange elements in Revit.

You can use this feature to share or collaborate on specific elements.

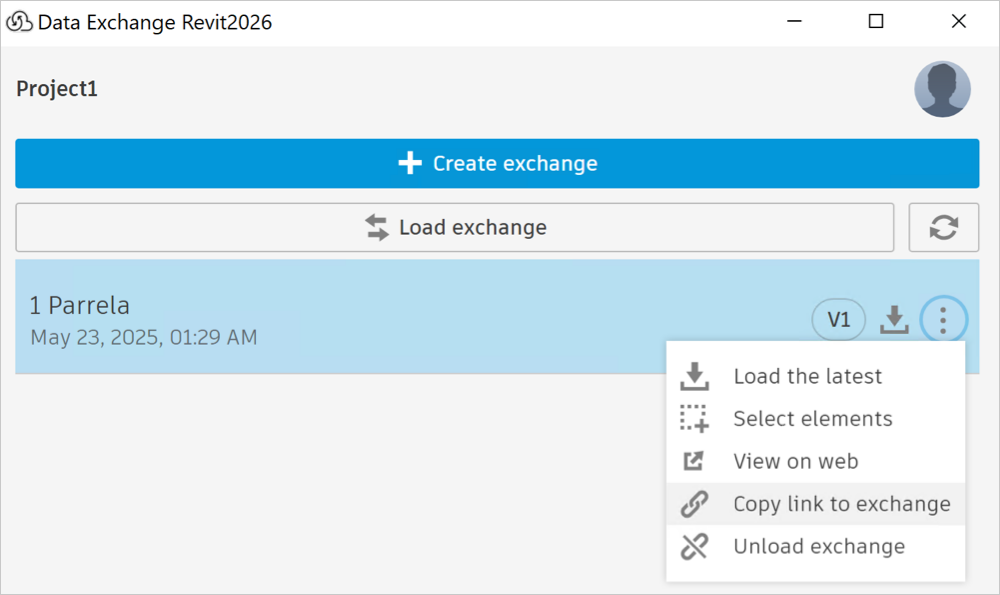

  1. After selecting the elements, click the More menu again and select Copy link to exchange. A unique link will be generated for the selected elements. This link is copied to your clipboard.

  2. Paste and share the link via email, chat, or issue tracking tools. The recipient can use the link to view or access the same elements in their environment.
