3D Network Window Properties Dialog

This dialog allows you to change some of the display properties of the 3D Network Window. It is displayed when you right-click on the view and choose Properties from the popup menu.

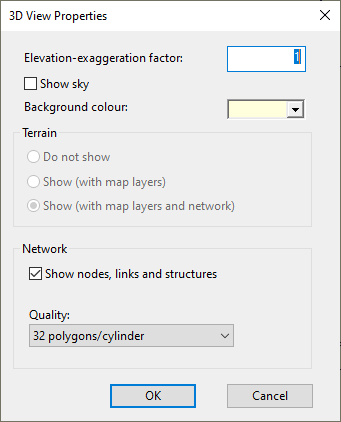

Dialog description

Item	Description
Elevation-exaggeration factor	The factor by which actual ground elevations are exaggerated on the display.
Show sky	Turns the on or off the display of blue sky with clouds in the background of the 3D Network Window. Default is off (unchecked).
Background colour	A list of background colours for the 3D Network Window.
Terrain	Only enabled when a ground model is loaded into the GeoPlan. The following options are available: Do not show - ground model will not be displayed in 3D Network Window Show (with map layers) - ground model and background layers only will be displayed Show (with map layers and network) - ground model, background layers and position of network objects will be displayed
Network	Only enabled when the relevant object type is included within the view. The following options are available: Show nodes, links and structures - if checked, node and link objects and any structures, such as 2D bridges, will be included in the display. Checked by default. Quality - a list of drawing resolutions
OK	Saves any changes to the dialog and closes the window. Any changes to the properties will be included in the display of the 3D Network Window.
Cancel	Cancels any changes to the dialog and closes the window.
