| Toolbar
|
|
Request projection run
|
Opens the Request Projection dialog, for requesting a projection run and running it on the
IWLive Pro Operator Client Operator PC.
|
|
Update from live data
|
Bring the current run up to date with the latest live data. Only available when the currently selected run is an incident or response run.
Live data latency defined in the baseline will be applied, e.g. if the latency is 30 minutes and the current time is 15:30, the live data for 15:00 will be obtained, and the start time for the incident run will be set to 15:00.
If response runs have been created based on the currently selected incident run, the option to 'Update all child runs' will be displayed.
|
|
Update from parent
|
Update fields in a response run from the parent incident run.
Fields in the response run that have been specifically modified by the user will not be altered.
|
|
Validate run
|
Validate the currently selected run.
If validation errors and warnings are found, these will be reported in a
Run Validation window.
Tip: Clicking the
Simulate button will also result in the run being validated.
|
|
Simulate
|
Validate then carry out the simulation for the currently selected run. The
Run Validation window will be displayed. If validation errors are found, these must be resolved before the run can be simulated.
If response runs have been created based on a currently selected incident run, the option to 'Simulate all child runs' will be displayed.
|
|
Cancel run
|
Cancel the run.
|
|
Create child run
|
Create an incident run based on the currently projection run, or create a response run based on the currently selected incident run.
|
|
Verify run
|
Verify the run.
Simulation results will be compared against metered data (where links between model data and live data are set up in the
Verification page of the
Baseline Object).
The verification status of the run will be set according to the option selected in the baseline schedule (see
Default Model window) and in the corresponding warning template (set in
InfoWorks WS Pro).
|
|
Manage local
Manage coordinator
|
Clicking either of these icons displays the
Agent and Marshaller Options dialog, which allows configuration of agents and coordinators.
If this icon is green, the underlying services are working correctly. If this icon is red, there is a problem that will prevent runs from proceeding.
|
|
Validate system
|
Generates a report in the Validation Results window that lists the status, value (if any), and comment for tests on the following: WS Marshaller, client connection, slot count, and local WSAgent.
|
Refresh
|
Refreshes the window content.
|
|
| Context menu
|
These are context menu options additional to the items replicated from the toolbar.
|
Load
|
Loads the results of the run.
|
| Clean
|
Set the status of all currently selected runs to
Cleaned.
This option is only available in the
Administrator mode.
|
| Archive
|
Set the status of all currently selected runs to
Archived.
This option is only available in the
Administrator mode.
|
| Mark for deletion
|
Set the status of all currently selected runs to
Marked for deletion.
This option is only available in the
Administrator mode.
|
| Sort by
|
Lets you change the sort order of the entries in the run manager tree. The sort order can be based on name, status, (creation) date, or last run date.
|
| Show
|
Lets you display or hide the optional columns in the run manager tree. The optional columns are Status, Creation date, and Last run date.
|
|
| Tree
|
The run manager tree shows all runs for the baseline.
|
| Manual load
|
If ticked, allows manual loading using the
Load button.
Tips:
- To load the geoplan and results for one run at a time, untick the
Manual load box. The geoplan and results will now be shown for the particular run that you select in the run manager tree, indicated by a black box around its icon
 . In this mode, every time you select a run in the tree, its geoplan and results will be loaded (and the geoplan and results from any previous selection will be cleared).
- To load the geoplan and results for one run while working on other runs at the same time, first tick the
Manual load box. Now, when you select a run in the run manager tree, you must click the
Load button to show the geoplan and results for that run. A black box indicates which run is loaded
. With one run loaded, you can now select another run in the tree and carry out tasks on it. The run selected in this way is shown with its name in a blue box
 . For this run, you can use the toolbar buttons, context menu commands, and the grid.
|
| Load
|
Available when a run is selected and the
Manual load box is ticked.
|
| Find run
|
Scrolls the run manager tree to the run whose GeoPlan and results are currently displayed.
Available when a run is selected and the
Manual load box is ticked.
|
| Empty bin
|
Click the
Empty bin button to delete all runs with
Status set to
Marked for deletion for the current baseline.
This option is only available in the
Administrator mode.
|
| Run properties (grid)
|
| Name
|
Name of the run to which these properties apply.
If the run is a projection run that has been triggered by SCADA alarms, the word
Alarm will be appended to the run name.
|
| Duration
|
Duration of the run in a dd:hh:mm format.
|
| Status
|
Simulation status of the run can be one of the following:
Pending - simulation has not yet been run but has been queued.
Active - simulation is currently running.
Completed - simulation has been run and results are available.
Failed - simulation has failed.
Out of Date - simulation is outdated because the user has modified an initial value in the
Properties window.
|
| Creation date
|
The date the run was created.
|
| Username
|
The user name of the person who created the run.
|
|
Alarm Run Reason
|
Clicking the ellipsis button opens the
Alarm Run Reason grid which displays the reason why the run has been triggered.
An arrow (---->) in the cell indicates that the
Alarm Run Reason grid is populated.
|
|
Error messages
|
Clicking the ellipsis button opens the
Error Messages grid which displays the live data error messages (if any) that have been generated for the run.
An arrow (---->) in the cell indicates that the
Error Messages grid is populated.
Tip: Weather error messages are displayed in the
Switch window and not in the
Error Messages grid.
|
| Verification status
|
Verification status is determined by comparing simulation results against metered data (where links between model data and metered data are set up in the
Verification Page of the
Baseline Object).
The verification status of the run will be set according to the option selected in the baseline schedule (see
Default Model window) and in the corresponding warning template (set in
InfoWorks WS Pro) and can be one of the following:
Unverified - verification of the run has not been carried out. Verification can be carried out by clicking the
Verify button.
Passed
- no verification warnings.
Notifications - indicates the occurrence of Background warnings.
Minor divergence - indicates the occurrence of Important warnings.
Major divergence - indicates the occurrence of Headline warnings.
More detailed verification information on a per object basis is displayed in the
Verify window.
|
| Verification date
|
Displays the date and time for when the verification was last performed.
|
| Housekeeping
|
Housekeeping status of the run can be one of the following:
None - no housekeeping has been carried out on the run.
Cleaned - main results from the run have been deleted. Warnings are unaffected.
Archived - warnings and main results from the run have been deleted. Results and warnings can be regenerated.
Marked for deletion - the run will be deleted when the recycle bin is emptied in
IWLive Pro Administrator.
|
| Protection
|
Indicates protected or unprotected. A protected run will not be deleted when the recycle bin is emptied in
IWLive Pro Administrator, even if it has been marked for deletion.
|
|
Warning template
|
Name of the warning template used for this run.
|
|
Water quality
|
If ticked, indicates that this run is a Water Quality run.
|
|
Solute data
|
Applies to Water Quality runs.
Name of the solute data used for this run.
If the run is not a Water Quality run, this field will be empty.
|
|
Trace node
|
Applies to Water Quality runs.
Name of the trace node used in this run.
|
|
Time offsets
|
Clicking the ellipsis button displays the
Time Offsets grid showing the time offsets that have been set for the available connections to live data.
An arrow (---->) in the cell indicates that the
Time Offsets grid is populated.
|
|
Log file
|
Clicking the ellipsis button displays a read-only log file of the simulation for this run.
An arrow (---->) in the cell indicates that the
Log file is populated.
|
| WSM log file
|
Clicking the ellipsis button displays a read-only WS Marshaller log file for this run.
An arrow (---->) in the cell indicates that the
WSM log file is populated.
|
|

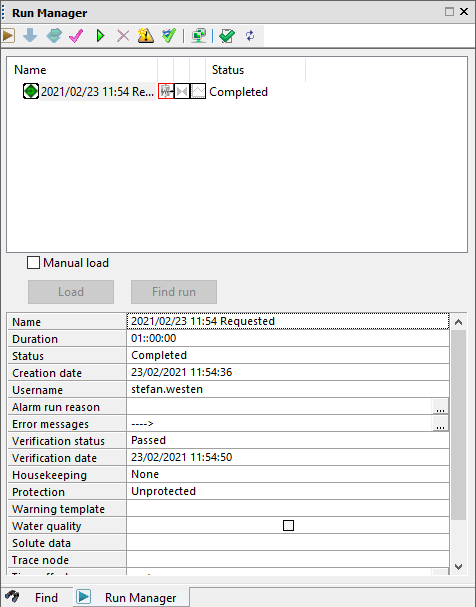

(Run manager) icon of the
Tools toolbar.
/
Projection run, either requested or scheduled from IWLive Server.
Incident run.
Response run.
Grey symbols indicate that there are no results for a run.
Yellow symbols indicate that there are partial results for a run.
Green symbols indicate that a run was successful.
Red symbols indicate that a run failed.
