Quickstart Pack tutorial: Review fill time result

In this task, you review the Fill time result.

  1. Click the Fill time result in the Study Tasks list.

  2. Click Animate (Results tab > Animate panel > Play).

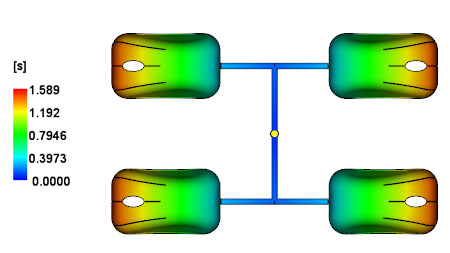

    Fill Time

  3. Rotate, pan, and zoom as necessary to see the filling pattern.

The filling pattern is uniform between the four parts.
