Quickstart Pack tutorial: Review pressure results

In this task, you review the injection pressure results.

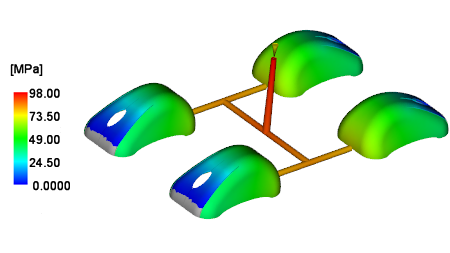

  1. Select Pressure at V/P switchover in the study tasks list.

    Pressure

  2. Click Animate (Results tab > Animation > Play).

  3. Rotate, pan, and zoom as necessary to see the result.

    The pressure at V/P switch-over is best when under 75% of the machine capacity. For a typical machine with a capacity of 140 MPa or about 20,000 psi, the pressure is acceptable when under 100 MPa or about 14,500 psi.

    The maximum pressure is about 100 MPa, decreasing the V/P switch-over pressure is advantageous.

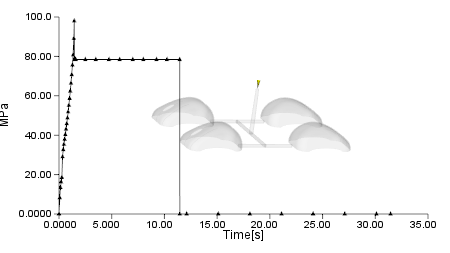

  4. Click Pressure at injection location:XY Plot.

    Pressure at Injection Location

    Here you can see how the pressure builds up and drops 20% for the packing phase. This is the default packing profile.
