Creating the Corner Finishing toolpath

The Corner Finishing toolpath uses a smaller tool to machine the remaining corners, particularly between non-tangential surfaces.

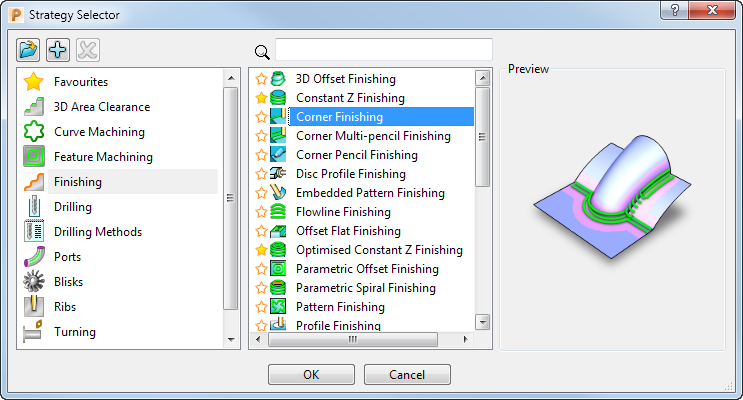

1. Click Home tab > Create Toolpaths panel > Toolpaths to display the Strategy Selector dialog.
2. Select the Corner Finishing strategy on the Finishing tab, and click OK.



3. In the Corner Finishing dialog:
   1. In the Toolpath name field, enter CornerFinishing_Auto.

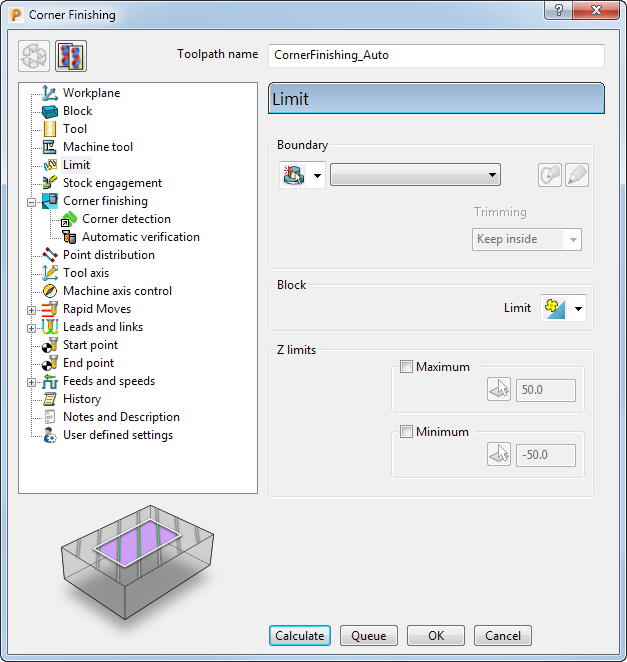

   2. Select the Limit page and choose None from the boundary list.
