Reinforcement of Columns - launched from Autodesk® Revit®.
Parameters of section geometry include:
- Identification parameters (family and type) of a column loaded from a Revit model
- Column dimensions of the cross-section and column height
- Column position, including number of columns, position of the column in the structure (level, offsets)
If the Save data without reinforcement generation option is cleared, the reinforcing bars are generated and displayed in Autodesk® Revit®. If this option is selected, the reinforcement data is generated (and can be used after restarting the Extension), but reinforcing bars cannot be displayed in Autodesk® Revit®.
Reinforcement of Columns - launched from Autodesk Robot Structural Analysis

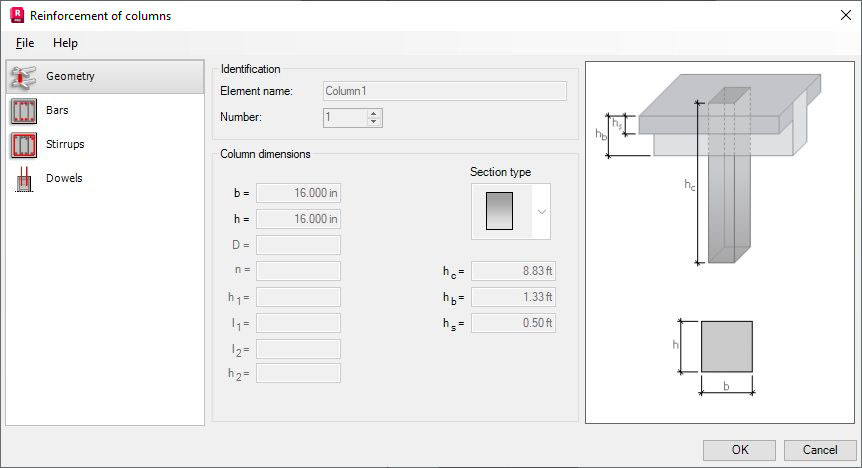

Parameters of section geometry:
- name of an RC structure element (column)
- number columns
- column dimensions: dimensions of the cross-section and column height
The reinforcement is generated for the following column shapes:
rectangular section
round section
L-shaped section
T-section.
It is possible to define other types of column sections (e.g. Z-section, half-circle section etc.) but the column reinforcement is not generated for these section types.
