FBStoryTrack Class Reference

Story Track class. More...

#include <pyfbsdk_generated.h>

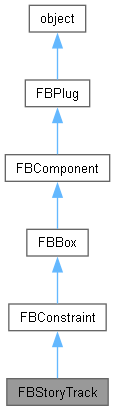

Inheritance diagram for FBStoryTrack:

Public Member Functions

 FBStoryTrack (FBStoryTrackType pTrackType, FBStoryFolder pFolder=None)
 Constructor.

 FBStoryTrack (FBComponent pSource, FBStoryFolder pFolder=None)
 Constructor.

 AddClip (FBComponent pClip, FBTime pTime)
 AddClip Add the clip to the track.

 ChangeDetailsBegin ()
 ChangeDetailsBegin.

 ChangeDetailsEnd ()
 ChangeDetailsEnd.

FBStoryClip CopyTakeIntoTrack (FBTimeSpan pTimeSpan, FBTake pTake, FBTime pOutputOffset=0, bool pMakeUndoable=False)
 CopyTakeIntoTrack Copy animation from the specified take for affected objects of the track.

FBStoryClip CopyTakeIntoTrack (FBTimeSpan pTimeSpan, FBTake pTake, bool pConnectToCurrentTake, FBTime pOutputOffset=FBTime(0), bool pMakeUndoable=False)
 CopyTakeIntoTrack Copy animation from the specified take for affected objects of the track.

FBStoryTrack CreateSubTrack (FBStoryTrackType pTrackType, FBStoryTrackRefMode pRefMode)
 Create a sub track, Only Character and Animation tracks can have sub-tracks.

 EnableBodyPart (FBStoryTrackBodyPart pPart, bool pEnable)
 EnableBodyPart.

 FBDelete ()
 Virtual FBDelete function.

bool IsBodyPartEnabled (FBStoryTrackBodyPart pPart)
 IsBodyPartEnabled.

 Load (bool pLoad)
 Allow to load/unload all story clips under this track.

bool PlotToCameraSwitcher (FBTake pTake)
 PlotToCameraSwitcher Plot the Shot Track to the Camera Switcher on the given Take.

- Public Member Functions inherited from FBConstraint
 FBConstraint (str pName)
 Constructor.

FBAnimationNode AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
 Animation Node Creations (IN).

FBAnimationNode AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
 Animation Node Creations (IN/OUT).

FBConstraint Clone ()
 Clone the constraint.

bool DeformerBind (FBModel pModel)
 Bind/Unbind pModel to deformation constraint.

bool DeformerUnBind (FBModel pModel)

bool Disable (FBModel pModel)
 Disable constraint on pModel.

 FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
 Freeze current model state.

 FreezeSuggested ()
 Suggest 'freeze'.

bool ReferenceAdd (int pGroupIndex, FBModel pModel)
 Add a reference to a specified group.

FBModel ReferenceGet (int pGroupIndex, int pItemIndex=0)
 Get a reference.

int ReferenceGetCount (int pGroupIndex)
 Get number of references in a specified group.

int ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
 Add a group of references.

int ReferenceGroupGetCount ()
 Return the number of reference groups.

int ReferenceGroupGetMaxCount (int pGroupIndex)
 Get the maximum number of items that can exist in the reference group in question.

str ReferenceGroupGetName (int pGroupIndex)
 Get the name of the reference group.

bool ReferenceRemove (int pGroupIndex, FBModel pModel)
 Remove a reference to pModel from the group at pGroupIndex.

 RemoveAllAnimationNodes ()
 Remove animation nodes.

 RestoreModelState (FBModel pModel)
 Restore the saved model state onto pModel.

 SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
 Save current state of pModel.

 SetupAllAnimationNodes ()
 Setup animation nodes.

 SnapSuggested ()
 Suggest 'snap'.

- Public Member Functions inherited from FBBox
 FBBox (str pName)
 Constructor.

bool AnimationNodeDestroy (FBAnimationNode pAnimationNode)
 Destroy an animation node.

FBAnimationNode AnimationNodeInGet ()
 Get the (IN/OUT) animation node for this box.

bool AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
 Is the animation node user data?

FBAnimationNode AnimationNodeOutGet ()

str FbxGetObjectSubType ()
 Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str FbxGetObjectType ()
 Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode GetInConnector (int pIndex)
 Get the animation node input associated with the given index.

int GetInConnectorCount ()
 Get the number of animation node inputs for this box.

FBAnimationNode GetOutConnector (int pIndex)
 Get the animation node output associated with the given index.

int GetOutConnectorCount ()
 Get the number of animation node outputs for this box.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

bool AcceptKey
 Read Write Property: Allow track to accept keys


int AudioOutIndex
 Read Write Property: Audio Output's index to use.


FBCharacter Character
 Read Write Property: Character to use.


int CharacterIndex
 Read Write Property: Character's index to use.


str ClipNameConvention
 Read Write Property: Naming convention for each new recording clip that is created. Can use special tags: <Name> <StartTCValue> <StartFrameValue> <StartDate> <StartTime> <TakeName>


FBListStoryClip Clips
 List: Clips contained in this track.


FBListStoryDetails Details
 List: All objects associated to this track for processing.


bool Ghost
 Read Write Property: Show ghosts


bool GhostModel
 Read Write Property: Show ghost of models


bool GhostPivot
 Read Write Property: Show ghost of match object


FBStoryTrackGhostShowMode GhostShowTrackMode
 Read Write Property: Show the ghosts for all the clips or only the adjacent clips. See FBStoryTrackGhostShowMode


bool GhostTravelling
 Read Write Property: Show ghost of clip vector or traveling node


str Label
 Read Write Property: Label to display for this story track.


bool Mute
 Read Write Property: If true, this track wont' play.


bool OffsetEnable
 Read Write Property: When enabled, allow clip to be offset


FBStoryFolder ParentFolder
 Read Only Property: Parent folder.


FBStoryTrack ParentTrack
 Read Only Property: Parent track, if the track is of Character or Animation type.


bool PassThrough
 Read Write Property: Enable passthrough of animation if there is no clip on track animation is taken from other tracks of take


str RecordClipPath
 Read Write Property: Path for story recording. Can be relative or full path.


bool RecordTrack
 Read Write Property: Path for story recording. Can be relative or full path.


FBStoryTrackRefMode ReferenceMode
 Read Write Property: Track composition mode, kFBStoryTrackOverride or kFBStoryTrackAdditive


bool ShowBackplate
 Read Write Property: If true, the backplate will be shown.


bool ShowFrontplate
 Read Write Property: If true, the frontplate will be shown.


bool Solo
 Read Write Property: If true, this track will be the only one to play.


FBListStorySubTrack SubTracks
 List: Only Character and Animation tracks can have sub-tracks.


FBVideo TrackVideo
 Read Only Property: This FBVideo can be used as a texture.


FBStoryTrackType Type
 Read Only Property: Type of the track


FBAnimatableDouble Weight
 Read Write Property: Control the blend amount.


- Public Attributes inherited from FBConstraint
bool Active
 Read Write Property: Active state.


bool Deformer
 Read Write Property: Is a deformer constraint?


str Description
 Read Write Property: Long description of constraint.


bool HasLayout
 Read Write Property: Does the constraint have a layout?


bool Lock
 Read Write Property: Lock state.


FBAction Snap
 Function Property: Snap constraint.


FBAnimatableDouble Weight
 Read Write Property: Weight of constraint.


- Public Attributes inherited from FBBox
bool Animatable
 Read Write Property: Is the box animatable.


bool Live
 Read Write Property: Is live?


bool RecordMode
 Read Write Property: Is recording?


str UniqueName
 internal Unique name.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Story Track class.


Tracks are containers for clips (medias), have a specific type which offer different functions. Note: To change the travelling node of a track, search for the "TravellingNode" property on the track and then connect/disconnect the appropriate object. Python example: lPropTravellingNode = lAnimTrack.PropertyList.Find("TravellingNode") lCube.ConnectDst(lPropTravellingNode)

See samples: CreateShotClip.py, AudioTrackSetupTool.py, BloopSlate.py, RecordLight.py, FBStoryFolder.py, VideoClip.py, PlotNonSelectedCharStoryTracks.py, PlotSelectedCharStoryTracks.py, PrintClipNamesAndStartStopFrames.py.

Constructor & Destructor Documentation

◆ FBStoryTrack() [1/2]

FBStoryTrack ( FBStoryTrackType  pTrackType,
FBStoryFolder  pFolder = None
)

Constructor.

Parameters
pTrackTypeType of the track to be created.
pFolderIf NULL, parent will be the global root folder.

◆ FBStoryTrack() [2/2]

FBStoryTrack ( FBComponent  pSource,
FBStoryFolder  pFolder = None
)

Constructor.

Parameters
pSourceSource of the track to be created based on media component type.
pFolderIf NULL, parent will be the global root folder.

Member Function Documentation

◆ AddClip()

AddClip ( FBComponent  pClip,
FBTime  pTime
)

AddClip Add the clip to the track.

◆ ChangeDetailsBegin()

ChangeDetailsBegin ( )

ChangeDetailsBegin.

You must call this function before adding/removing any object to the Details list or it won't work.

◆ ChangeDetailsEnd()

ChangeDetailsEnd ( )

ChangeDetailsEnd.

You must call this function after adding/removing any object to the Details list or it won't work.

◆ CopyTakeIntoTrack() [1/2]

FBStoryClip CopyTakeIntoTrack ( FBTimeSpan  pTimeSpan,
FBTake  pTake,
bool  pConnectToCurrentTake,
FBTime  pOutputOffset = FBTime(0),
bool  pMakeUndoable = False
)

CopyTakeIntoTrack Copy animation from the specified take for affected objects of the track.

Parameters
pTimeSpanTime span for the clip to create.
pTakeTake to get the animation from.
pConnectToCurrentTakeTrue to connect the created clip to the current take, false otherwise.
pOutputOffsetTime offset for the clip if necessary.
pMakeUndoableIf the operation should be undoable.
Returns
Created story clip if the operation succeeded, NULL otherwise.

◆ CopyTakeIntoTrack() [2/2]

FBStoryClip CopyTakeIntoTrack ( FBTimeSpan  pTimeSpan,
FBTake  pTake,
FBTime  pOutputOffset = 0,
bool  pMakeUndoable = False
)

CopyTakeIntoTrack Copy animation from the specified take for affected objects of the track.

This method will always connect the created clip to the current take.

Parameters
pTimeSpanTime span for the clip to create.
pTakeTake to get the animation from.
pOutputOffsetTime offset for the clip if necessary.
pMakeUndoableIf the operation should be undoable.
Returns
Created story clip if the operation succeeded, NULL otherwise.

◆ CreateSubTrack()

FBStoryTrack CreateSubTrack ( FBStoryTrackType  pTrackType,
FBStoryTrackRefMode  pRefMode
)

Create a sub track, Only Character and Animation tracks can have sub-tracks.

Parameters
pTrackTypeType of the sub track to be created.
pRefModeComposition mode of the sub track, kFBStoryTrackOverride or kFBStoryTrackAdditive.
Returns
Created sub story track if the operation succeeded otherwise NULL.

◆ EnableBodyPart()

EnableBodyPart ( FBStoryTrackBodyPart  pPart,
bool  pEnable
)

EnableBodyPart.

Parameters
pPartWhich part to enable/disable.
pEnableIf True, this will enable the body part solving while false will disable it. Enable a specific body part for character solving.

◆ FBDelete()

FBDelete ( )

Virtual FBDelete function.

See sample: DeleteHierarchy.py.

◆ IsBodyPartEnabled()

bool IsBodyPartEnabled ( FBStoryTrackBodyPart  pPart)

IsBodyPartEnabled.

Is a specific body part is enabled.

◆ Load()

Load ( bool  pLoad)

Allow to load/unload all story clips under this track.

Remarks
Currently only animation clips are supported.

◆ PlotToCameraSwitcher()

bool PlotToCameraSwitcher ( FBTake  pTake)

PlotToCameraSwitcher Plot the Shot Track to the Camera Switcher on the given Take.

This undoable operation will overwrite the Camera Switcher of Take.

Parameters
pTakeTake to plot the Shot Track to the Camera Switcher to.
Returns
True if the operation is successful, false otherwise.
Remarks
To plot all Shot Tracks to the Camera Switcher, use the FBStory.PlotAllShotTracksToCameraSwitcher method.

Member Data Documentation

◆ AcceptKey

bool AcceptKey

Read Write Property: Allow track to accept keys

◆ AudioOutIndex

int AudioOutIndex

Read Write Property: Audio Output's index to use.

◆ Character

FBCharacter Character

Read Write Property: Character to use.

◆ CharacterIndex

int CharacterIndex

Read Write Property: Character's index to use.

◆ ClipNameConvention

str ClipNameConvention

Read Write Property: Naming convention for each new recording clip that is created. Can use special tags: <Name> <StartTCValue> <StartFrameValue> <StartDate> <StartTime> <TakeName>

◆ Clips

FBListStoryClip Clips

List: Clips contained in this track.

◆ Details

FBListStoryDetails Details

List: All objects associated to this track for processing.

◆ Ghost

bool Ghost

Read Write Property: Show ghosts

◆ GhostModel

bool GhostModel

Read Write Property: Show ghost of models

◆ GhostPivot

bool GhostPivot

Read Write Property: Show ghost of match object

◆ GhostShowTrackMode

FBStoryTrackGhostShowMode GhostShowTrackMode

Read Write Property: Show the ghosts for all the clips or only the adjacent clips. See FBStoryTrackGhostShowMode

◆ GhostTravelling

bool GhostTravelling

Read Write Property: Show ghost of clip vector or traveling node

◆ Label

str Label

Read Write Property: Label to display for this story track.

◆ Mute

bool Mute

Read Write Property: If true, this track wont' play.

◆ OffsetEnable

bool OffsetEnable

Read Write Property: When enabled, allow clip to be offset

◆ ParentFolder

FBStoryFolder ParentFolder

Read Only Property: Parent folder.

◆ ParentTrack

FBStoryTrack ParentTrack

Read Only Property: Parent track, if the track is of Character or Animation type.

◆ PassThrough

bool PassThrough

Read Write Property: Enable passthrough of animation if there is no clip on track animation is taken from other tracks of take

◆ RecordClipPath

str RecordClipPath

Read Write Property: Path for story recording. Can be relative or full path.

◆ RecordTrack

bool RecordTrack

Read Write Property: Path for story recording. Can be relative or full path.

◆ ReferenceMode

FBStoryTrackRefMode ReferenceMode

Read Write Property: Track composition mode, kFBStoryTrackOverride or kFBStoryTrackAdditive

◆ ShowBackplate

bool ShowBackplate

Read Write Property: If true, the backplate will be shown.

◆ ShowFrontplate

bool ShowFrontplate

Read Write Property: If true, the frontplate will be shown.

◆ Solo

bool Solo

Read Write Property: If true, this track will be the only one to play.

◆ SubTracks

FBListStorySubTrack SubTracks

List: Only Character and Animation tracks can have sub-tracks.

◆ TrackVideo

FBVideo TrackVideo

Read Only Property: This FBVideo can be used as a texture.

◆ Type

Read Only Property: Type of the track

◆ Weight

FBAnimatableDouble Weight

Read Write Property: Control the blend amount.
