Task Management

Create Tasks

Create Task in Swimlane

Double-click on the swimlane or use the quick create button.

Create Task in List

Use the Create Task button at the top of the list view.

Create Subtask

To create a subtask in the Swimlane view:

1. Right-click on the parent task.
2. Select Add Subtask.

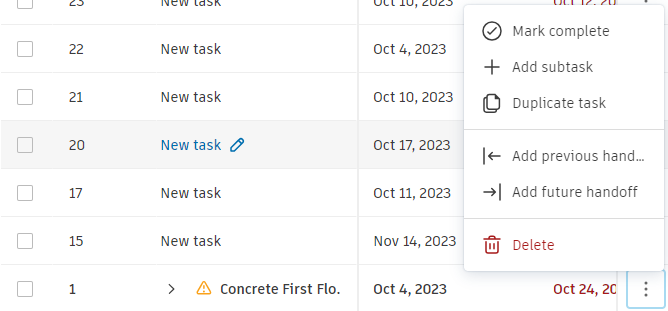

To create a subtask in the List view:

1. Click the quick action menu on the right of the parent task.
2. Select Add Subtask.

Import Tasks From Excel

Excel import allows you to efficiently create multiple tasks at once by uploading task data from a spreadsheet.

Download and Use the Template

To import tasks from Excel:

1. Open a plan in either the List or Swimlane view.
2. Click the arrow next to the Create task button, then click Import.
3. Click Sample file to download the template.
4. Fill in the template with your task information following the format guidelines.
5. Return to the Import dialog and upload your completed file by:
   • Dragging and dropping the file into the dialog
   • Clicking "Choose file" to browse for the file
   • Only XLSX files are supported

Template Attributes

The Excel template supports the following task attributes:

Import Validation

When you upload your file, the system validates the data before import:

• All required fields must have values
• Data format must match the expected format (dates, email addresses, etc.)
• For assignments, the system checks that users, companies, and roles exist in the project

If validation errors occur:

1. The system will display which cells contain errors
2. You'll receive an email with the full error list
3. You can then correct your template and retry the import

Import Limits

• A single import can contain up to 500 tasks
• For larger imports, split your data into multiple files of 500 tasks or less

Post-Import

After successful import:

• Tasks will appear in the plan view
• Created tasks will have the import date as their "Created at" time
• You as the importer will be set as the "Creator"
• Tasks will maintain their attributes as specified in the import file
• You will receive an email notification confirming the successful import

Limitations

• Creating subtasks is currently not supported through import
• Updating existing tasks is currently not supported through import, only the creation of new tasks

Handoff Connections

To create handoffs between tasks in your import file:

1. Assign a unique Handoff ID to each task that will be a predecessor to other tasks
2. Use these IDs in the Previous handoffs IDs column for the dependent tasks, separating multiple IDs with commas
3. The Handoff ID is used only during import and won't be saved as the Task ID in the system

Migrating from BIM360 Plan

If you're migrating data from BIM360 Plan:

1. Export your data from BIM360 Plan to Excel
2. For projects with more than 500 activities, split the data into multiple files
3. Ensure your ACC project has similar:
   • Companies, Roles, and Assignees
   • Location tree structure
   • WBS structure
   • Non-working days configuration
4. Create a dedicated plan for the imported data
5. Map the BIM360 columns to the ACC template columns following the conversion guidelines

View and Edit Tasks

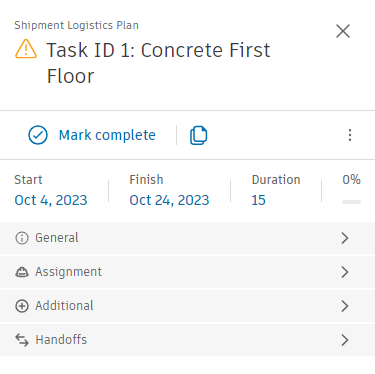

Task Detail Panel

To open the task panel and view/edit details:

Double-click on the task in the Swimlane view or click the task title or ID in the List view.

Section Field/Option Description

Dates & Progress

• Start/End Dates - Edit the date range. Dates will be adjusted based on task handoffs and restrictions. The red color indicates overdue dates.
• Duration - View and edit the task duration.
• % Complete - Indicate what percentage of the task is complete.

General

• Type - Choose Task or Milestone

• Work Type



• Title - Edit the task title

• Description - Add text to summarize or give information about the task. Supports rich text formatting like bold, italics, checklists, etc.

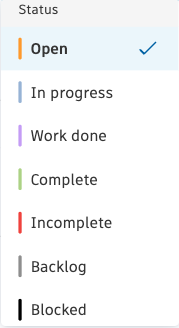

• Status - Select the task status. Each status has an associated color indicator.



Assignments

• Company - Assign the task to a company.
• Assignee - Assign the task to a person.
• Role - Assign the task to a role.
• WBS - Assign the task to a Work Breakdown Structure category.
• Location - Assign the task to a location.

Additional

• Priority - Set the priority - Low, Normal, High
• Crew Size - Specify the number of people needed for the task.

Handoffs

• Previous Handoffs - Tasks that preceded the current task.
• Future Handoffs - Tasks that depend on current task.

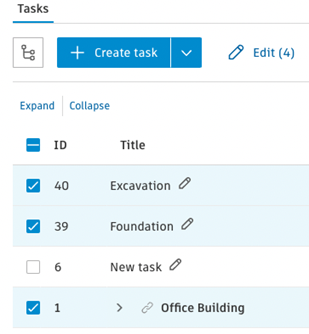

Multiple Task Editing

You can select multiple tasks and batch edit their attributes all at once, such as changing the status or assignee for multiple tasks together.

Inline Edit

In the list view, you can directly edit task values by clicking in the cells, allowing quick edits without opening the task panel.

Edit Logics

There are configurable rules that control how edits impact other values, like how changing a date can cascade and auto-adjust dates of linked tasks.

Auto-correct - The auto-correct logic determines how date changes will cascade and impact linked or dependent tasks. You can choose whether date changes shift subsequent tasks automatically or require manual updating.

Dates logic:

Undo and Redo

You can easily revert recent edits or reinstate them using the undo and redo functions. This allows you to easily fix mistakes or experiment with edits safely.

Task Handoffs

Linking Dependent Tasks

You can link tasks to show handoffs and enable cascading date changes.

Adding Handoffs

You can add handoffs in two ways:

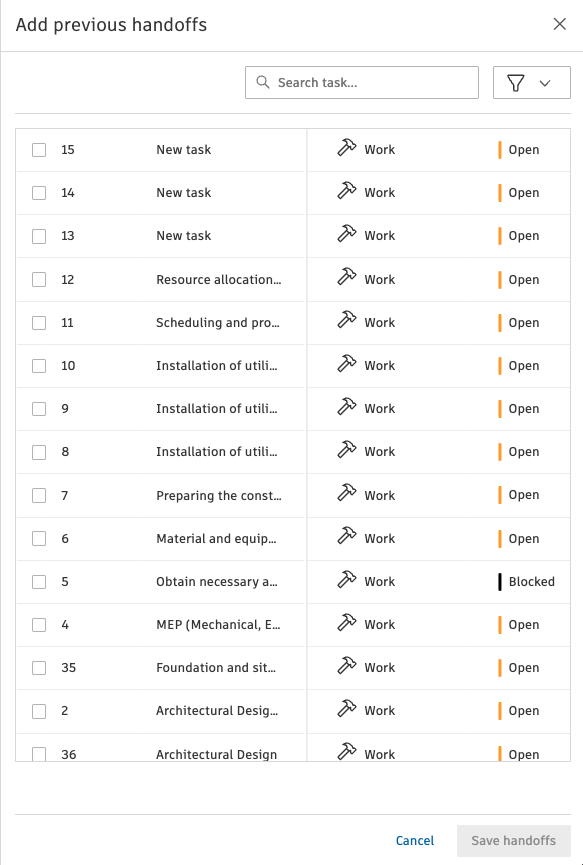

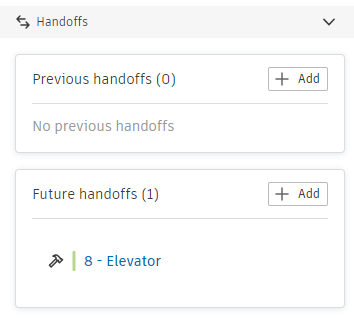

In the Task Panel:

1. Click Add.
2. Select previous and/or future handoffs.
3. Multi-select from the task list.
4. Filter by time and work type.
5. Search by title.

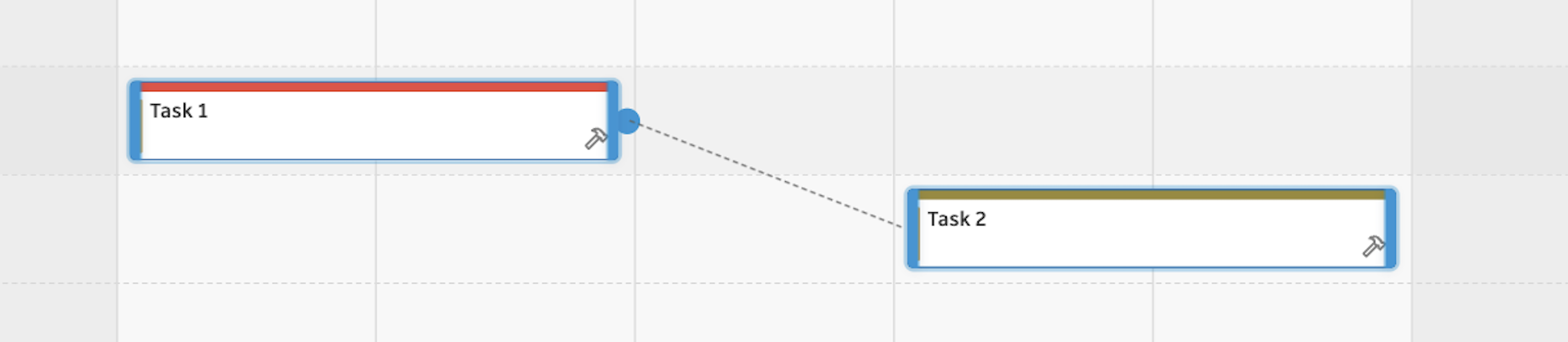

In the Swimlane View:

1. Drag-and-drop handoff holds on the sides of a task card.
2. Connect to the desired parent/child tasks.

Removing Handoffs

To remove a handoff in the Swimlane view:

1. Right-click the link indicator between two tasks.
2. Select Remove Handoffs.

Task References

You can link other items in Build to tasks, making it easy to connect related information. Task references allow you to associate objects like assets, files, issues, RFIs, spec sections and more directly to relevant tasks. This helps provide context, enables quicker navigation between linked items, and keeps everything organized.

By linking related items to your project tasks, you can better organize information, quickly jump between connected objects, and maintain context across the entire project. Task references are a powerful way to keep everything tied together logically as you collaborate in Build.

To add a reference to a task:

1. Open the task detail panel by double-clicking a task in the swimlane view or clicking the task name in the list view.
2. In the References section, click the Add button.
3. Select the desired object type (Assets, Files, RFIs, Spec Sections, etc.) you want to reference.
4. Choose the specific object from the list and click Add.

Members with appropriate edit permissions for the task can add and remove references.

Viewing and Accessing Task References Task references are conveniently accessible in several places:

• The task detail panel shows a dedicated References section listing all linked objects grouped by type. Clicking a reference opens the corresponding object in a new window.
• On the swimlane view, task cards display an icon indicating the number of references. Hovering over the icon shows a summary of linked objects.
• The list view can be configured to include a References column showing a count of each task's references. Hovering over the count previews the individual references.

Actions

There are various operations that can be performed quickly on tasks such as:

• Delete - Permanently remove and delete selected tasks.
• Quick Complete - Mark selected tasks as complete with a single click.
• Duplicate - Make copies of selected tasks within the plan. Tasks can be duplicated with or without subtasks.
• Detach - Convert a subtask into a standalone task, removing it from under its parent task.
• Reopen Tasks - Tasks marked as complete or incomplete can be reopened, changing them back to an open status.
• Move - Relocate tasks to a different row or group based on the Group by configuration. This can be done by dragging tasks on the swimlane canvas.
• Attach - Convert a standalone task into a subtask under a chosen parent task. This can be done by dragging the task onto a parent task card on the swimlane canvas.

Actions can be performed in the following ways:

1. Bulk actions: Select a number of tasks from a swimlane or list and click on the actions menu.

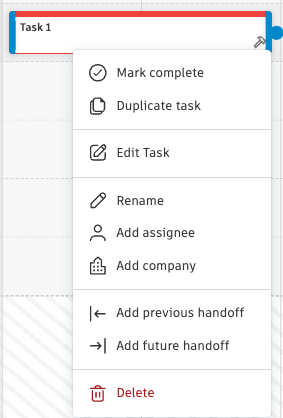

2. Right-click edit: Right-clicking on a task card in the swimlane.

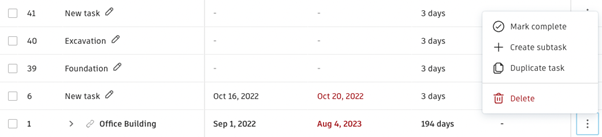

1. Quick menu of selected tasks in the list.

1. Through the task details panel.

Tracking Summary Task Progress

The progress percentage of a summary task shows the average progress of its subtasks.

You can also manually override a subtask's progress percentage, which allows flexibility in how summary task progress is calculated.

Managing Subtasks

Editing subtasks can affect the parent summary task:

• Once a summary task is marked as completed, new subtasks cannot be added. The status must be changed to create new subtasks.
• Deleting a parent summary task prompts whether to also delete all subtasks or keep them as standalone tasks.
• Subtasks can be detached from the parent task to become standalone tasks.
• Standalone tasks can also be attached as subtasks under summary tasks.
