It is possible to carry out spatial searches using the SPATIAL keyword, or between any two network layers or between a network layer and a background network layer or GIS layer as outlined below:
- Choose the Search Type. (These are described in the table below.)
- Select Layer Type:
- Network layer: Object layer in the current network
- GIS layer: GIS background layer displayed behind the network in the GeoPlan
- Select the layer in the Layer box. When searching using a background network layer or GIS layer, the layer must be loaded in the GeoPlan View. When searching using a spatial rain layer, the results of the simulation must be loaded in the GeoPlan View. The layer is then referred to in the query as spatial.
- To include a field in the spatial layer search, select the field in the Field box, or enter directly into the edit box using the syntax shown below, where the field name is included in the query - spatial.STRUCTURE
- Use the spatial fields in the query in exactly the same way as network object fields

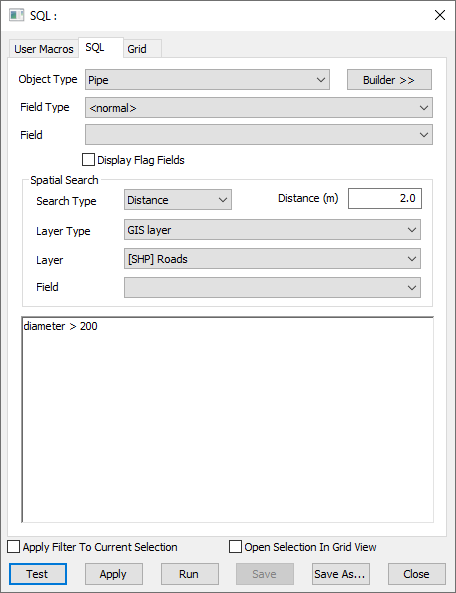

The image below shows an example that uses GIS data to find pipes with a diameter of more than 200 mm that lie within 2 metres of a road.
Example
Sequence of Operations
Example
|
This query will:
|
Spatial Search Type and Geometry
The combinations of geometry and search type listed in the table below are valid.
- For ArcGIS Engine and ArcGIS Desktop GIS layers, the "Inside" search type finds objects completely inside a polygon.
- For MapXtreme GIS layers, network layers and background network layers, the "Inside" search type finds objects whose centre is inside a polygon boundary.
- The "Cross" search type includes all objects "Inside" a layer polygon and also those which intersect the boundary.
- The "Contains" search type looks for network polygons with layer objects completely inside the network polygon.
- The "Nearest" search type looks for the nearest network object within a specified Distance. If there is more than one object within the specified distance, the first one found is returned as the result.
|
Spatial Search Type |
Search Type Description |
Geometry |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Cross |
Searches for network objects which intersect a layer line or polygon area. |
|
||||||||
|
Inside |
Searches for network objects inside a layer polygon. |
|
||||||||
|
Contains |
Searches for network polygons with layer objects inside the polygon. |
|
||||||||
|
Distance |
Searches for network objects within a search Distance of a layer line or polygon area. |
|
||||||||
|
Nearest |
Searches for nearest network object within a specified Distance. If there is more than one object within the specified distance, the first one found is returned as the result. |
|
Spatial searches using the SPATIAL keyword
The main advantage of using the SPATIAL keyword for spatial searches is that it allows a mixture of lines in the SQL block, some of which use the spatial search and some of which don't.
The possible forms the clauses setting up the spatial search may take are:
- SPATIAL NONE - meaning do not use a spatial search i.e. the SQL clause has its normal meaning and acts on the data in the network without reference to any spatial search
- SPATIAL <geometry type> <layer type> <layer name>
- SPATIAL <geometry type> <layer type> <layer name> <distance>
The Geometry Types are:
- Cross
- Inside
- Contains
- Distance
- Nearest
Of these, Distance and Nearest require the distance field, the others must not have it.
The Distance field can be a numeric constant or a scalar variable.
The Layer Type can be:
- Network
- GIS
The layer name must be a string in quotes for GIS and a table name (not in quotes, optionally enclosed by [ ] if it is a single word without spaces, or compulsorily enclosed by [ ] if it isn't) for the other types.
This works in the way as the other controls on the SQL dialog i.e. the options specified in the combo boxes and text box serves as the initial spatial configuration until it is changed by a SPATIAL statement.
Any SPATIAL clause only remains in force until the end of the block containing it i.e. if it is within an IF / ELSE / ELSEIF block then it ceases to have any effect at the end of that block, if it is in a WHILE block it ceases to have any effect at the end of that block. It remains in force in any new IF / WHILE blocks contained within that block.
