Reinforcement of Beams - launched from Autodesk® Revit®.

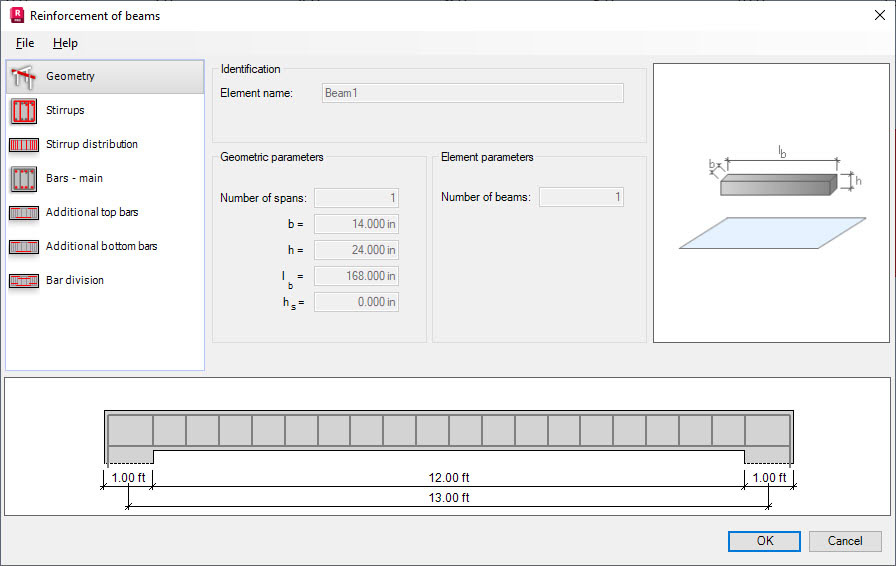

Parameters of the section geometry defined in the dialog include:
- Identification parameters (family and type) of a beam loaded from an Autodesk® Revit® model
- Geometrical parameters, including number of beam spans, dimensions of the cross-section, and length of the beam span
- Element parameters, including number of beams, position of the beam in the structure (level, offsets).
Additionally, Reinforcement of beams automatically recognizes a type of supports on beam ends.
If the Save data without reinforcement generation option is cleared, the reinforcing bars are generated and displayed in Autodesk® Revit®. If this option is selected, the reinforcement data is generated (and can be used after restarting the Extension), but reinforcing bars cannot be displayed in Autodesk® Revit®.
Reinforcement of Beams - launched from Autodesk Robot Structural Analysis

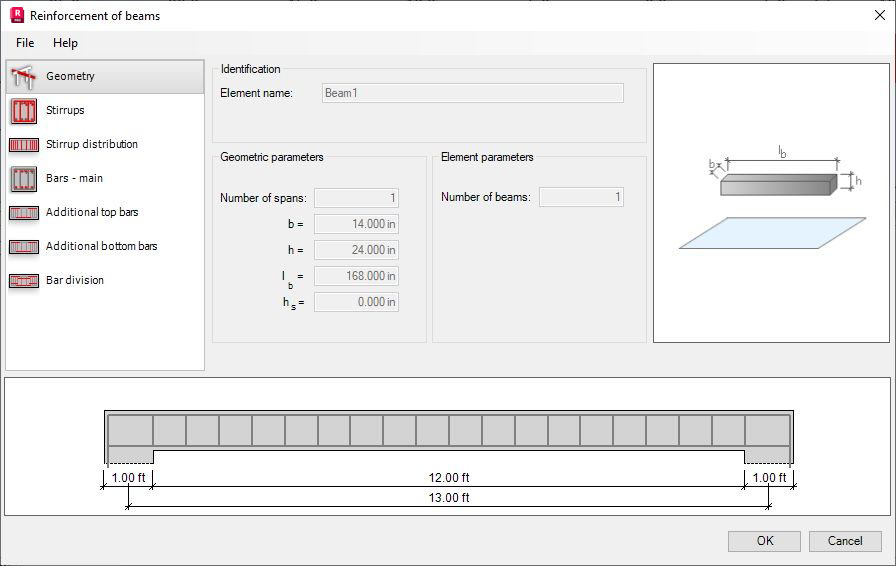

Parameters of the section geometry defined in the dialog:
- name of an RC structure element (beam)
- beam dimensions: number of beam spans, dimensions of the cross-section and length of the beam span
Additionally, a type of supports on beam ends is recognized.
