Web Interface Preferences

• Enable Web Server - Makes it possible for the execution of remote Python commands. When selected, the following options become available.

• Port - Only available when Enable Web Server is enabled. Displays the server port. This is where ssl and non-ssl requests are handled.

• Encrypted HTTPS Only - Only available when Enable Web Server is enabled. Enables (rejects) or disables (allows) unencrypted connection requests.

  Important:

  This option can be turned on or off using the system variable, VRED_FORCE_HTTPS. It determines whether unencrypted communication requests are accepted or rejected. Setting the environment variable will be grey out Encrypted HTTPS Only in the interface.

  When VRED_FORCE_HTTPS is enabled, VRED declines unencrypted connection requests, preventing the recording of communication between a web browser and VRED.

  Note:

  Existing configurations (created before version 2024) will not be changed; however, new ones will only accept https, unless this option is disabled.

• Secure Python - Only available when Enable Web Server is enabled. Allows the execution of Python commands from remote locations, when enabled.

• Enable Debug Mode - Only available when Enable Web Server is enabled. Enables enhanced logging in the VRED terminal.

• Enable Key Events - Only available when Enable Web Server is enabled. Enables the use of a keyboard for the Streaming App. This makes it possible to enter keyboard shortcuts for navigation, such as switching camera modes.

  Note:

  This can also be done through Python, using only Key_A to Key_Z and Key_0 to Key_9. For a list of these keys, see the vrController section of Python v1 Variables.

  The following script demonstrates how you can bind these keys in a Python script.

  keyA = vrKey(Key_A)
  keyA.connect("print(\"Key_A pressed\")")

  keyF = vrKey(Key_F)
  keyF.connect("toggleFullscreen(0, 0)")

• Certificate File - Only available when Enable Web Server is enabled. Generates a self-signed certificate. You will need to define the certificate to use, then define which certificates your browser trusts. This is done using a self-signed certificate. Install this certificate in the Windows Certificate Trust Store, to avoid browser warnings about invalid untrusted certificates.

  Select Certificate File - Defines the certificate used.

  Create Self-signed Certificate - Opens the Create Self-signed Certificate dialog to create a self-signed VRED certificate to use to sign individual VRED webserver instances.

  Certificate Information - Opens the Certificate Information dialog and provides information about the certificate, like version, serial number, and validity.

These options are for enabling and setting a custom web root directory. If you write your own web applications with an embedded VRED Stream, like our VREDStreamApp that can be accessed via web browser from any device, store the custom webpages in a local file location. Define this in Directory, so the VRED WebServer can execute the webpage.

We have also added new URL properties for the VRED Stream and it is now possible to set fullscreen, disable keyboard input, and disable navigation directly in the URL.

• Enable File Access - Enables file access to the custom web root directory specified in the Directory option.

• Directory - Only available when Enable File Access is enabled. Specifies the web root directory for accessing files.

  Select Web Root Directory - Defines the web root directory used.

These options set which sources the web browser will trust.

• Restriction - Determines whether there are restrictions as to which sources your web browser will trust.

  • No restriction - Doesn't place any restrictions. The web browser trusts all sources.
  • Local host - Denies access to all other hosts, except localhost. The web browser only trusts localhost.
  • Host list - Makes it possible for the host names to be entered. The web browser will trust any sources from one of the hosts listed.

• Host List - When the restriction Host list is set, this enables the Host List field, where you can enter hosts that will be trusted by the web browser. Use the right-click menu for modifying the list.

Adds an extra layer of security, but requiring a user to log in and enter a password.

• Authenication Mode - If you don't want any authenication for the Web Server, select No Authentication. To set a user and password and add another layer of security, select Log in with username and password. Use the buttons below this field to add or remove users, as well as change passwords.

VRED has added a self-signed VRED certificate authority. Use this certificate to sign individual VRED webserver instances. You will need to create a certificate, define access, and if needed, set authentication.

Creating a Self-signed Certificate

1. Select Edit > Preferences > General Settings > Web Interface.

2. Next to Certificate File, click to define the certificate to use.

3. Click (the Create self signed certificate button) to create a certificate, enter a unique name for the certificate, and click Save.

4. In the Host Access section, in Restriction, set which source the web browser will trust.

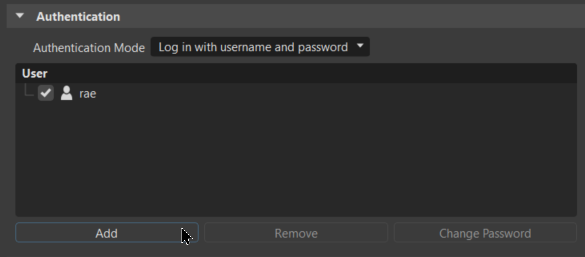

5. In the Authentication section, change Authentication Mode to Log in with username and password.

6. Click the Add button, then add a username and password.

7. Click Apply and Save. The new user will appear in the User section.



This features provides a way for a web application running on VRED to access content from another website, to do something such as play a YouTube video.

• Enable Cross-Origin-Requests - Enables resources on a web page to be requested from another domain outside the domain from which the first resource was served.

• Allowed Origin - Only available when Enable Cross-Origin Requests is enabled. Enter the URL domain to be displayed by cross-origin request sharing in the WebInterface. Use the right-click menu for modifying the list of allowed origins.

Cross-Origin Resource Sharing (CORS) was also implemented for the VREDServer in some requests.

• HTTP Headers for CORS - These are the HTTP headers for cross-origin request sharing:

Preflight (OPTIONS)

Access-Control-Allow-Origin: *

Access Control Allow methods: GET,HEAD,PUT,PATCH,POST,DELETE

Access Control Allow Headers: content-type

Actual request (GET)

Access-Control-Allow-Origin: *

How This Works

If the HOST or PORT is different from the one running the current website/web application and the web application tries to send a request to this other host via Javascript, the HOST will agree to the request. Otherwise, the browser will not send the request.

1. The browser asks the different HOST or PORT in a preflight request with the HTTP method "OPTIONS", if the HOST agrees. If it responds with the HTTP headers as in Preflight above, then it looks to the actual request.

2. The browser sends the actual request. Here, too, an HTTP header must be included as above in Actual request This must be set; otherwise, the browser will not process the response.

For additional information on the headers and how they work, visit Access-Control-Allow-Origin and Cross-Origin Resource Sharing (CORS).
