FBPatch Class Reference
#include <mobu-python-api.h>
Class Description
Patch class.

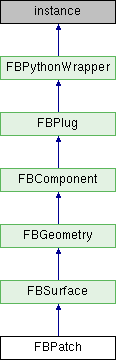

Inheritance diagram for FBPatch:
Public Member Functions | |
| __reduce__ () | |
| __init__ (object arg1, str arg2) | |
| Constructor. More... | |
| ControlPointsBegin (FBPatch arg1) | |
| Begin control points edition. More... | |
| ControlPointsEnd (FBPatch arg1) | |
| End control points edition. More... | |
| SurfaceBegin (FBPatch arg1) | |
| Begin Patch definition. More... | |
| SurfaceEditBegin (FBPatch arg1) | |
| Begin patch surface edit. More... | |
| SurfaceEditEnd (FBPatch arg1) | |
| End patch surface edit. More... | |
| SurfaceEnd (FBPatch arg1) | |
| End Patch definition. More... | |
| Public Member Functions inherited from FBSurface | |
| __reduce__ () | |
| ControlPointsEnd (FBSurface arg1) | |
| ControlPointsBegin (FBSurface arg1) | |
| GetControlPoint (FBSurface arg1, object arg2, object arg3, object arg4, object arg5, object arg6) | |
| bool | GetSurfaceCapped (FBSurface arg1, object arg2, object arg3) |
| SetControlPoint (FBSurface arg1, object arg2, object arg3, object arg4, object arg5, object arg6) | |
| SurfaceBegin (FBSurface arg1) | |
| SurfaceEditBegin (FBSurface arg1) | |
| SurfaceEditEnd (FBSurface arg1) | |
| SurfaceEnd (FBSurface arg1) | |
| bool | VertexGetSelected (FBSurface arg1, object arg2, object arg3) |
| Get the selected state of a vertex. More... | |
| bool | VertexGetTransformable (FBSurface arg1, object arg2, object arg3) |
| Get the Transformable state of a vertex. More... | |
| bool | VertexGetVisible (FBSurface arg1, object arg2, object arg3) |
| Get the visible state of a vertex. More... | |
| bool | VertexSetSelected (FBSurface arg1, object arg2, object arg3, object arg4) |
| Set the selected state of a vertex. More... | |
| bool | VertexSetVisible (FBSurface arg1, object arg2, object arg3, object arg4) |
| Set the visible state of a vertex. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBGeometry | |
| __reduce__ () | |
| FBStringList | GetUVSets (FBGeometry arg1) |
| Get available UVSet name. More... | |
| FBUV | VertexUVGet (FBGeometry arg1, object arg2) |
| Get a UV coordinate. More... | |
| FBColorAndAlpha | VertexColorGet (FBGeometry arg1, object arg2) |
| Get a Vertex Color. More... | |
| FBNormal | VertexNormalGet (FBGeometry arg1, object arg2) |
| Get a normal at a vertex. More... | |
| FBVertex | VertexGet (FBGeometry arg1, object arg2) |
| Get a vertex. More... | |
| bool | GeometryEnd (FBGeometry arg1) |
| End geometry editing. More... | |
| bool | GeometryBegin (FBGeometry arg1) |
| Begin geometry editing. More... | |
| VertexAdd (...) | |
| bool | VertexClear (FBGeometry arg1) |
| Clear all Vertex arrays. More... | |
| bool | VertexArrayClear (FBGeometry arg1) |
| Clear all geometry vertex arrays. More... | |
| int | VertexCount (FBGeometry arg1) |
| Get the number of vertices in the geometry. More... | |
| bool | VertexGetSelected (FBGeometry arg1, object arg2) |
| Get the selected state of a vertex. More... | |
| bool | VertexGetTransformable (FBGeometry arg1, object arg2) |
| Get the Transformable state of a vertex. More... | |
| bool | VertexGetVisible (FBGeometry arg1, object arg2) |
| Get the visible state of a vertex. More... | |
| VertexInit (FBGeometry arg1, object arg2, object arg3, object arg4, object arg5) | |
| Resize or Reserve vertex, normal and UV array for performance. More... | |
| bool | VertexArrayInit (FBGeometry arg1, object arg2, object arg3, int arg4) |
| Init geometry vertex arrays. More... | |
| VertexNormalSet (...) | |
| VertexColorSet (...) | |
| VertexSet (...) | |
| bool | VertexSetSelected (FBGeometry arg1, object arg2, object arg3) |
| Set the selected state of a vertex. More... | |
| bool | VertexSetVisible (FBGeometry arg1, object arg2, object arg3) |
| Set the visible state of a vertex. More... | |
| VertexUVSet (...) | |
| list | GetPositionsArray (FBGeometry arg1) |
| Get a pointer to the position array. More... | |
| bool | SetPositionsArray (FBGeometry arg1, list arg2) |
| list | GetNormalsDirectArray (FBGeometry arg1) |
| Get a pointer to the direct array of normals. More... | |
| bool | SetNormalsDirectArray (FBGeometry arg1, list arg2) |
| list | GetNormalsIndexArray (FBGeometry arg1) |
| Get a pointer to the index array of normals. More... | |
| bool | SetNormalsIndexArray (FBGeometry arg1, list arg2) |
| list | GetTangentsDirectArray (FBGeometry arg1) |
| Get a pointer to the direct array of tangents. More... | |
| bool | SetTangentsDirectArray (FBGeometry arg1, list arg2) |
| list | GetTangentsIndexArray (FBGeometry arg1) |
| Get a pointer to the index array of tangents. More... | |
| bool | SetTangentsIndexArray (FBGeometry arg1, list arg2) |
| list | GetBinormalsDirectArray (FBGeometry arg1) |
| Get a pointer to the direct array of binormals. More... | |
| bool | SetBinormalsDirectArray (FBGeometry arg1, list arg2) |
| list | GetBinormalsIndexArray (FBGeometry arg1) |
| Get a pointer to the index array of binormals. More... | |
| bool | SetBinormalsIndexArray (FBGeometry arg1, list arg2) |
| list | GetVertexColorsDirectArray (FBGeometry arg1) |
| Get a pointer to the direct array of vertex color. More... | |
| bool | SetVertexColorsDirectArray (FBGeometry arg1, list arg2) |
| list | GetVertexColorsIndexArray (FBGeometry arg1) |
| Get a pointer to the index array of vertex color. More... | |
| bool | SetVertexColorsIndexArray (FBGeometry arg1, list arg2) |
| list | GetUVSetDirectArray (FBGeometry arg1, str arg2) |
| Get a pointer to the direct array of UVset Modify array value will be only effective when geometry editing is enabled. More... | |
| bool | SetUVSetDirectArray (FBGeometry arg1, list arg2, str arg3) |
| list | GetUVSetIndexArray (FBGeometry arg1, str arg2) |
| Get a pointer to the index array of UVset. More... | |
| bool | SetUVSetIndexArray (FBGeometry arg1, list arg2, str arg3) |
| list | GetMaterialIndexArray (FBGeometry arg1) |
| Get a pointer to the index array of Material. More... | |
| bool | SetMaterialIndexArray (FBGeometry arg1, list arg2) |
| int | ShapeGetCount (FBGeometry arg1) |
| Get Shape Count. More... | |
| str | ShapeGetName (FBGeometry arg1, object arg2) |
| Return the shape Name. More... | |
| int | ShapeAdd (FBGeometry arg1, str arg2) |
| Add new shape. More... | |
| ShapeClearAll (FBGeometry arg1) | |
| Clears all the shapes. More... | |
| ShapeInit (FBGeometry arg1, object arg2, object arg3, object arg4) | |
| Init the shape. More... | |
| bool | ShapeSetDiffPoint (FBGeometry arg1, object arg2, object arg3, object arg4, FBVertex arg5, FBNormal arg6) |
| bool | ShapeGetDiffPoint (FBGeometry arg1, object arg2, object arg3, object arg4, FBVertex arg5, FBNormal arg6) |
| bool | ShapeGetDiffPointAsList (FBGeometry arg1, object arg2, object arg3, list arg4, FBVertex arg5, FBNormal arg6) |
| FBGeometryMappingMode | GetUVSetMappingMode (FBGeometry arg1, str arg2) |
| Get UVSet mapping mode. More... | |
| FBGeometryReferenceMode | GetUVSetReferenceMode (FBGeometry arg1, str arg2) |
| Get UVSet reference mode. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBComponent | |
| __reduce__ () | |
| FBPropertyList | PropertyGetModifiedList (FBComponent arg1, FBPlugModificationFlag arg2) |
| Get list of properties which have been modified since last loading. More... | |
| str | ClassName (FBComponent arg1) |
| Get the class name. More... | |
| DisableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Disable a specific Object Flags. More... | |
| EnableObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| Enable a specific Object Flags. More... | |
| bool | FBCreate (FBComponent arg1) |
| Open Reality Creation function. More... | |
| FBDelete (FBComponent arg1) | |
| Open Reality deletion function. More... | |
| FBDestroy (FBComponent arg1) | |
| Open Reality destruction function. More... | |
| FBObjectFlag | GetObjectFlags (FBComponent arg1) |
| Get all Object Flags (concatenated). More... | |
| bool | GetObjectStatus (FBComponent arg1, FBObjectStatus arg2) |
| Check to see if an object status is enabled. More... | |
| bool | HasObjectFlags (FBComponent arg1, FBObjectFlag arg2) |
| Check whether a specific object flag is enabled. More... | |
| bool | Is (FBComponent arg1, object arg2) |
| Returns true if object is of type TypeId. More... | |
| bool | ProcessNamespaceHierarchy (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessNamespaceHierarchy. More... | |
| bool | ProcessObjectNamespace (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5) |
| ProcessObjectNamespace. More... | |
| int | PropertyAdd (FBComponent arg1, FBProperty arg2) |
| Add a property to the component's property manager. More... | |
| bool | PropertyAddReferenceProperty (FBComponent arg1, FBProperty arg2) |
| Add a reference property to the component's property manager. More... | |
| object | PropertyCreate (FBComponent arg1, str arg2, FBPropertyType arg3, str arg4, object arg5, object arg6, FBProperty arg7) |
| Create user or dynamic property. More... | |
| PropertyRemove (FBComponent arg1, FBProperty arg2) | |
| Remove a Property from the component's Property manager. More... | |
| SetObjectFlags (FBComponent arg1, FBObjectFlag arg2) | |
| SetObjectFlags. More... | |
| SetObjectStatus (FBComponent arg1, FBObjectStatus arg2, object arg3) | |
| Enable/Disable a specific Object Status. More... | |
| HardSelect (FBComponent arg1) | |
| HardSelect. More... | |
| object | GetOwnerFileReference (FBComponent arg1) |
| Get the owner FileReference object. More... | |
| __init__ (...) | |
| Constructor. More... | |
| Public Member Functions inherited from FBPlug | |
| __reduce__ () | |
| bool | BeginChange (FBPlug arg1) |
| Begins a change on multiple plugs. More... | |
| str | ClassName (FBPlug arg1) |
| internal System vars. More... | |
| bool | ConnectDst (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a destination connection. More... | |
| bool | ConnectDstAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a destination connection. More... | |
| bool | ConnectSrc (FBPlug arg1, FBPlug arg2, FBConnectionType arg3) |
| Add a source connection. More... | |
| bool | ConnectSrcAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4) |
| Add a source connection. More... | |
| DisconnectAllDst (FBPlug arg1) | |
| Remove all destination connections. More... | |
| DisconnectAllSrc (FBPlug arg1) | |
| Remove all source connections. More... | |
| bool | DisconnectDst (FBPlug arg1, FBPlug arg2) |
| Remove a destination connection. More... | |
| bool | DisconnectDstAt (FBPlug arg1, object arg2) |
| Remove a destination connection at a specified index. More... | |
| bool | DisconnectSrc (FBPlug arg1, FBPlug arg2) |
| Remove a source connection. More... | |
| bool | DisconnectSrcAt (FBPlug arg1, object arg2) |
| Remove a source connection at a specified index. More... | |
| EndChange (FBPlug arg1) | |
| Ends a change on multiple plugs. More... | |
| object | GetDst (FBPlug arg1, object arg2) |
| Get a destination connection's plug at specified index. More... | |
| int | GetDstCount (FBPlug arg1) |
| Get destination connection count. More... | |
| FBConnectionType | GetDstType (FBPlug arg1, object arg2) |
| Get a destination connection's type at specified index. More... | |
| object | GetOwned (FBPlug arg1, object arg2) |
| Get the owned plug at specified index. More... | |
| int | GetOwnedCount (FBPlug arg1) |
| Get the owned plug count. More... | |
| object | GetOwner (FBPlug arg1) |
| Get the owner of this plug. More... | |
| object | GetSrc (FBPlug arg1, object arg2) |
| Get a source connection's plug at specified index. More... | |
| int | GetSrcCount (FBPlug arg1) |
| Get source connection count. More... | |
| FBConnectionType | GetSrcType (FBPlug arg1, object arg2) |
| Get a source connection's type at specified index. More... | |
| bool | Is (FBPlug arg1, object arg2) |
| Is( int pTypeId ) More... | |
| bool | IsSDKComponent (FBPlug arg1) |
| Return whether or not item is an SDK component. More... | |
| MoveSrcAt (...) | |
| bool | ReplaceDstAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a destination connection at a specified index. More... | |
| bool | ReplaceSrcAt (FBPlug arg1, object arg2, FBPlug arg3) |
| Replace a source connection at a specified index. More... | |
| bool | SwapSrc (FBPlug arg1, object arg2, object arg3) |
| Swap source connection at index A with source connection at index B. More... | |
| SetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's self modification flag. More... | |
| bool | GetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's self has changed. More... | |
| SetContentModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3) | |
| Set the plug's owned property/object's modification flag. More... | |
| bool | GetContentModified (FBPlug arg1, FBPlugModificationFlag arg2) |
| Tell if the plug's content has changed. More... | |
| int | GetPlugConnectionModifiedList (FBPlug arg1, FBPlugList arg2, FBPlugModificationFlag arg3, object arg4) |
| Get plug's modified src/dst property/object connection added/removed List. More... | |
| bool | RevertModification (FBPlug arg1, FBPlugModificationFlag arg2) |
| Revert the plug's modification to original status. More... | |
| __init__ (...) | |
| method | staticmethod (function) |
| Public Member Functions inherited from FBPythonWrapper | |
| __reduce__ () | |
| __init__ (...) | |
Public Attributes | |
| FBPropertySurfaceType | USurfaceType |
| Read Write Property: Patch mode for U direction. More... | |
| FBPropertySurfaceType | VSurfaceType |
| Read Write Property: Patch mode for V direction. More... | |
| Public Attributes inherited from FBSurface | |
| FBPropertyInt | USize |
| Read Write Property: Size in U directions. More... | |
| FBPropertyInt | VSize |
| Read Write Property: Size in V directions. More... | |
| FBPropertyInt | UStep |
| Read Write Property: Step in U directions. More... | |
| FBPropertyInt | VStep |
| Read Write Property: Step in V directions. More... | |
| FBPropertyBool | UClosed |
| Read Write Property: U Closed. More... | |
| FBPropertyBool | VClosed |
| Read Write Property: V Closed More... | |
| FBPropertySurfaceMode | SurfaceMode |
| Read Write Property: Surface mode. More... | |
| Public Attributes inherited from FBGeometry | |
| FBPropertyGeometryMappingMode | MaterialMappingMode |
| Read Property: Material mapping mode. More... | |
| FBPropertyGeometryMappingMode | NormalMappingMode |
| Read Only Property: Normal mapping mode. More... | |
| FBPropertyGeometryReferenceMode | NormalReferenceMode |
| Read Only Property: Normal reference mode. More... | |
| FBPropertyGeometryMappingMode | TangentMappingMode |
| Read Only Property: Tangent mapping mode. More... | |
| FBPropertyGeometryReferenceMode | TangentReferenceMode |
| Read Only Property: Tangent reference mode. More... | |
| FBPropertyGeometryMappingMode | BinormalMappingMode |
| Read Only Property: Binormal mapping mode. More... | |
| FBPropertyGeometryReferenceMode | BinormalReferenceMode |
| Read Only Property: Binormal reference mode. More... | |
| FBPropertyGeometryMappingMode | VertexColorMappingMode |
| Read Only Property: Vertex Color mapping mode. More... | |
| FBPropertyGeometryReferenceMode | VertexColorReferenceMode |
| Read Only Property: Vertex Color reference mode. More... | |
| Public Attributes inherited from FBComponent | |
| object | OwnerNamespace |
| ORSDK2018::FBPropertyListComponent | Components |
| List: List of components. More... | |
| ORSDK2018::FBPropertyString | Name |
| Read Write Property: Unique name of object. More... | |
| ORSDK2018::FBPropertyString | LongName |
| Read Write Property: Name and namespace for object. More... | |
| object | FullName |
| ORSDK2018::FBPropertyListComponent | Parents |
| List: Parents. More... | |
| ORSDK2018::FBPropertyManager | PropertyList |
| Read Only Property: Manages all of the properties for the component. More... | |
| FBPropertyBool | Selected |
| Read Write Property: Selected property. More... | |
| Public Attributes inherited from FBPythonWrapper | |
| object | OnUnbind |
Member Function Documentation
| __init__ | ( | object | arg1, |
| str | arg2 | ||
| ) |
Constructor.
Python Docstring:
__init__( (object)arg1, (str)arg2) -> None
C++ Signature:
FBPatch(const char * pName, HIObject pObject = ((void *) 0))
- Parameters
-
pName Name of Patch. pObject For internal use only(default=NULL).
| __reduce__ | ( | ) |
| ControlPointsBegin | ( | FBPatch | arg1 | ) |
Begin control points edition.
Python Docstring:
ControlPointsBegin( (FBPatch)arg1) -> None
C++ Signature:
void ControlPointsBegin()
| ControlPointsEnd | ( | FBPatch | arg1 | ) |
End control points edition.
Python Docstring:
ControlPointsEnd( (FBPatch)arg1) -> None
C++ Signature:
void ControlPointsEnd()
| SurfaceBegin | ( | FBPatch | arg1 | ) |
Begin Patch definition.
Python Docstring:
SurfaceBegin( (FBPatch)arg1) -> None
C++ Signature:
void SurfaceBegin()
| SurfaceEditBegin | ( | FBPatch | arg1 | ) |
Begin patch surface edit.
Python Docstring:
SurfaceEditBegin( (FBPatch)arg1) -> None
C++ Signature:
void SurfaceEditBegin()
| SurfaceEditEnd | ( | FBPatch | arg1 | ) |
End patch surface edit.
Python Docstring:
SurfaceEditEnd( (FBPatch)arg1) -> None
C++ Signature:
void SurfaceEditEnd()
| SurfaceEnd | ( | FBPatch | arg1 | ) |
End Patch definition.
Python Docstring:
SurfaceEnd( (FBPatch)arg1) -> None
C++ Signature:
void SurfaceEnd()
Member Data Documentation
| FBPropertySurfaceType USurfaceType |
Read Write Property: Patch mode for U direction.
| FBPropertySurfaceType VSurfaceType |
Read Write Property: Patch mode for V direction.
