FBDeviceCameraLayout Class Reference

Camera device layout. More...

#include <fbdevicelayout.h>

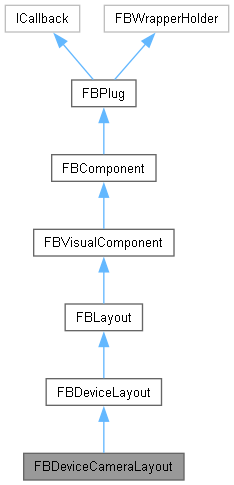

Inheritance diagram for FBDeviceCameraLayout:

Public Member Functions
	FBDeviceCameraLayout (FBDevice *pDevice)
virtual bool	FBCreate () override
	Open Reality Constructor.
virtual void	FBDestroy () override
	Open Reality Destructor.
virtual void	UICreate ()
	Create and assign UI regions.
virtual void	UICreateLayoutInstruments ()
	UICreate: Instrument layout.
virtual void	UICreateLayoutCommunication ()
	UICreate: Communication layout.
virtual void	UICreateLayoutInfo ()
	UICreate: Information layout.
virtual void	UICreateLayoutCustom ()
	UICreate: Custom layout.
virtual void	UIConfigure ()
	Configure UI elements.
virtual void	UIConfigureLayoutInstruments ()
	UIConfigure: Instrument layout.
virtual void	UIConfigureLayoutCommunication ()
	UIConfigure: Communications layout.
virtual void	UIConfigureLayoutInfo ()
	UIConfigure: Information layout.
virtual void	UIConfigureLayoutCustom ()
	UIConfigure: Custom layout.
virtual void	UIRefresh ()
	Idle refresh.
virtual void	UIRefreshLayoutInstruments ()
	UIRefresh: Instrument layout.
virtual void	UIRefreshLayoutCommunications ()
	UIRefresh: Communications layout.
virtual void	UIRefreshLayoutCustom ()
	UIRefresh: Custom layout.
virtual void	UIUpdateEnabled ()
	Update enabled on functions.
virtual void	UIReset ()
	Reset from device values.
virtual void	UIResetLayoutInstruments ()
	UIReset: Instrument layout.
virtual void	UIResetLayoutCommunications ()
	UIReset: Communications layout.
virtual void	UIResetLayoutCustom ()
	UIReset: Custom layout.
virtual FBDeviceCameraInstrument *	GetCurrentInstrument ()
	Get the current selected instrument.
virtual void	OnDeviceStatusChange (HISender pSender, HKEvent pEvent)
	Callback: Device status change .
virtual void	OnUIIdle (HISender pSender, HKEvent pEvent)
	Callback: UI Idle.
virtual void	OnTabPanelChange (HISender pSender, HKEvent pEvent)
	Callback: Tab panel selection.
virtual void	OnListInstrumentsChange (HISender pSender, HKEvent pEvent)
	Callback: Instrument list.
virtual void	OnButtonActiveClick (HISender pSender, HKEvent pEvent)
	Callback: Activate button click.
virtual void	OnButtonManualChange (HISender pSender, HKEvent pEvent)
	Callback: Manual (FOV or Optical center) button click.
virtual void	OnButtonManualFovClick (HISender pSender, HKEvent pEvent)
	Callback: Manual FOV toggle.
virtual void	OnButtonManualCenterClick (HISender pSender, HKEvent pEvent)
	Callback: Manual Optical center toggle.
virtual void	OnFovChange (HISender pSender, HKEvent pEvent)
	Callback: FOV change.
virtual void	OnFovXSliderChange (HISender pSender, HKEvent pEvent)
	Callback: FOV X slider change.
virtual void	OnFovYSliderChange (HISender pSender, HKEvent pEvent)
	Callback: FOV Y slider change.
virtual void	OnFovXEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: FOV X numerical change.
virtual void	OnFovYEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: FOV Y numerical change.
virtual void	OnCenterChange (HISender pSender, HKEvent pEvent)
	Callback: Optical center change.
virtual void	OnCenterXSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Optical center X slider change.
virtual void	OnCenterYSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Optical center Y slider change.
virtual void	OnCenterXEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Optical center X numerical change.
virtual void	OnCenterYEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Optical center Y numerical change.
virtual void	OnOffsetChange (HISender pSender, HKEvent pEvent)
	Callback: Offset change.
virtual void	OnOffsetTChange (HISender pSender, HKEvent pEvent)
	Callback: Translation offset change.
virtual void	OnOffsetRChange (HISender pSender, HKEvent pEvent)
	Callback: Rotation offset change.
virtual void	OnLensfileChange (HISender pSender, HKEvent pEvent)
	Callback: Lensfile change.
virtual void	OnButtonLoadLensfileClick (HISender pSender, HKEvent pEvent)
	Callback: Load lensfile button click.
virtual void	OnButtonResetLensfileClick (HISender pSender, HKEvent pEvent)
	Callback: Reset lensfile button click.
virtual void	OnInvertChange (HISender pSender, HKEvent pEvent)
	Callback: Invert values change.
virtual void	OnInvertFocusClick (HISender pSender, HKEvent pEvent)
	Callback: Invert focus toggle.
virtual void	OnInvertZoomClick (HISender pSender, HKEvent pEvent)
	Callback: Invert zoom toggle.
virtual void	OnFovUnitsChange (HISender pSender, HKEvent pEvent)
	Callback: FOV units change.
virtual void	OnFovUnitsDegClick (HISender pSender, HKEvent pEvent)
	Callback: FOV units to degrees.
virtual void	OnFovUnitsRadClick (HISender pSender, HKEvent pEvent)
	Callback: FOV units to radians.
virtual void	OnNodalXChange (HISender pSender, HKEvent pEvent)
	Callback: Nodal shift change.
virtual void	OnNodalXSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Nodal shift slider change.
virtual void	OnNodalXEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Nodal shift numerical change.
virtual void	OnZoomXChange (HISender pSender, HKEvent pEvent)
	Callback: Zoom multiplier change.
virtual void	OnZoomXSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Zoom multiplier slider change.
virtual void	OnZoomXEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Zoom multiplier numerical change.
virtual void	OnAspectRatioChange (HISender pSender, HKEvent pEvent)
	Callback: Aspect ratio change.
virtual void	OnAspectRatioSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Aspect ratio slider change.
virtual void	OnAspectRatioEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Aspect ratio numerical change.
virtual void	OnAspectRatioPresetChange (HISender pSender, HKEvent pEvent)
	Callback: Aspect ratio preset selection.
virtual void	OnSyncDelayChange (HISender pSender, HKEvent pEvent)
	Callback: Sync delay change.
virtual void	OnSyncDelaySliderChange (HISender pSender, HKEvent pEvent)
	Callback: Sync delay slider change.
virtual void	OnSyncDelayEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Sync delay numerical change.
virtual void	OnButtonSyncInfoClick (HISender pSender, HKEvent pEvent)
	Callback: Sync debug info click.
virtual void	OnEnableChange (HISender pSender, HKEvent pEvent)
	Callback: Enable comm type change.
virtual void	OnEnableSerialClick (HISender pSender, HKEvent pEvent)
	Callback: Enable serial communication.
virtual void	OnEnableSimulatorClick (HISender pSender, HKEvent pEvent)
	Callback: Enable simulator communication.
virtual void	OnEnableNetworkClick (HISender pSender, HKEvent pEvent)
	Callback: Enable network communication.
virtual void	OnEnableSharedMemoryClick (HISender pSender, HKEvent pEvent)
	Callback: Enable simulator.
virtual void	OnSerialChange (HISender pSender, HKEvent pEvent)
	Callback: Serial state change.
virtual void	OnSerialPortChange (HISender pSender, HKEvent pEvent)
	Callback: Serial port change.
virtual void	OnSerialBaudRateChange (HISender pSender, HKEvent pEvent)
	Callback: Serial baud rate change.
virtual void	OnNetworkChange (HISender pSender, HKEvent pEvent)
	Callback: Network state change.
virtual void	OnNetworkAddressChange (HISender pSender, HKEvent pEvent)
	Callback: Network address change.
virtual void	OnNetworkPortChange (HISender pSender, HKEvent pEvent)
	Callback: Network port change.
virtual void	OnNetworkProtocolChange (HISender pSender, HKEvent pEvent)
	Callback: Network protocol change.
virtual void	OnSimulatorChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator state change.
virtual void	OnSimulatorAmplitudeEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator amplitude numerical change.
virtual void	OnSimulatorAmplitudeSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator amplitude slider change.
virtual void	OnSimulatorFrequencyEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator frequency numerical change.
virtual void	OnSimulatorFrequencySliderChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator frequency slider change.
virtual void	OnSimulatorZoomEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator zoom numerical change.
virtual void	OnSimulatorZoomSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator zoom slider change.
virtual void	OnSimulatorFocusEditNumberChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator focus numerical change.
virtual void	OnSimulatorFocusSliderChange (HISender pSender, HKEvent pEvent)
	Callback: Simulator focus slider change.
virtual void	OnSharedMemoryChange (HISender pSender, HKEvent pEvent)
	Callback: Shared memory state change.
virtual void	OnSharedMemoryHandleChange (HISender pSender, HKEvent pEvent)
	Callback: Shared memory handle change.
virtual void	OnSharedMemoryAddressChange (HISender pSender, HKEvent pEvent)
	Callback: Shared memory address change.
Public Member Functions inherited from FBDeviceLayout
	FBDeviceLayout (FBDevice *pDevice=NULL)
	Constructor.
Public Member Functions inherited from FBLayout
	FBLayout (HIObject pObject=NULL)
	Constructor.
virtual bool	AddRegion (const char *pName, const char *pTitle, int pX, FBAttachType pXType, const char *pXRelative, float pMultX, int pY, FBAttachType pYType, const char *pYRelative, float pMultY, int pW, FBAttachType pWType, const char *pWRelative, float pMultW, int pH, FBAttachType pHType, const char *pHRelative, float pMultH)
	Add a region to the layout.
virtual bool	MoveRegion (const char *pName, int pX, int pY)
	Move a region.
virtual bool	SizeRegion (const char *pName, int pW, int pH)
	Change a region's size.
virtual bool	RemoveRegion (const char *pName)
	Remove a region.
virtual bool	RenameRegion (const char *pOldName, const char *pNewName)
	Rename a region.
virtual bool	GetRegion (const char *pName)
	Verify if a region with pName exists.
virtual bool	GetRegionPositions (const char *pName, bool pComputed, int *pX, int *pY, int *pW=NULL, int *pH=NULL)
	Get region pName information (position and size)
virtual bool	SetControl (const char *pName, FBVisualComponent *pComponent)
	Set control of a region to a visual component.
virtual bool	SetControl (const char *pName, FBVisualComponent &pComponent)
virtual void	ClearControl (const char *pName)
	Remove a control from a region in a visual component.
virtual FBVisualComponent *	GetControl (const char *pName)
	Get control of a region in a visual component.
virtual HIKtObject	GetHIKtObject (const char *pName)
	Set or Get internal toolkit: object.
virtual bool	SetHIKtView (const char *pName, HIKtView pView)
	Set internal toolkit view.
virtual HIKtView	GetHIKtView (const char *pName)
	Get internal toolkit view.
virtual bool	SetView (const char *pName, FBVisualComponent *pComponent)
	Set view.
virtual bool	SetView (const char *pName, FBVisualComponent &pComponent)
virtual bool	SetBorder (const char *pName, FBBorderStyle pType, bool pShowTitle, bool pInSet, int pWidth, int pSpacing, float pMaxAngle, int pCornerRadius)
	Set border properties for a region.
virtual bool	SetSplitStyle (const char *pName, FBSplitStyle pRegionType)
	Set a region's splitstyle.
virtual FBSplitStyle	GetSplitStyle (const char *pName)
	Get a region's splitstyle.
virtual bool	SetRegionTitle (const char *pName, const char *pTitle)
	Set a region's title.
void	SetAutoRestructure (bool pAutoRestructure)
	Suspend all automatic layout recomputation.
void	Restructure (bool pNoMove)
	Force a recomputation of all region placements in the layout.
	IObject_Declare (override)
Public Member Functions inherited from FBVisualComponent
	FBVisualComponent (HIObject pObject)
	Constructor.
	IObject_Declare (override)
	ICallback_Declare (override)
virtual HIKtView	GetKtView ()
	Get internal toolkit object.
QWidget *	GetQWidgetAddress ()
	Get internal QWidget.
virtual bool	AddChild (FBVisualComponent *pChild, int pId=0)
	Add a child component.
virtual FBVisualComponent *	GetChild (int pId=0)
	Get a child component.
virtual void	Refresh (bool pNow=false)
	Refresh component.
virtual void	ViewExpose ()
	Exposed view callback function.
virtual void	ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
	Input callback function.
virtual bool	IsView ()
	Is component a view?
Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor.
virtual	~FBComponent ()
	Destructor.
virtual bool	FBCreate ()
	Open Reality Creation function.
virtual void	FBDestroy ()
	Open Reality destruction function.
virtual void	FBDelete () override
	Open Reality deletion function.
virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer.
virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager.
void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager.
void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
FBProperty *	PropertyCreate (const char *pName, FBPropertyType pType, const char *pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace.
virtual const char *	ClassName () override
	Get the class name.
virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not.
const char *	GetFullName (void)
	Get the full name.
void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object.
FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object.
FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object.
void	HardSelect ()
	HardSelect.
virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId.
virtual int	GetTypeId () override
	GetTypeId( int pTypeId )
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject.
void	AddWrapper (FBScriptWrapper *)
void	RemoveWrapper (FBScriptWrapper *)

Protected Attributes
FBTabPanel	mTabPanel
	Main tab panel.
FBLayout	mLayoutInstruments
	Instrument layout.
FBList	mListInstruments
	Instrument layout: List of instruments.
FBButton	mButtonActive
	Instrument layout: Active button.
FBButton	mButtonManualFov
	Instrument layout: Manual FOV control button.
FBLabel	mLabelFovX
	Instrument layout: FOV X label.
FBLabel	mLabelFovY
	Instrument layout: FOV Y label.
FBSlider	mSliderFovX
	Instrument layout: FOV X slider.
FBSlider	mSliderFovY
	Instrument layout: FOV Y slider..
FBEditNumber	mEditNumberFovX
	Instrument layout: FOV X numerical edit box.
FBEditNumber	mEditNumberFovY
	Instrument layout: FOV Y numerical edit box.
FBButton	mButtonManualCenter
	Instrument layout: Manual optical center button.
FBLabel	mLabelCenterX
	Instrument layout: Optical center X label.
FBLabel	mLabelCenterY
	Instrument layout: Optical center Y label.
FBSlider	mSliderCenterX
	Instrument layout: Optical center X slider.
FBSlider	mSliderCenterY
	Instrument layout: Optical center Y slider.
FBEditNumber	mEditNumberCenterX
	Instrument layout: Optical center X numberical edit box.
FBEditNumber	mEditNumberCenterY
	Instrument layout: Optical center Y numberical edit box.
FBLabel	mLabelOffsetT
	Instrument layout: Translation offset label.
FBLabel	mLabelOffsetR
	Instrument layout: Rotation offset label.
FBEditVector	mEditVectorOffsetT
	Instrument layout: Translation offset vector edit.
FBEditVector	mEditVectorOffsetR
	Instrument layout: Rotation offset vector edit.
FBButton	mButtonLoadLensfile
	Instrument layout: Load lensfile button.
FBButton	mButtonResetLensfile
	Instrument layout: Reset lensfile status button.
FBLabel	mLabelLensfileName
	Instrument layout: Lensfile filename label.
FBLabel	mLabelInversion
	Instrument layout: Inversion label.
FBButton	mButtonInvertZoom
	Instrument layout: Invert zoom toggle.
FBButton	mButtonInvertFocus
	Instrument layout: Invert focus toggle.
FBLabel	mLabelFovUnits
	Instrument layout: FOV units label.
FBButton	mButtonFovUnitsDeg
	Instrument layout: FOV in degrees button.
FBButton	mButtonFovUnitsRad
	Instrument layout: FOV in radians button.
FBLabel	mLabelNodalX
	Instrument layout: Nodal shift label.
FBSlider	mSliderNodalX
	Instrument layout: Nodal shift slider.
FBEditNumber	mEditNumberNodalX
	Instrument layout: Nodal shift numerical edit.
FBLabel	mLabelZoomX
	Instrument layout: Zoom multiplier label.
FBSlider	mSliderZoomX
	Instrument layout: Zoom multiplier slider.
FBEditNumber	mEditNumberZoomX
	Instrument layout: Zomm multiplier numerical edit.
FBLabel	mLabelAspectRatio
	Instrument layout: Aspect ratio label.
FBSlider	mSliderAspectRatio
	Instrument layout: Aspect ratio slider.
FBEditNumber	mEditNumberAspectRatio
	Instrument layout: Aspect ratio edit number.
FBLabel	mLabelAspectRatioPresets
	Instrument layout: Aspect ratio preset label.
FBList	mListAspectRatioPresets
	Instrument layout: Aspect ratio preset list.
FBLayout	mLayoutCommunication
	Communications layout.
FBLabel	mLabelSyncDelay
	Communications layout: Sync delay label.
FBSlider	mSliderSyncDelay
	Communications layout: Sync delay slider.
FBEditNumber	mEditNumberSyncDelay
	Communications layout: Sync delay numerical edit box.
FBButton	mButtonSyncInfo
	Communications layout: Sync information (debug) button.
FBButton	mButtonEnableSerial
	Communications layout: Enable serial button.
FBLabel	mLabelSerialPort
	Communications layout: Serial: Port label.
FBList	mListSerialPort
	Communications layout: Serial: Port list.
FBLabel	mLabelSerialBaudRate
	Communications layout: Serial: Baud rate label.
FBList	mListSerialBaudRate
	Communications layout: Serial: Baud rate list.
FBButton	mButtonEnableNetwork
	Communications layout: Enable network button.
FBLabel	mLabelNetworkAddress
	Communications layout: Network: Address label.
FBEdit	mEditNetworkAddress
	Communications layout: Network: Address text edit.
FBLabel	mLabelNetworkPort
	Communications layout: Network: Port label.
FBEdit	mEditNetworkPort
	Communications layout: Network: Port text edit.
FBLabel	mLabelNetworkProtocol
	Communications layout: Network: Protocol label.
FBList	mListNetworkProtocol
	Communications layout: Network: Protocol list.
FBButton	mButtonEnableSharedMemory
	Communications layout: Enable shared memory button.
FBLabel	mLabelHandle
	Communications layout: Shared Memory: Handle label.
FBEdit	mEditHandle
	Communications layout: Shared Memory: Handle text edit.
FBLabel	mLabelAddress
	Communications layout: Shared Memory: Address label.
FBEdit	mEditAddress
	Communications layout: Shared Memory: Address text edit.
FBButton	mButtonEnableSimulator
	Communications layout: Enable simulator button.
FBLabel	mLabelSimulatorFrequency
	Communications layout: Simulator: Frequency label.
FBSlider	mSliderSimulatorFrequency
	Communications layout: Simulator: Frequency slider.
FBEditNumber	mEditNumberSimulatorFrequency
	Communications layout: Simulator: Frequency numerical edit.
FBLabel	mLabelSimulatorAmplitude
	Communications layout: Simulator: Amplitude label.
FBSlider	mSliderSimulatorAmplitude
	Communications layout: Simulator: Amplitude slider.
FBEditNumber	mEditNumberSimulatorAmplitude
	Communications layout: Simulator: Amplitude numerical edit.
FBLabel	mLabelSimulatorZoom
	Communications layout: Simulator: Zoom label.
FBSlider	mSliderSimulatorZoom
	Communications layout: Simulator: Zoom slider.
FBEditNumber	mEditNumberSimulatorZoom
	Communications layout: Simulator: Zoom numerical edit.
FBLabel	mLabelSimulatorFocus
	Communications layout: Simulator: Focus label.
FBSlider	mSliderSimulatorFocus
	Communications layout: Simulator: Focus slider.
FBEditNumber	mEditNumberSimulatorFocus
	Communications layout: Simulator: Focus numerical edit.
FBLayout	mLayoutInfo
	Information layout.
FBSpread	mSpreadInfo
	Information layout: Spreadsheet.
FBLayout	mLayoutCustom
	Custom layout.
FBDeviceCamera *	mDeviceCamera
	Handle onto device.
FBPropertyInt	SupportedCommTypes
	Supported comm types.
FBPropertyBool	CustomLayout
	Custom layout?
Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component.
HIObject	mObject
	Handle on the Plug.
bool	mSDKComponent
	bool Plug is an SDK component.

Additional Inherited Members
Public Types inherited from FBLayout
enum	FBSplitStyle {   kFBNoSplit = 0 ,   kFBHSplit = 1 ,   kFBVSplit = 2 ,   kFBHVSplit = 3 }
	Type of split style (sub-division) for layout. More...
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()
static void	FBComponentSetName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetName (FBComponent *pObject)
static void	FBComponentSetLongName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetLongName (FBComponent *pObject)
Public Attributes inherited from FBDeviceLayout
FBPropertyDevice	Device
	Property(R-): Handle on device.
Public Attributes inherited from FBLayout
FBPropertyEvent	OnInput
	Event: Input.
FBPropertyEvent	OnPaint
	Event: Paint layout.
FBPropertyEvent	OnIdle
	Event: Idle.
FBPropertyEvent	OnShow
	Event: Show layout.
FBPropertyEvent	OnResize
	Event: Resize layout.
Public Attributes inherited from FBVisualComponent
struct FBVisualComponent::__Region	Region
struct K_DLLEXPORT FBVisualComponent::__Border	Border
FBPropertyString	Caption
	Property: Widget caption.
FBPropertyBool	Visible
	Read Write Property: Is visual component visible?
FBPropertyBool	ReadOnly
	Read Write Property: Is visual component read only?
FBPropertyBool	Enabled
	Read Write Property: Is visual enabled?
FBPropertyString	Hint
	Read Write Property: Hint to show.
FBPropertyInt	Left
	Read Write Property: Left coordinate.
FBPropertyInt	Top
	Read Write Property: Top coordinate.
FBPropertyInt	Width
	Read Write Property: Width.
FBPropertyInt	Height
	Read Write Property: Height.
FBPropertyEvent	OnEnter
	Event: On mouse enter.
FBPropertyEvent	OnExit
	Event: On mouse exit.
Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
FBPropertyListComponent	Components
	List: List of components.
FBPropertyListComponent	Parents
	List: Parents.
FBPropertyBool	Selected
	Read Write Property: Selected property.
FBPropertyString	Name
	Read Write Property: Unique name of object.
FBPropertyString	LongName
	Read Write Property: Name and namespace for object.
FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component.
Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object.
Protected Member Functions inherited from FBVisualComponent
virtual HIKtObject	GetHIKtObject ()
	Get internal toolkit object.
Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.
bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection.
bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection.
void	DisconnectAllSrc ()
	Remove all source connections.
void	DisconnectAllDst ()
	Remove all destination connections.
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index.
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index.
bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index.
bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index.
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.
bool	MoveSrcAt (FBPlug *pSrc, FBPlug *pAtSrc)
	Move source connection pSrc to the position of pAtSrc.
int	GetSrcCount ()
	Get source connection count.
FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index.
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index.
int	GetDstCount ()
	Get destination connection count.
FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index.
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index.
bool	BeginChange ()
	Begins a change on multiple plugs.
void	EndChange ()
	Ends a change on multiple plugs.
void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag.
bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed.
void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag.
bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed.
int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List.
bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status.
void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag.
bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed.
FBPlug *	GetOwner ()
	Get the owner of this plug.
FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index.
int	GetOwnedCount ()
	Get the owned plug count.
virtual const char *	ClassName ()
	internal System vars.
virtual bool	Is (int pTypeId)
	Is( int pTypeId )
virtual int	GetTypeId ()
	GetTypeId( int pTypeId )
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.
virtual void	FBDelete ()
	Actual destructor for a FBPlug.
Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id.
Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object.
static int	TypeInfo
	TypeInfo.
static int	mGlobalTypeInfo
	Represente the Type Index.

Detailed Description

Camera device layout.

Definition at line 176 of file fbdevicelayout.h.

Member Function Documentation

FBCreate()

virtual bool FBCreate ( )

overridevirtual

Open Reality Constructor.

Reimplemented from FBComponent.

FBDestroy()

virtual void FBDestroy ( )

overridevirtual

Open Reality Destructor.

Reimplemented from FBComponent.

GetCurrentInstrument()

virtual FBDeviceCameraInstrument * GetCurrentInstrument ( )

virtual

Get the current selected instrument.

This function may return NULL if no instrument is selected.

Returns

Pointer to current device instrument (selected item).

OnAspectRatioChange()

virtual void OnAspectRatioChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Aspect ratio change.

OnAspectRatioEditNumberChange()

virtual void OnAspectRatioEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Aspect ratio numerical change.

OnAspectRatioPresetChange()

virtual void OnAspectRatioPresetChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Aspect ratio preset selection.

OnAspectRatioSliderChange()

virtual void OnAspectRatioSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Aspect ratio slider change.

OnButtonActiveClick()

virtual void OnButtonActiveClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Activate button click.

OnButtonLoadLensfileClick()

virtual void OnButtonLoadLensfileClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Load lensfile button click.

OnButtonManualCenterClick()

virtual void OnButtonManualCenterClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Manual Optical center toggle.

OnButtonManualChange()

virtual void OnButtonManualChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Manual (FOV or Optical center) button click.

OnButtonManualFovClick()

virtual void OnButtonManualFovClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Manual FOV toggle.

OnButtonResetLensfileClick()

virtual void OnButtonResetLensfileClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Reset lensfile button click.

OnButtonSyncInfoClick()

virtual void OnButtonSyncInfoClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Sync debug info click.

OnCenterChange()

virtual void OnCenterChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Optical center change.

OnCenterXEditNumberChange()

virtual void OnCenterXEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Optical center X numerical change.

OnCenterXSliderChange()

virtual void OnCenterXSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Optical center X slider change.

OnCenterYEditNumberChange()

virtual void OnCenterYEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Optical center Y numerical change.

OnCenterYSliderChange()

virtual void OnCenterYSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Optical center Y slider change.

OnDeviceStatusChange()

virtual void OnDeviceStatusChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Device status change .

OnEnableChange()

virtual void OnEnableChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Enable comm type change.

OnEnableNetworkClick()

virtual void OnEnableNetworkClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Enable network communication.

OnEnableSerialClick()

virtual void OnEnableSerialClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Enable serial communication.

OnEnableSharedMemoryClick()

virtual void OnEnableSharedMemoryClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Enable simulator.

OnEnableSimulatorClick()

virtual void OnEnableSimulatorClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Enable simulator communication.

OnFovChange()

virtual void OnFovChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV change.

OnFovUnitsChange()

virtual void OnFovUnitsChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV units change.

OnFovUnitsDegClick()

virtual void OnFovUnitsDegClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV units to degrees.

OnFovUnitsRadClick()

virtual void OnFovUnitsRadClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV units to radians.

OnFovXEditNumberChange()

virtual void OnFovXEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV X numerical change.

OnFovXSliderChange()

virtual void OnFovXSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV X slider change.

OnFovYEditNumberChange()

virtual void OnFovYEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV Y numerical change.

OnFovYSliderChange()

virtual void OnFovYSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: FOV Y slider change.

OnInvertChange()

virtual void OnInvertChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Invert values change.

OnInvertFocusClick()

virtual void OnInvertFocusClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Invert focus toggle.

OnInvertZoomClick()

virtual void OnInvertZoomClick ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Invert zoom toggle.

OnLensfileChange()

virtual void OnLensfileChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Lensfile change.

OnListInstrumentsChange()

virtual void OnListInstrumentsChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Instrument list.

OnNetworkAddressChange()

virtual void OnNetworkAddressChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Network address change.

OnNetworkChange()

virtual void OnNetworkChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Network state change.

OnNetworkPortChange()

virtual void OnNetworkPortChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Network port change.

OnNetworkProtocolChange()

virtual void OnNetworkProtocolChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Network protocol change.

OnNodalXChange()

virtual void OnNodalXChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Nodal shift change.

OnNodalXEditNumberChange()

virtual void OnNodalXEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Nodal shift numerical change.

OnNodalXSliderChange()

virtual void OnNodalXSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Nodal shift slider change.

OnOffsetChange()

virtual void OnOffsetChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Offset change.

OnOffsetRChange()

virtual void OnOffsetRChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Rotation offset change.

OnOffsetTChange()

virtual void OnOffsetTChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Translation offset change.

OnSerialBaudRateChange()

virtual void OnSerialBaudRateChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Serial baud rate change.

OnSerialChange()

virtual void OnSerialChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Serial state change.

OnSerialPortChange()

virtual void OnSerialPortChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Serial port change.

OnSharedMemoryAddressChange()

virtual void OnSharedMemoryAddressChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Shared memory address change.

OnSharedMemoryChange()

virtual void OnSharedMemoryChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Shared memory state change.

OnSharedMemoryHandleChange()

virtual void OnSharedMemoryHandleChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Shared memory handle change.

OnSimulatorAmplitudeEditNumberChange()

virtual void OnSimulatorAmplitudeEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator amplitude numerical change.

OnSimulatorAmplitudeSliderChange()

virtual void OnSimulatorAmplitudeSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator amplitude slider change.

OnSimulatorChange()

virtual void OnSimulatorChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator state change.

OnSimulatorFocusEditNumberChange()

virtual void OnSimulatorFocusEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator focus numerical change.

OnSimulatorFocusSliderChange()

virtual void OnSimulatorFocusSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator focus slider change.

OnSimulatorFrequencyEditNumberChange()

virtual void OnSimulatorFrequencyEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator frequency numerical change.

OnSimulatorFrequencySliderChange()

virtual void OnSimulatorFrequencySliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator frequency slider change.

OnSimulatorZoomEditNumberChange()

virtual void OnSimulatorZoomEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator zoom numerical change.

OnSimulatorZoomSliderChange()

virtual void OnSimulatorZoomSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Simulator zoom slider change.

OnSyncDelayChange()

virtual void OnSyncDelayChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Sync delay change.

OnSyncDelayEditNumberChange()

virtual void OnSyncDelayEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Sync delay numerical change.

OnSyncDelaySliderChange()

virtual void OnSyncDelaySliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Sync delay slider change.

OnTabPanelChange()

virtual void OnTabPanelChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Tab panel selection.

OnUIIdle()

virtual void OnUIIdle ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: UI Idle.

OnZoomXChange()

virtual void OnZoomXChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Zoom multiplier change.

OnZoomXEditNumberChange()

virtual void OnZoomXEditNumberChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Zoom multiplier numerical change.

OnZoomXSliderChange()

virtual void OnZoomXSliderChange ( HISender  pSender, HKEvent  pEvent  )

virtual

Callback: Zoom multiplier slider change.

UIConfigure()

virtual void UIConfigure ( )

virtual

Configure UI elements.

UIConfigureLayoutCommunication()

virtual void UIConfigureLayoutCommunication ( )

virtual

UIConfigure: Communications layout.

UIConfigureLayoutCustom()

virtual void UIConfigureLayoutCustom ( )

virtual

UIConfigure: Custom layout.

UIConfigureLayoutInfo()

virtual void UIConfigureLayoutInfo ( )

virtual

UIConfigure: Information layout.

UIConfigureLayoutInstruments()

virtual void UIConfigureLayoutInstruments ( )

virtual

UIConfigure: Instrument layout.

UICreate()

virtual void UICreate ( )

virtual

Create and assign UI regions.

UICreateLayoutCommunication()

virtual void UICreateLayoutCommunication ( )

virtual

UICreate: Communication layout.

UICreateLayoutCustom()

virtual void UICreateLayoutCustom ( )

virtual

UICreate: Custom layout.

UICreateLayoutInfo()

virtual void UICreateLayoutInfo ( )

virtual

UICreate: Information layout.

UICreateLayoutInstruments()

virtual void UICreateLayoutInstruments ( )

virtual

UICreate: Instrument layout.

UIRefresh()

virtual void UIRefresh ( )

virtual

Idle refresh.

UIRefreshLayoutCommunications()

virtual void UIRefreshLayoutCommunications ( )

virtual

UIRefresh: Communications layout.

UIRefreshLayoutCustom()

virtual void UIRefreshLayoutCustom ( )

virtual

UIRefresh: Custom layout.

UIRefreshLayoutInstruments()

virtual void UIRefreshLayoutInstruments ( )

virtual

UIRefresh: Instrument layout.

UIReset()

virtual void UIReset ( )

virtual

Reset from device values.

UIResetLayoutCommunications()

virtual void UIResetLayoutCommunications ( )

virtual

UIReset: Communications layout.

UIResetLayoutCustom()

virtual void UIResetLayoutCustom ( )

virtual

UIReset: Custom layout.

UIResetLayoutInstruments()

virtual void UIResetLayoutInstruments ( )

virtual

UIReset: Instrument layout.

UIUpdateEnabled()

virtual void UIUpdateEnabled ( )

virtual

Update enabled on functions.

Member Data Documentation

CustomLayout

FBPropertyBool CustomLayout

protected

Custom layout?

Definition at line 404 of file fbdevicelayout.h.

mButtonActive

FBButton mButtonActive

protected

Instrument layout: Active button.

Definition at line 220 of file fbdevicelayout.h.

mButtonEnableNetwork

FBButton mButtonEnableNetwork

protected

Communications layout: Enable network button.

Definition at line 285 of file fbdevicelayout.h.

mButtonEnableSerial

FBButton mButtonEnableSerial

protected

Communications layout: Enable serial button.

Definition at line 278 of file fbdevicelayout.h.

mButtonEnableSharedMemory

FBButton mButtonEnableSharedMemory

protected

Communications layout: Enable shared memory button.

Definition at line 294 of file fbdevicelayout.h.

mButtonEnableSimulator

FBButton mButtonEnableSimulator

protected

Communications layout: Enable simulator button.

Definition at line 301 of file fbdevicelayout.h.

mButtonFovUnitsDeg

FBButton mButtonFovUnitsDeg

protected

Instrument layout: FOV in degrees button.

Definition at line 254 of file fbdevicelayout.h.

mButtonFovUnitsRad

FBButton mButtonFovUnitsRad

protected

Instrument layout: FOV in radians button.

Definition at line 255 of file fbdevicelayout.h.

mButtonInvertFocus

FBButton mButtonInvertFocus

protected

Instrument layout: Invert focus toggle.

Definition at line 252 of file fbdevicelayout.h.

mButtonInvertZoom

FBButton mButtonInvertZoom

protected

Instrument layout: Invert zoom toggle.

Definition at line 251 of file fbdevicelayout.h.

mButtonLoadLensfile

FBButton mButtonLoadLensfile

protected

Instrument layout: Load lensfile button.

Definition at line 247 of file fbdevicelayout.h.

mButtonManualCenter

FBButton mButtonManualCenter

protected

Instrument layout: Manual optical center button.

Definition at line 232 of file fbdevicelayout.h.

mButtonManualFov

FBButton mButtonManualFov

protected

Instrument layout: Manual FOV control button.

Definition at line 223 of file fbdevicelayout.h.

mButtonResetLensfile

FBButton mButtonResetLensfile

protected

Instrument layout: Reset lensfile status button.

Definition at line 248 of file fbdevicelayout.h.

mButtonSyncInfo

FBButton mButtonSyncInfo

protected

Communications layout: Sync information (debug) button.

Definition at line 275 of file fbdevicelayout.h.

mDeviceCamera

FBDeviceCamera* mDeviceCamera

protected

Handle onto device.

Definition at line 402 of file fbdevicelayout.h.

mEditAddress

FBEdit mEditAddress

protected

Communications layout: Shared Memory: Address text edit.

Definition at line 298 of file fbdevicelayout.h.

mEditHandle

FBEdit mEditHandle

protected

Communications layout: Shared Memory: Handle text edit.

Definition at line 296 of file fbdevicelayout.h.

mEditNetworkAddress

FBEdit mEditNetworkAddress

protected

Communications layout: Network: Address text edit.

Definition at line 287 of file fbdevicelayout.h.

mEditNetworkPort

FBEdit mEditNetworkPort

protected

Communications layout: Network: Port text edit.

Definition at line 289 of file fbdevicelayout.h.

mEditNumberAspectRatio

FBEditNumber mEditNumberAspectRatio

protected

Instrument layout: Aspect ratio edit number.

Definition at line 266 of file fbdevicelayout.h.

mEditNumberCenterX

FBEditNumber mEditNumberCenterX

protected

Instrument layout: Optical center X numberical edit box.

Definition at line 237 of file fbdevicelayout.h.

mEditNumberCenterY

FBEditNumber mEditNumberCenterY

protected

Instrument layout: Optical center Y numberical edit box.

Definition at line 238 of file fbdevicelayout.h.

mEditNumberFovX

FBEditNumber mEditNumberFovX

protected

Instrument layout: FOV X numerical edit box.

Definition at line 228 of file fbdevicelayout.h.

mEditNumberFovY

FBEditNumber mEditNumberFovY

protected

Instrument layout: FOV Y numerical edit box.

Definition at line 229 of file fbdevicelayout.h.

mEditNumberNodalX

FBEditNumber mEditNumberNodalX

protected

Instrument layout: Nodal shift numerical edit.

Definition at line 258 of file fbdevicelayout.h.

mEditNumberSimulatorAmplitude

FBEditNumber mEditNumberSimulatorAmplitude

protected

Communications layout: Simulator: Amplitude numerical edit.

Definition at line 307 of file fbdevicelayout.h.

mEditNumberSimulatorFocus

FBEditNumber mEditNumberSimulatorFocus

protected

Communications layout: Simulator: Focus numerical edit.

Definition at line 313 of file fbdevicelayout.h.

mEditNumberSimulatorFrequency

FBEditNumber mEditNumberSimulatorFrequency

protected

Communications layout: Simulator: Frequency numerical edit.

Definition at line 304 of file fbdevicelayout.h.

mEditNumberSimulatorZoom

FBEditNumber mEditNumberSimulatorZoom

protected

Communications layout: Simulator: Zoom numerical edit.

Definition at line 310 of file fbdevicelayout.h.

mEditNumberSyncDelay

FBEditNumber mEditNumberSyncDelay

protected

Communications layout: Sync delay numerical edit box.

Definition at line 274 of file fbdevicelayout.h.

mEditNumberZoomX

FBEditNumber mEditNumberZoomX

protected

Instrument layout: Zomm multiplier numerical edit.

Definition at line 261 of file fbdevicelayout.h.

mEditVectorOffsetR

FBEditVector mEditVectorOffsetR

protected

Instrument layout: Rotation offset vector edit.

Definition at line 244 of file fbdevicelayout.h.

mEditVectorOffsetT

FBEditVector mEditVectorOffsetT

protected

Instrument layout: Translation offset vector edit.

Definition at line 243 of file fbdevicelayout.h.

mLabelAddress

FBLabel mLabelAddress

protected

Communications layout: Shared Memory: Address label.

Definition at line 297 of file fbdevicelayout.h.

mLabelAspectRatio

FBLabel mLabelAspectRatio

protected

Instrument layout: Aspect ratio label.

Definition at line 264 of file fbdevicelayout.h.

mLabelAspectRatioPresets

FBLabel mLabelAspectRatioPresets

protected

Instrument layout: Aspect ratio preset label.

Definition at line 267 of file fbdevicelayout.h.

mLabelCenterX

FBLabel mLabelCenterX

protected

Instrument layout: Optical center X label.

Definition at line 233 of file fbdevicelayout.h.

mLabelCenterY

FBLabel mLabelCenterY

protected

Instrument layout: Optical center Y label.

Definition at line 234 of file fbdevicelayout.h.

mLabelFovUnits

FBLabel mLabelFovUnits

protected

Instrument layout: FOV units label.

Definition at line 253 of file fbdevicelayout.h.

mLabelFovX

FBLabel mLabelFovX

protected

Instrument layout: FOV X label.

Definition at line 224 of file fbdevicelayout.h.

mLabelFovY

FBLabel mLabelFovY

protected

Instrument layout: FOV Y label.

Definition at line 225 of file fbdevicelayout.h.

mLabelHandle

FBLabel mLabelHandle

protected

Communications layout: Shared Memory: Handle label.

Definition at line 295 of file fbdevicelayout.h.

mLabelInversion

FBLabel mLabelInversion

protected

Instrument layout: Inversion label.

Definition at line 250 of file fbdevicelayout.h.

mLabelLensfileName

FBLabel mLabelLensfileName

protected

Instrument layout: Lensfile filename label.

Definition at line 249 of file fbdevicelayout.h.

mLabelNetworkAddress

FBLabel mLabelNetworkAddress

protected

Communications layout: Network: Address label.

Definition at line 286 of file fbdevicelayout.h.

mLabelNetworkPort

FBLabel mLabelNetworkPort

protected

Communications layout: Network: Port label.

Definition at line 288 of file fbdevicelayout.h.

mLabelNetworkProtocol

FBLabel mLabelNetworkProtocol

protected

Communications layout: Network: Protocol label.

Definition at line 290 of file fbdevicelayout.h.

mLabelNodalX

FBLabel mLabelNodalX

protected

Instrument layout: Nodal shift label.

Definition at line 256 of file fbdevicelayout.h.

mLabelOffsetR

FBLabel mLabelOffsetR

protected

Instrument layout: Rotation offset label.

Definition at line 242 of file fbdevicelayout.h.

mLabelOffsetT

FBLabel mLabelOffsetT

protected

Instrument layout: Translation offset label.

Definition at line 241 of file fbdevicelayout.h.

mLabelSerialBaudRate

FBLabel mLabelSerialBaudRate

protected

Communications layout: Serial: Baud rate label.

Definition at line 281 of file fbdevicelayout.h.

mLabelSerialPort

FBLabel mLabelSerialPort

protected

Communications layout: Serial: Port label.

Definition at line 279 of file fbdevicelayout.h.

mLabelSimulatorAmplitude

FBLabel mLabelSimulatorAmplitude

protected

Communications layout: Simulator: Amplitude label.

Definition at line 305 of file fbdevicelayout.h.

mLabelSimulatorFocus

FBLabel mLabelSimulatorFocus

protected

Communications layout: Simulator: Focus label.

Definition at line 311 of file fbdevicelayout.h.

mLabelSimulatorFrequency

FBLabel mLabelSimulatorFrequency

protected

Communications layout: Simulator: Frequency label.

Definition at line 302 of file fbdevicelayout.h.

mLabelSimulatorZoom

FBLabel mLabelSimulatorZoom

protected

Communications layout: Simulator: Zoom label.

Definition at line 308 of file fbdevicelayout.h.

mLabelSyncDelay

FBLabel mLabelSyncDelay

protected

Communications layout: Sync delay label.

Definition at line 272 of file fbdevicelayout.h.

mLabelZoomX

FBLabel mLabelZoomX

protected

Instrument layout: Zoom multiplier label.

Definition at line 259 of file fbdevicelayout.h.

mLayoutCommunication

FBLayout mLayoutCommunication

protected

Communications layout.

Definition at line 270 of file fbdevicelayout.h.

mLayoutCustom

FBLayout mLayoutCustom

protected

Custom layout.

Definition at line 318 of file fbdevicelayout.h.

mLayoutInfo

FBLayout mLayoutInfo

protected

Information layout.

Definition at line 315 of file fbdevicelayout.h.

mLayoutInstruments

FBLayout mLayoutInstruments

protected

Instrument layout.

Definition at line 218 of file fbdevicelayout.h.

mListAspectRatioPresets

FBList mListAspectRatioPresets

protected

Instrument layout: Aspect ratio preset list.

Definition at line 268 of file fbdevicelayout.h.

mListInstruments

FBList mListInstruments

protected

Instrument layout: List of instruments.

Definition at line 219 of file fbdevicelayout.h.

mListNetworkProtocol

FBList mListNetworkProtocol

protected

Communications layout: Network: Protocol list.

Definition at line 291 of file fbdevicelayout.h.

mListSerialBaudRate

FBList mListSerialBaudRate

protected

Communications layout: Serial: Baud rate list.

Definition at line 282 of file fbdevicelayout.h.

mListSerialPort

FBList mListSerialPort

protected

Communications layout: Serial: Port list.

Definition at line 280 of file fbdevicelayout.h.

mSliderAspectRatio

FBSlider mSliderAspectRatio

protected

Instrument layout: Aspect ratio slider.

Definition at line 265 of file fbdevicelayout.h.

mSliderCenterX

FBSlider mSliderCenterX

protected

Instrument layout: Optical center X slider.

Definition at line 235 of file fbdevicelayout.h.

mSliderCenterY

FBSlider mSliderCenterY

protected

Instrument layout: Optical center Y slider.

Definition at line 236 of file fbdevicelayout.h.

mSliderFovX

FBSlider mSliderFovX

protected

Instrument layout: FOV X slider.

Definition at line 226 of file fbdevicelayout.h.

mSliderFovY

FBSlider mSliderFovY

protected

Instrument layout: FOV Y slider..

Definition at line 227 of file fbdevicelayout.h.

mSliderNodalX

FBSlider mSliderNodalX

protected

Instrument layout: Nodal shift slider.

Definition at line 257 of file fbdevicelayout.h.

mSliderSimulatorAmplitude

FBSlider mSliderSimulatorAmplitude

protected

Communications layout: Simulator: Amplitude slider.

Definition at line 306 of file fbdevicelayout.h.

mSliderSimulatorFocus

FBSlider mSliderSimulatorFocus

protected

Communications layout: Simulator: Focus slider.

Definition at line 312 of file fbdevicelayout.h.

mSliderSimulatorFrequency

FBSlider mSliderSimulatorFrequency

protected

Communications layout: Simulator: Frequency slider.

Definition at line 303 of file fbdevicelayout.h.

mSliderSimulatorZoom

FBSlider mSliderSimulatorZoom

protected

Communications layout: Simulator: Zoom slider.

Definition at line 309 of file fbdevicelayout.h.

mSliderSyncDelay

FBSlider mSliderSyncDelay

protected

Communications layout: Sync delay slider.

Definition at line 273 of file fbdevicelayout.h.

mSliderZoomX

FBSlider mSliderZoomX

protected

Instrument layout: Zoom multiplier slider.

Definition at line 260 of file fbdevicelayout.h.

mSpreadInfo

FBSpread mSpreadInfo

protected

Information layout: Spreadsheet.

Definition at line 316 of file fbdevicelayout.h.

mTabPanel

FBTabPanel mTabPanel

protected

Main tab panel.

Definition at line 216 of file fbdevicelayout.h.

SupportedCommTypes

FBPropertyInt SupportedCommTypes

protected

Supported comm types.

Definition at line 403 of file fbdevicelayout.h.

---

The documentation for this class was generated from the following file:

• fbdevicelayout.h
