SimpleWSMMod Class Reference

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/simpmod.h>

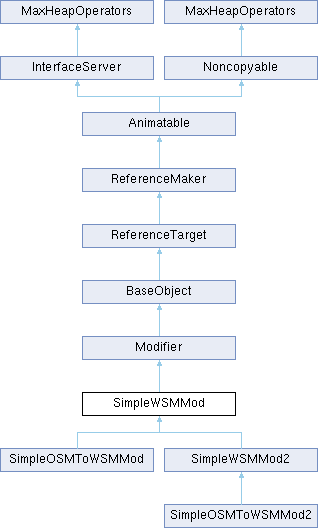

Inheritance diagram for SimpleWSMMod:

Public Member Functions
CoreExport	SimpleWSMMod ()
virtual CoreExport	~SimpleWSMMod ()
ChannelMask	ChannelsUsed ()
	These are channels that the modifier needs in order to perform its modification.
ChannelMask	ChannelsChanged ()
	These are the channels that the modifier actually modifies.
CoreExport void	ModifyObject (TimeValue t, ModContext &mc, ObjectState *os, INode *node)
	This is the method that actually modifies the input object.
Class_ID	InputType ()
	This is the type of object that the modifier knows how to modify.
CoreExport Interval	LocalValidity (TimeValue t)
	This method returns the validity interval of a modifier.
BOOL	ChangeTopology ()
	This method asks the question of an object or modifier "Do you change topology"?
CreateMouseCallBack *	GetCreateMouseCallBack ()
	This method allows the system to retrieve a callback object used in creating an object in the 3D viewports.
int	NumRefs ()
	Returns the total number of references this ReferenceMaker can hold.
CoreExport RefTargetHandle	GetReference (int i)
	Returns the 'i-th' reference.
int	NumSubs ()
CoreExport Animatable *	SubAnim (int i)
CoreExport MSTR	SubAnimName (int i, bool localized=true) override
CoreExport RefResult	NotifyRefChanged (const Interval &changeInt, RefTargetHandle hTarget, PartID &partID, RefMessage message, BOOL propagate)
	Receives and responds to messages.
CoreExport IParamArray *	GetParamBlock ()
	An object or modifier should implement this method if it wishes to make its parameter block available for other plug-ins to access it.
CoreExport int	GetParamBlockIndex (int id)
	If a plug-in makes its parameter block available (using GetParamBlock()) then it will need to provide #defines for indices into the parameter block.
CoreExport WSMObject *	GetWSMObject (TimeValue t)
CoreExport void	SimpleWSMModClone (SimpleWSMMod *smodSource, RemapDir &remap)
	When clients are cloning themselves, they should call this method on the clone to copy SimpleWSMMod's data.
CoreExport void	BeginEditParams (IObjParam *objParam, ULONG flags, Animatable *prev)
	Clients of SimpleWSMMod probably want to override these.
CoreExport void	EndEditParams (IObjParam *objParam, ULONG flags, Animatable *next)
virtual Deformer &	GetDeformer (TimeValue t, ModContext &mc, Matrix3 &mat, Matrix3 &invmat)=0
virtual void	InvalidateUI ()
virtual Interval	GetValidity (TimeValue t)
virtual ParamDimension *	GetParameterDim (int pbIndex)
virtual MSTR	GetParameterName (int pbIndex, bool localized)
virtual void	InvalidateParamMap ()
CoreExport SvGraphNodeReference	SvTraverseAnimGraph (IGraphObjectManager *gom, Animatable *owner, int id, DWORD flags)
Public Member Functions inherited from Modifier
CoreExport	Modifier ()
CoreExport	~Modifier ()
SClass_ID	SuperClassID () override
	Retrieves a constant representing the type of the plugin.
virtual void	ForceNotify (Interval &i) override
	Notifies dependents of a change.
CoreExport MSTR	SvGetName (IGraphObjectManager *gom, IGraphNode *gNode, bool isBeingEdited) override
CoreExport bool	SvCanSetName (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvSetName (IGraphObjectManager *gom, IGraphNode *gNode, const MSTR &name) override
CoreExport bool	SvHandleDoubleClick (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport COLORREF	SvHighlightColor (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvIsSelected (IGraphObjectManager *gom, IGraphNode *gNode) override
	Returns true if the object is selected in its schematic view.
CoreExport MultiSelectCallback *	SvGetMultiSelectCallback (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvCanSelect (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvCanInitiateLink (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvCanConcludeLink (IGraphObjectManager *gom, IGraphNode *gNode, IGraphNode *gNodeChild) override
CoreExport bool	SvLinkChild (IGraphObjectManager *gom, IGraphNode *gNodeThis, IGraphNode *gNodeChild) override
CoreExport bool	SvCanRemoveThis (IGraphObjectManager *gom, IGraphNode *gNode) override
CoreExport bool	SvRemoveThis (IGraphObjectManager *gom, IGraphNode *gNode) override
	Called when the user deletes this object in the schematic view...
virtual CoreExport MSTR	GetName (bool localized) const
	Implemented by the System.
virtual CoreExport void	SetName (MSTR n)
	Implemented by the System.
virtual void	DisableModApps ()
	This method is used internally.
virtual void	EnableModApps ()
	This method is used internally.
virtual CoreExport void	DisableMod ()
	Implemented by the System.
virtual CoreExport void	EnableMod ()
	Implemented by the System.
virtual int	IsEnabled ()
	Implemented by the System.
virtual CoreExport void	DisableModInViews ()
	Implemented by the System.
virtual CoreExport void	EnableModInViews ()
	Implemented by the System.
virtual int	IsEnabledInViews ()
	Implemented by the System.
virtual CoreExport void	DisableModInRender ()
	Implemented by the System.
virtual CoreExport void	EnableModInRender ()
	Implemented by the System.
virtual int	IsEnabledInRender ()
	Implemented by the System.
virtual bool	ChangesSelType ()
	If a modifier want to make it possible to switch dynamically between changing the selection type that flows up the stack, or leaving it like it is, it can overwrite this.
virtual CoreExport ChannelMask	TotalChannelsUsed ()
	Returns the same value as ChannelsUsed() above except GFX_DATA_CHANNEL will be ORed in if the TOPO_CHANNEL or the TEXMAP_CHANNEL are being used.
virtual CoreExport ChannelMask	TotalChannelsChanged ()
	Returns the same value as ChannelsChanged() above except GFX_DATA_CHANNEL will be ORed in if the TOPO_CHANNEL, the TEXMAP_CHANNEL , or the VERTCOLOR_CHANNEL are being changed.
virtual bool	AnyObjectFilter (Object *object) const
	When InputType() returns anyObjectClassID, this method is used to determine whether the modifier can be applied to a specific object.
virtual void	NotifyInputChanged (const Interval &changeInt, PartID partID, RefMessage message, ModContext *mc)
	This method is called when an item in the modifier stack before this modifier sends a REFMSG_CHANGE message via NotifyDependents().
virtual BOOL	DependOnTopology (ModContext &mc)
	Modifiers that place a dependency on topology should return TRUE for this method.
virtual IOResult	SaveLocalData (ISave *isave, LocalModData *ld)
	When a 3ds Max file is being saved, this method is called so that the modifier can save the localData structure that is hung off each ModContext.
virtual IOResult	LoadLocalData (ILoad *iload, LocalModData **pld)
	When a 3ds Max file is being loaded, this method is called so that the modifier can load the LocalModData structure that is hung off each ModContext.
CoreExport IOResult	Save (ISave *isave) override
	Implemented by the System.
CoreExport IOResult	Load (ILoad *iload) override
	Implemented by the System.
virtual bool	ShouldCollapseOnSave ()
	In cases where a modifier does not exist in the specified save version returned by GetSavingVersion(), or where a modifier employs new functionality which cannot be retained in the specified save version, it may return true to indicate that the owning object should be saved in a state with its modifier stack collapsed at least up to this modifier.
virtual CoreExport void	EnumModContexts (ModContextEnumProc *proc)
	Implemented by the System.
virtual CoreExport void	GetIDerivedObject (ModContext *mc, IDerivedObject *&derObj, int &modIndex)
	This method will retrieve the IDerivedObject and index of this modifier for a given modifier context.
virtual CoreExport void	CopyAdditionalChannels (Object *fromObj, Object *toObj)
	In case the modifier changes the object type (basically the os->obj pointer in ModifyObject) and changes the ExtensionChannel, it has to overwrite this method and copy only the channels that it doesn't modify/added already to the new object.
CoreExport INode *	GetNodeFromModData (LocalModData *data, int &index)
	This function allows modifiers to find the nodes they are modifying.
CoreExport INode *	GetNodeFromModContext (ModContext *mc, int &index)
	This function allows modifiers to find the nodes they are modifying.
Public Member Functions inherited from BaseObject
virtual CoreExport unsigned long	GetObjectDisplayRequirement () const
virtual CoreExport bool	PrepareDisplay (const MaxSDK::Graphics::UpdateDisplayContext &prepareDisplayContext)
virtual CoreExport bool	UpdatePerNodeItems (const MaxSDK::Graphics::UpdateDisplayContext &updateDisplayContext, MaxSDK::Graphics::UpdateNodeContext &nodeContext, MaxSDK::Graphics::IRenderItemContainer &targetRenderItemContainer)
virtual CoreExport bool	UpdatePerViewItems (const MaxSDK::Graphics::UpdateDisplayContext &updateDisplayContext, MaxSDK::Graphics::UpdateNodeContext &nodeContext, MaxSDK::Graphics::UpdateViewContext &viewContext, MaxSDK::Graphics::IRenderItemContainer &targetRenderItemContainer)
virtual CoreExport const MaxSDK::Graphics::RenderItemHandleArray &	GetRenderItems () const
virtual CoreExport void *	GetInterface (ULONG id) override
virtual CoreExport BaseInterface *	GetInterface (Interface_ID id) override
CoreExport	BaseObject ()
virtual CoreExport	~BaseObject ()
virtual BOOL	HasViewDependentBoundingBox ()
	This method return true if GetWorldBoundBox returns different boxes for different viewports.
virtual int	HitTest (TimeValue t, INode *inode, int type, int crossing, int flags, IPoint2 *p, ViewExp *vpt)
	This method is called to determine if the specified screen point intersects the item.
virtual void	SetExtendedDisplay (int flags)
	This method is used for storing mode-dependent display attributes.
virtual int	Display (TimeValue t, INode *inode, ViewExp *vpt, int flags)
	This is called by the system to have the item display itself (perform a quick render in viewport, using the current TM).
virtual void	Snap (TimeValue t, INode *inode, SnapInfo *snap, IPoint2 *p, ViewExp *vpt)
	Checks the point passed for a snap and updates the SnapInfo structure.
virtual void	GetWorldBoundBox (TimeValue t, INode *inode, ViewExp *vp, Box3 &box)
	This method returns the world space bounding box for Objects (see below for the Sub-object gizmo or Modifiers gizmo version).
virtual void	GetLocalBoundBox (TimeValue t, INode *inode, ViewExp *vp, Box3 &box)
	This is the object space bounding box, the box in the object's local coordinates.
virtual const MCHAR *	GetObjectName (bool localized) const
virtual CoreExport BOOL	OKToChangeTopology (MSTR &modName)
	Implemented by the System.
virtual IParamBlock2 *	GetParamBlock (int i) override
	An object or modifier should implement this method if it wishes to make its parameter block available for other plug-ins to access it.
virtual void	Move (TimeValue t, Matrix3 &partm, Matrix3 &tmAxis, Point3 &val, BOOL localOrigin=FALSE)
	When this method is called the plug-in should respond by moving its selected sub-object components.
virtual void	Rotate (TimeValue t, Matrix3 &partm, Matrix3 &tmAxis, Quat &val, BOOL localOrigin=FALSE)
	When this method is called the plug-in should respond by rotating its selected sub-object components.
virtual void	Scale (TimeValue t, Matrix3 &partm, Matrix3 &tmAxis, Point3 &val, BOOL localOrigin=FALSE)
	When this method is called the plug-in should respond by scaling its selected sub-object components.
virtual void	TransformStart (TimeValue t)
	This method is called before the first Move(), Rotate() or Scale() call and before a hold is in effect.
virtual void	TransformHoldingStart (TimeValue t)
	This method is called before the first Move(), Rotate() or Scale() call and after a hold is in effect.
virtual void	TransformHoldingFinish (TimeValue t)
	This method is called after the user has completed the Move(), Rotate() or Scale() operation and before the undo object has been accepted.
virtual void	TransformFinish (TimeValue t)
	This method is called after the user has completed the Move(), Rotate() or Scale() operation and the undo object has been accepted.
virtual void	TransformCancel (TimeValue t)
	This method is called when the transform operation is canceled by a right-click and the undo has been canceled.
virtual int	HitTest (TimeValue t, INode *inode, int type, int crossing, int flags, IPoint2 *p, ViewExp *vpt, ModContext *mc)
	This method is used in modifier gizmo hit testing.
virtual int	Display (TimeValue t, INode *inode, ViewExp *vpt, int flags, ModContext *mc)
	When this method is called the plug-in should respond by performing a quick render of the modifier gizmo in viewport using the current TM.
virtual void	GetWorldBoundBox (TimeValue t, INode *inode, ViewExp *vpt, Box3 &box, ModContext *mc)
	This method computes the world space bounding box of the modifier gizmo (or any object that when in sub-object mode has a gizmo).
virtual void	CloneSelSubComponents (TimeValue t)
	This method is called to make a copy of the selected sub-object components of the item.
virtual void	AcceptCloneSelSubComponents (TimeValue t)
	This method is called when the user mouses up after shift-cloning a sub-object selection.
virtual void	SelectSubComponent (HitRecord *hitRec, BOOL selected, BOOL all, BOOL invert=FALSE)
	This method is called to change the selection state of the component identified by hitRec.
virtual void	ClearSelection (int selLevel)
	This method is called to clear the selection for the given sub-object level.
virtual void	SelectAll (int selLevel)
	This method is called to select every element of the given sub-object level.
virtual void	InvertSelection (int selLevel)
	This method is called to invert the specified sub-object level.
virtual int	SubObjectIndex (HitRecord *hitRec)
	Returns the index of the sub-object element identified by the HitRecord hitRec.
virtual void	ActivateSubobjSel (int level, XFormModes &modes)
	When the user changes the selection of the sub-object drop down, this method is called to notify the plug-in.
virtual BOOL	SupportsNamedSubSels ()
	An object that supports sub-object selection can choose to support named sub object selection sets.
virtual void	ActivateSubSelSet (MSTR &setName)
	When the user chooses a name from the drop down list this method is called.
virtual void	NewSetFromCurSel (MSTR &setName)
	If the user types a new name into the named selection set drop down then this method is called.
virtual void	RemoveSubSelSet (MSTR &setName)
	If the user selects a set from the drop down and then chooses Remove Named Selections from the Edit menu this method is called.
virtual void	SetupNamedSelDropDown ()
	To support the Edit Named Selections dialog, plug-ins must implement this method.
virtual int	NumNamedSelSets ()
	To support the Edit Named Selections dialog, plug-ins must implement this method.
virtual MSTR	GetNamedSelSetName (int i)
	To support the Edit Named Selections dialog, plug-ins must implement this method.
virtual void	SetNamedSelSetName (int i, MSTR &newName)
	To support the Edit Named Selections dialog, plug-ins must implement this method.
virtual void	NewSetByOperator (MSTR &newName, Tab< int > &sets, int op)
	To support the Edit Named Selections dialog, plug-ins must implement this method.
virtual void	GetSubObjectCenters (SubObjAxisCallback *cb, TimeValue t, INode *node, ModContext *mc)
	When the user is in a sub-object selection level, the system needs to get the reference coordinate system definition from the current modifier being edited so that it can display the axis.
virtual void	GetSubObjectTMs (SubObjAxisCallback *cb, TimeValue t, INode *node, ModContext *mc)
	When the user is in a sub-object selection level, the system needs to get the reference coordinate system definition from the current modifier being edited so that it can display the axis.
virtual void	NotifyPreCollapse (INode *node, IDerivedObject *derObj, int index)
	This method is called before a modifier or object is collapsed.
virtual void	NotifyPostCollapse (INode *node, Object *obj, IDerivedObject *derObj, int index)
	This method is called after a modifier or object is collapsed.
virtual int	NumSubObjTypes ()
	Objects and modifiers that support subobjects have to overwrite this method - as well as GetSubObjType() - and return a class derived from ISubObjType in GetSubObjType().
virtual ISubObjType *	GetSubObjType (int i)
	Returns a pointer to the sub-object type for the sub-object whose index is passed.
virtual CoreExport int	GetSubObjectLevel ()
	This method returns an integer which indicates the current sub-object level of the modifier or base object.
virtual BOOL	HasUVW ()
	Call this method to find out if the object has UVW coordinates.
virtual BOOL	HasUVW (int mapChannel)
	Call this method to find out if the object is has UVW coordinates for the specified mapping channel.
virtual void	SetGenUVW (BOOL sw)
	This method is called to change the state of its Generate UVW boolean.
virtual void	SetGenUVW (int mapChannel, BOOL sw)
	This method is called to change the state of its Generate UVW boolean for the specified mapping channel.
virtual void	ShowEndResultChanged (BOOL showEndResult)
	This method notifies the BaseObject that the end result display has been switched (the "Show End Result" button has been toggled).
Public Member Functions inherited from ReferenceTarget
CoreExport void	GetClassName (MSTR &s, bool localized=true) const override
	Retrieves the name of the plugin class.
CoreExport SClass_ID	SuperClassID () override
	Retrieves a constant representing the type of the plugin.
BOOL	IsRefTarget () override
	Checks if this is a ReferenceTarget.
CoreExport RefResult	TestForLoop (const Interval &refInterval, RefMakerHandle hmaker)
	Tests for a cyclical reference.
CoreExport BOOL	HasDependents ()
	Checks if a ReferenceTarget has references.
CoreExport BOOL	HasRealDependents ()
	Checks if this has Real (Strong) Dependents.
void	BeginDependencyTest ()
	Starts Dependency Test.
BOOL	EndDependencyTest ()
	Ends Dependency Test.
virtual void	RefAdded (RefMakerHandle rm)
	Called after a reference is made to a target.
virtual void	RefAddedUndoRedo (RefMakerHandle rm)
	Called after a reference is made to a target because of undo or redo.
virtual void	RefDeleted (ReferenceMaker *oldOwner)
	Called after a reference to this is deleted.
virtual void	RefDeletedUndoRedo (RefMakerHandle oldOwner)
	Called after a reference to this is deleted because of undo or redo.
CoreExport RefResult	DeleteAllRefsToMe () override
	Deletes all references to this ReferenceTarget.
CoreExport RefResult	TransferReferences (RefTargetHandle oldTarget, BOOL delOld=FALSE)
	Transfers all the references from oldTarget to this.
CoreExport int	DoEnumDependents (DependentEnumProc *dep)
	Begins an enumeration that searches back in the dependency network.
virtual CoreExport RefTargetHandle	Clone (RemapDir &remap)
	This method is used by 3ds Max to clone an object.
virtual CoreExport void	BaseClone (ReferenceTarget *from, ReferenceTarget *to, RemapDir &remap)
	This method copies base class data from an object to its clone.
CoreExport RefResult	NotifyDependents (const Interval &changeInt, PartID partID, RefMessage message, SClass_ID sclass=NOTIFY_ALL, BOOL propagate=TRUE, RefTargetHandle hTarg=nullptr, NotifyDependentsOption notifyDependentsOption=REFNOTIFY_ALLOW_OPTIMIZATIONS) override
	Notify all dependent RefMakers concerned with the message.
void	FlagDependents (TimeValue t, PartID which=PART_PUT_IN_FG)
	This sends the REFMSG_FLAGDEPENDENTS message up the pipeline.
virtual void	NotifyForeground (TimeValue t)
	This method is called to flag dependents into the FG.
virtual void	NotifyTarget (int message, ReferenceMaker *hMaker)
	Sends messages to ReferenceTargets.
CoreExport void *	GetInterface (ULONG id) override
	Inherited from Animatable.
CoreExport BaseInterface *	GetInterface (Interface_ID id) override
	Inherited from Animatable.
CoreExport	ReferenceTarget ()
	Constructor.
virtual CoreExport RefResult	AutoDelete ()
	Deletes the object when it has no more real dependents.
CoreExport RefResult	MaybeAutoDelete ()
	Deletes the object when it has no more real dependents.
Public Member Functions inherited from ReferenceMaker
CoreExport RefResult	ReplaceReference (int which, RefTargetHandle newtarg, BOOL delOld=TRUE)
	Used when cloning reference makers.
CoreExport RefResult	DeleteAllRefsFromMe ()
	Deletes all references from this ReferenceMaker.
CoreExport RefResult	DeleteAllRefs ()
	Deletes all references both to and from this item.
CoreExport RefResult	DeleteReference (int i)
	Deletes the specified reference.
virtual BOOL	CanTransferReference (int i)
	Tells whether this reference can be transfered.
CoreExport ReferenceSaveManager &	GetReferenceSaveManager ()
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual CoreExport IOResult	Save (ISave *isave, ChannelMask)
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual CoreExport IOResult	Load (ILoad *iload, ChannelMask)
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual int	RemapRefOnLoad (int iref)
	Used to load old files with references.
virtual CoreExport void	RescaleWorldUnits (float f)
	Rescale size of all world units in object and its reference hierarchy.
CoreExport void	EnumAuxFiles (AssetEnumCallback &assetEnum, DWORD flags) override
	Enumerate auxiliary files (e.g. bitmaps)
virtual CoreExport void	SaveEnum (SaveEnumProc &sep, BOOL isNodeCall=0)
	The default save enumeration.
virtual CoreExport bool	SpecifySaveReferences (ReferenceSaveManager &referenceSaveManager)
	Used to specify reference slot remapping during scene file save.
CoreExport int	DoEnumDependents (DependentEnumProc *dep)
	Begins an enumeration that searches back in the dependency network.
CoreExport bool	EnumRefHierarchy (RefEnumProc &proc, bool includeCustAttribs=true, bool includeIndirectRefs=true, bool includeNonPersistentRefs=true, bool preventDuplicatesViaFlag=true)
	This method provides a general purpose reference enumerator.
CoreExport int	FindRef (RefTargetHandle rtarg)
	Get the index of the ReferenceTarget.
BOOL	IsRefMaker () override
	Tells whether it is a ReferenceMaker.
virtual BOOL	IsRealDependency (ReferenceTarget *rtarg)
	Returns whether this is a "real" (strong) dependency or not.
virtual BOOL	ShouldPersistWeakRef (RefTargetHandle rtarg)
	Specifies whether a weak reference is to be persisted on a partial load or save.
CoreExport	ReferenceMaker ()
	Constructor.
CoreExport void	DeleteMe ()
	Deletes an instance of this class.
Public Member Functions inherited from Animatable
virtual void	FreeCaches ()
virtual int	NumChildren ()
virtual Animatable *	ChildAnim (int i)
virtual CoreExport MSTR	NodeName ()
virtual void	EditTrack ()
virtual CoreExport BOOL	SubAnimSetKeyBufferPresent (int subNum)
	returns true if the sub-anim has a "Set Key" buffer present
virtual BOOL	SetKeyBufferPresent ()
	returns true if there is a "Set Key" buffer present
virtual CoreExport void	SubAnimCommitSetKeyBuffer (TimeValue t, int subNum)
	Commit any "Set Key" buffers on the given sub-anim.
virtual void	CommitSetKeyBuffer (TimeValue t)
	Commit any "Set Key" buffers.
virtual CoreExport void	SubAnimRevertSetKeyBuffer (int subNum)
	Revert any "Set Key" buffers on the given sub-anim.
virtual void	RevertSetKeyBuffer ()
	Revert any "Set Key" buffers.
virtual LRESULT CALLBACK	TrackViewWinProc (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
	This function is obsolete.
virtual bool	IsParamBlockDesc2Used (ParamBlockDesc2 *desc)
	Returns true if the passed description is being used.
virtual bool	GetMacroRecorderName (bool used_as_rhs_value, MSTR &objectSpecifiedName)
	This method is called to access the object specified name to use for the Maxscript macrorecorder.
CoreExport	Animatable ()
	Constructor.
virtual CoreExport void	DeleteThis ()
	Deletes an instance of this class.
MSTR	ClassName (bool localized=true) const
	Returns the name of the plugin class.
virtual CoreExport Class_ID	ClassID ()
	Retrieves a constant that uniquely identifies the plugin class.
virtual CoreExport void	ReleaseInterface (ULONG id, void *i)
virtual CoreExport int	SetProperty (ULONG id, void *data)
virtual CoreExport void *	GetProperty (ULONG id)
CoreExport void	AppendProperty (AnimProperty *prop)
	A function to directly add arbitrary properties to this object developers should ensure that the properties ID does not conflict with any Max-specific IDs.
CoreExport AnimProperty *	FindProperty (DWORD id)
	Find any property.
CoreExport void	AddAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid, DWORD len, void *data)
	Adds application/plugin specific (custom) data to an Animatable.
CoreExport AppDataChunk *	GetAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid)
	Retrieves the application/plugin specific (custom) data stored with an Animatable.
CoreExport BOOL	RemoveAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid)
	Deletes the application/plugin specific (custom) data stored with an Animatable.
CoreExport void	ClearAllAppData ()
	Deletes all application/plugin specific (custom) data stored with an Animatable.
virtual BOOL	CanDeleteSubAnim (int i)
virtual void	DeleteSubAnim (int i)
virtual DWORD	GetSubAnimCurveColor (int subNum)
virtual int	SubNumToRefNum (int subNum)
virtual BOOL	CanCopyAnim ()
CoreExport int	HasSubElements (int type=0)
virtual int	GetSubFCurveExtents (int subNum, ParamDimensionBase *dim, float &min, float &max, DWORD flags)
	The values max and min should be initialized before calling this function.
virtual ParamDimension *	GetParamDimension (int i)
virtual BOOL	SelectSubAnim (int subNum)
virtual BOOL	BypassTreeView ()
virtual BOOL	BypassTrackBar ()
virtual BOOL	BypassPropertyLevel ()
virtual BOOL	InvisibleProperty ()
virtual int	NumKeys ()
virtual TimeValue	GetKeyTime (int index)
virtual int	GetKeyIndex (TimeValue t)
virtual BOOL	GetNextKeyTime (TimeValue t, DWORD flags, TimeValue &nt)
virtual void	CopyKeysFromTime (TimeValue src, TimeValue dst, DWORD flags)
virtual void	DeleteKeyAtTime (TimeValue t)
virtual BOOL	IsKeyAtTime (TimeValue t, DWORD flags)
virtual int	GetKeyTimes (Tab< TimeValue > &times, Interval range, DWORD flags)
virtual int	GetKeySelState (BitArray &sel, Interval range, DWORD flags)
CoreExport void	OpenTreeEntry (int type, DWORD tv)
CoreExport void	CloseTreeEntry (int type, DWORD tv)
CoreExport int	IsTreeEntryOpen (int type, DWORD tv)
CoreExport BOOL	GetSelInTrackView (DWORD tv)
CoreExport void	SetSelInTrackView (DWORD tv, BOOL sel)
CoreExport BOOL	InTrackViewSelSet (int which)
CoreExport void	SetTrackViewSelSet (int which, BOOL inOut)
virtual BOOL	AssignController (Animatable *control, int subAnim)
virtual BOOL	CanAssignController (int subAnim)
	Return true if we can reassign the subanim specified.
virtual BOOL	CanMakeUnique ()
CoreExport int	EnumAnimTree (AnimEnum *animEnum, Animatable *client, int subNum)
virtual int	RenderBegin (TimeValue t, ULONG flags=0)
virtual int	RenderEnd (TimeValue t)
virtual CoreExport Interval	GetTimeRange (DWORD flags)
virtual void	EditTimeRange (Interval range, DWORD flags)
virtual void	DeleteTime (Interval iv, DWORD flags)
virtual void	ReverseTime (Interval iv, DWORD flags)
virtual void	ScaleTime (Interval iv, float s)
virtual void	InsertTime (TimeValue ins, TimeValue amount)
virtual BOOL	SupportTimeOperations ()
virtual CoreExport void	MapKeys (TimeMap *map, DWORD flags)
virtual void	DeleteKeys (DWORD flags)
virtual void	DeleteKeyByIndex (int index)
virtual void	SelectKeys (TrackHitTab &sel, DWORD flags)
virtual void	SelectSubKeys (int subNum, TrackHitTab &sel, DWORD flags)
virtual void	SelectSubCurve (int subNum, BOOL sel)
virtual void	SelectKeyByIndex (int i, BOOL sel)
virtual BOOL	IsKeySelected (int i)
virtual void	FlagKey (TrackHitRecord hit)
virtual int	GetFlagKeyIndex ()
virtual int	NumSelKeys ()
virtual void	CloneSelectedKeys (BOOL offset=FALSE)
virtual void	AddNewKey (TimeValue t, DWORD flags)
virtual void	MoveKeys (ParamDimensionBase *dim, float delta, DWORD flags)
virtual void	ScaleKeyValues (ParamDimensionBase *dim, float origin, float scale, DWORD flags)
virtual void	SelectCurve (BOOL sel)
virtual BOOL	IsCurveSelected ()
	Returns TRUE if the function curve is selected; otherwise returns FALSE.
virtual BOOL	IsSubCurveSelected (int subNum)
	Returns the selected state of the sub-curve whose index is passed.
virtual int	GetSelKeyCoords (TimeValue &t, float &val, DWORD flags)
virtual void	SetSelKeyCoords (TimeValue t, float val, DWORD flags)
virtual int	SetSelKeyCoordsExpr (ParamDimension *dim, const MCHAR *timeExpr, const MCHAR *valExpr, DWORD flags)
virtual void	AdjustTangents (TrackHitRecord hit, ParamDimensionBase *dim, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, int dx, int dy, DWORD flags)
virtual void	AdjustTangents (TrackHitRecord hit, ParamDimensionBase *dim, float angle, float length, DWORD flags)
virtual CoreExport BOOL	IsAnimated ()
virtual BOOL	CanCopyTrack (Interval iv, DWORD flags)
virtual BOOL	CanPasteTrack (TrackClipObject *cobj, Interval iv, DWORD flags)
virtual TrackClipObject *	CopyTrack (Interval iv, DWORD flags)
virtual void	PasteTrack (TrackClipObject *cobj, Interval iv, DWORD flags)
virtual BOOL	CanCopySubTrack (int subNum, Interval iv, DWORD flags)
virtual BOOL	CanPasteSubTrack (int subNum, TrackClipObject *cobj, Interval iv, DWORD flags)
virtual TrackClipObject *	CopySubTrack (int subNum, Interval iv, DWORD flags)
virtual void	PasteSubTrack (int subNum, TrackClipObject *cobj, Interval iv, DWORD flags)
virtual int	GetTrackVSpace (int lineHeight)
virtual int	HitTestTrack (TrackHitTab &hits, Rect &rcHit, Rect &rcTrack, float zoom, int scroll, DWORD flags)
virtual int	PaintTrack (ParamDimensionBase *dim, HDC hdc, Rect &rcTrack, Rect &rcPaint, float zoom, int scroll, DWORD flags)
virtual int	PaintSubTrack (int subNum, ParamDimensionBase *dim, HDC hdc, Rect &rcTrack, Rect &rcPaint, float zoom, int scroll, DWORD flags)
virtual int	PaintFCurves (ParamDimensionBase *dim, HDC hdc, Rect &rcGraph, Rect &rcPaint, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	HitTestFCurves (ParamDimensionBase *dim, TrackHitTab &hits, Rect &rcHit, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	PaintSubFCurves (int subNum, ParamDimensionBase *dim, HDC hdc, Rect &rcGraph, Rect &rcPaint, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	HitTestSubFCurves (int subNum, ParamDimensionBase *dim, TrackHitTab &hits, Rect &rcHit, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual void	EditTrackParams (TimeValue t, ParamDimensionBase *dim, const MCHAR *pname, HWND hParent, IObjParam *ip, DWORD flags)
virtual int	TrackParamsType ()
virtual int	GetFCurveExtents (ParamDimensionBase *dim, float &min, float &max, DWORD flags)
	This method is called to calculate the largest and smallest values of the anim.
CoreExport void	AddNoteTrack (NoteTrack *note)
CoreExport void	DeleteNoteTrack (NoteTrack *note, BOOL delNote=TRUE)
CoreExport BOOL	HasNoteTracks ()
CoreExport int	NumNoteTracks ()
CoreExport NoteTrack *	GetNoteTrack (int i)
CoreExport DWORD	DeleteAllNoteTracks ()
virtual void	FreeAllBitmaps ()
virtual void	GetSystemNodes (INodeTab &nodes, SysNodeContext Context)
virtual BOOL	IsSubClassOf (Class_ID classID)
	returns true if the animatable has sub-classed off the given class
virtual CoreExport void	MouseCycleCompleted (TimeValue t)
virtual CoreExport void	MouseCycleStarted (TimeValue t)
virtual int	NumParamBlocks ()
virtual IParamBlock2 *	GetParamBlockByID (short id)
CoreExport bool	SvSaveData (ISave *isave, USHORT id)
CoreExport bool	SvLoadData (ILoad *iLoad)
CoreExport DWORD	SvGetRefIndex ()
CoreExport void	SvSetRefIndex (DWORD i)
CoreExport bool	SvDeleteRefIndex ()
CoreExport SvGraphNodeReference	SvStdTraverseAnimGraph (IGraphObjectManager *gom, Animatable *owner, int id, DWORD flags)
virtual CoreExport bool	SvIsHighlighted (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport COLORREF	SvGetSwatchColor (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvIsInactive (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvEditProperties (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetTip (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetRefTip (IGraphObjectManager *gom, IGraphNode *gNode, IGraphNode *gNodeMaker)
virtual CoreExport bool	SvCanDetach (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvDetach (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetRelTip (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Returns a string to be displayed in the tip window in the schematic view for a relationship from "gNodeMaker" to "gNodeTarget"...
virtual CoreExport bool	SvCanDetachRel (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Returns true if this object can respond to the SvDetachRel(...) method...
virtual CoreExport bool	SvDetachRel (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Detach this relationship.
virtual CoreExport bool	SvHandleRelDoubleClick (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Called when this relationship is double-clicked in the schematic view...
CoreExport ICustAttribContainer *	GetCustAttribContainer ()
	This method returns a pointer to the custom attributes container interface class.
CoreExport void	AllocCustAttribContainer ()
	This method allocates space for a custom attributes container.
CoreExport void	DeleteCustAttribContainer ()
	This method deletes space used by a custom attributes container.
void	SetAFlag (DWORD mask)
void	ClearAFlag (DWORD mask)
	Clears one or more bits in the Animatable flags.
bool	TestAFlag (DWORD mask) const
	Tests one or more bits in the Animatable flags.
void	SetAFlagEx (DWORD mask)
	Sets one or more bits in the Animatable extended flags.
void	ClearAFlagEx (DWORD mask)
	Clears one or more bits in the Animatable extended flags.
bool	TestAFlagEx (DWORD mask) const
	Tests one or more bits in the Animatable extended flags.
CoreExport bool	TestFlagBit (int index)
	Tests the specified flag bit.
CoreExport void	SetFlagBit (int index, bool newValue=true)
	Sets the specified flag bit.
CoreExport void	ClearFlagBit (int index)
	Clears the specified flag bit.
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()

Public Attributes
WSMObject *	obRef
INode *	nodeRef
IParamBlock *	pblock

Static Public Attributes
static CoreExport IObjParam *	ip
static SimpleWSMMod *	editMod
Static Public Attributes inherited from Animatable
static const AnimHandle	kInvalidAnimHandle = 0

Protected Member Functions
virtual CoreExport void	SetReference (int i, RefTargetHandle rtarg)
	Stores a ReferenceTarget as its 'i-th' reference`.
Protected Member Functions inherited from ReferenceTarget
CoreExport int	DoEnumDependentsImpl (DependentEnumProc *dep) override
	Method to perform an enumeration on a ReferenceTarget.
virtual CoreExport	~ReferenceTarget ()=0
	Destructor.
Protected Member Functions inherited from ReferenceMaker
virtual CoreExport	~ReferenceMaker ()=0
	Destructor.
void	BlockEval ()
	Validates a given reference link between this reference maker and its reference target.
void	UnblockEval ()
	Validates a given reference link between this reference maker and its reference target.
int	Evaluating ()
	Validates a given reference link between this reference maker and its reference target.
CoreExport RefResult	StdNotifyRefChanged (const Interval &changeInt, RefTargetHandle hTarget, PartID partID, RefMessage message, BOOL propagate, NotifyDependentsOption notifyDependentsOption)
	Validates a given reference link between this reference maker and its reference target.
Protected Member Functions inherited from Animatable
virtual CoreExport	~Animatable ()=0
	Destructor.
Protected Member Functions inherited from Noncopyable
	Noncopyable ()
	~Noncopyable ()

Additional Inherited Members
Static Public Member Functions inherited from Modifier
static CoreExport bool	GetInputType (ClassDesc *cd, Class_ID &inputType)
	To determine the input type of a modifier, an instance of the modifier needs to be created.
Static Public Member Functions inherited from Animatable
static CoreExport BOOL	IsDeleted (Animatable *anim)
	Debug method to determine whether an object has been deleted.
static CoreExport AnimHandle	GetHandleByAnim (Animatable *anim)
	Get the unique handle for an Animatable object.
static CoreExport Animatable *	GetAnimByHandle (AnimHandle handle)
	Get an Animatable object from its unique handle.
static CoreExport AnimHandle	GetNextHandle ()
	Get the unique handle for the next Animatable object to be created.
static CoreExport DWORD	GetNumAnimatables ()
	Get the number of existing Animatable objects.
static CoreExport Tab< AnimHandle >	GetExistingAnimatables ()
	Get a list of existing Animatable objects.
static CoreExport void	EnumerateAllAnimatables (EnumAnimList &enumProcObject)
	Enumerator to enumerate across all animatables.
static CoreExport bool	RegisterAppDataLoadCallback (const Class_ID &cid, SClass_ID sid, APPDATALOADPROC proc)
	Registers a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	UnRegisterAppDataLoadCallback (const Class_ID &cid, SClass_ID sid, APPDATALOADPROC proc)
	Unregisters a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	RegisterAppDataLoadCallback (DWORD sbid, APPDATALOADPROC proc)
	Registers a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	UnRegisterAppDataLoadCallback (DWORD sbid, APPDATALOADPROC proc)
	Unregisters a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport void	ClearAFlagInAllAnimatables (DWORD mask)
	Clears one or more bits in the Animatable flags in all Animatables.
static CoreExport void	ClearAFlagExInAllAnimatables (DWORD mask)
	Clears one or more bits in the Animatable extended flags in all Animatables.
static CoreExport int	RequestFlagBit ()
	Requests an unique flag bit index.
static CoreExport void	ReleaseFlagBit (int index)
	Releases the flag bit index.
static CoreExport void	ClearFlagBitInAllAnimatables (int index)
	Clears the specified flag bit in all Animatables.
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void *ptr, void *placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.
Protected Attributes inherited from BaseObject
MaxSDK::Graphics::RenderItemHandleArray	mRenderItemHandles
Protected Attributes inherited from Animatable
DWORD	aflag
AnimPropertyList	aprops

Detailed Description

See also

Class Modifier, Class IParamBlock, Class INode.

Description:

The SimpleWSMMod class supplies most of the methods needed to implement a world space modifier.

To be a 'Simple' WSM modifier, the following assumptions are made:

The modifier only modifies the geometry channel.

The modifier uses an instance of a class derived from Deformer to do the modifying.

This class maintains a pointer to a parameter block. If the client of SimpleWSMMod uses a single parameter block then SimpleWSMMod can manage all the methods associated with SubAnims and References for the client.

If the client of SimpleWSMMod maintains several parameter blocks then the client must implement the methods NumSubs(), SubAnim(i), SubAnimName(i), NumRefs(), GetReference(i) and SetReference(i) and call the SimpleWSMMod methods when 'i' refers to the parameters maintained by SimpleWSMMod.

Data Members:

Clients of SimpleWSMMod should use the following pointers when the references are created.

protected:

IParamBlock *pblock;

Pointer to a parameter block.

WSMObject *obRef;

Pointer to the world space modifier object referenced by the WSMModifier.

INode *nodeRef;

Pointer to the node in the scene referenced by the WSMModifier.

static IObjParam *ip;

Storage for the interface pointer.

static SimpleWSMMod *editMod;

Storage for the modifier currently being edited in the command panel.

Clients of SimpleWSMMod should use the following values as the reference indexes of the object, node and parameter block.

#define SIMPWSMMOD_OBREF 0
#define SIMPWSMMOD_NODEREF 1
#define SIMPWSMMOD_PBLOCKREF 2

Constructor & Destructor Documentation

SimpleWSMMod()

CoreExport SimpleWSMMod

(

)

~SimpleWSMMod()

virtual CoreExport ~SimpleWSMMod ( )

virtual

Member Function Documentation

ChannelsUsed()

ChannelMask ChannelsUsed ( )

inlinevirtual

These are channels that the modifier needs in order to perform its modification.

This should at least include the channels specified in ChannelsChanged() but may include more. Note that ChannelsUsed() is called many times but the channels returned should not change on the fly.

Returns

The channels required. See Object Channels.

Sample Code:

{ return GEOM_CHANNEL|TOPO_CHANNEL; }

Implements Modifier.

{ return GEOM_CHANNEL|TOPO_CHANNEL; }

ChannelsChanged()

ChannelMask ChannelsChanged ( )

inlinevirtual

These are the channels that the modifier actually modifies.

Note that ChannelsChanged() is called many times but the channels returned should not change on the fly.

Returns

The channels that are changed. See Object Channels

Implements Modifier.

{ return GEOM_CHANNEL; }

ModifyObject()

CoreExport void ModifyObject ( TimeValue t, ModContext & mc, ObjectState * os, INode * node )

virtual

This is the method that actually modifies the input object.

This method is responsible for altering the object and then updating the validity interval of the object to reflect the validity of the modifier.

Parameters

t	The time at which the modification is being done.
mc	A reference to the ModContext.
os	The object state flowing through the pipeline. This contains a pointer to the object to modify.
node	The node the modifier is applied to. This parameter is always NULL for Object Space Modifiers and non-NULL for World Space Modifiers (Space Warps). This is because a given WSM is only applied to a single node at a time whereas an OSM may be applied to several nodes. This may be used for example by particle system space warps to get the transformation matrix of the node at various times.

See also

The topic on ~{ Modifiers }~ in the Programmers Guide.

Implements Modifier.

InputType()

Class_ID InputType ( )

inlinevirtual

This is the type of object that the modifier knows how to modify.

Simple modifiers that just modify points of an object can operate on generic 'Deformable' objects. Deformable objects are any type of object that has points. A modifier could also work on a particular type of object such as a TriObject or PatchObject.

Returns

The Class_ID of the item. You can request any Class_ID for your input type. For example, Class_ID(OMNI_LIGHT_CLASS_ID, 0). See Class IDs defined in plugapi.h>.

Implements Modifier.

{return defObjectClassID;}

LocalValidity()

CoreExport Interval LocalValidity ( TimeValue t )

virtual

This method returns the validity interval of a modifier.

It is simply the combination of the validity of all the modifier's parameters. It's used to determine when to cache in the pipeline, but is not directly responsible for determining when ModifyObject() is called. ModifyObject() is called when the pipeline needs to be evaluated either because someone sent a REFMSG_CHANGE message or the validity of the object does not include the current time.

If a modifier is not animated it's OK to simply return FOREVER from

this method. In the case where the modifier changes because a user changes a non-animated control in the user interface (for instance a check box), you can cause reevaluation by notifying your dependents of the change, i.e.:

NotifyDependents(FOREVER, PART_ALL, REFMSG_CHANGE);

Parameters

t	The time to calculate the Interval.

See also

Advanced Topics on ~{ Intervals }~.

Reimplemented from Modifier.

ChangeTopology()

BOOL ChangeTopology ( )

inlinevirtual

This method asks the question of an object or modifier "Do you change topology"?

An object or modifier returns TRUE if it is capable of changing topology when its parameters are being edited; otherwise FALSE. When an item is selected for editing, and there is a modifier in the pipeline that depends on topology, the system calls this method to see if it may potentially change the topology. If this method returns TRUE the system will put up a warning message indicating that a modifier exists in the stack that depends on topology.

Reimplemented from BaseObject.

{return FALSE;}

GetCreateMouseCallBack()

CreateMouseCallBack * GetCreateMouseCallBack ( )

inlinevirtual

This method allows the system to retrieve a callback object used in creating an object in the 3D viewports.

This method returns a pointer to an instance of a class derived from CreateMouseCallBack. This class has a method proc() which is where the programmer defines the user/mouse interaction during the object creation phase.

Returns

A pointer to an instance of a class derived from CreateMouseCallBack.

Implements BaseObject.

{return nullptr;}

NumRefs()

int NumRefs ( )

inlinevirtual

Returns the total number of references this ReferenceMaker can hold.

The plugin implements this method to indicate the total number of of references it can make. This includes all references whether they are NULL (inactive) or non-NULL (active) at the time when this method is called. A plugin can hold a variable number of references, thus the return value of this method is not to be cached and reused by client code.

Returns

The total number of references this plugin can hold. The default implementation is return 0.

Reimplemented from ReferenceMaker.

{return 3;}

GetReference()

CoreExport RefTargetHandle GetReference ( int i )

virtual

Returns the 'i-th' reference.

The plugin implements this method to return its 'i-th' reference. The plug-in simply keeps track of its references using an integer index for each one. This method is normally called by the system.

Parameters

i	- The index of the reference to retrieve. Valid values are from 0 to NumRefs()-1.

Returns

The reference handle of the 'i-th' reference. Note that different calls to this method with the same 'i' value can result in different reference handles being retrieved, as the plugin changes the scene objects it references as its 'i-th' reference.

Reimplemented from ReferenceMaker.

Reimplemented in SimpleWSMMod2.

SetReference()

virtual CoreExport void SetReference ( int i, RefTargetHandle rtarg )

protectedvirtual

Stores a ReferenceTarget as its 'i-th' reference`.

The plugin implements this method to store the reference handle passed to it as its 'i-th' reference. In its implementation of this method, the plugin should simply assign the reference handle passed in as a parameter to the member variable that holds the 'i-th' reference. Other reference handling methods such as ReferenceMaker::DeleteReference(), or ReferenceMaker::ReplaceReference() should not be called from within this method. The plugin itself or other plugins should not call this method directly. The system will call this method when a new reference is created or an existing one is replaced by calling ReferenceMaker::ReplaceReference().

Parameters

i	- The index of the reference to store. Valid values are from 0 to NumRefs()-1.
rtarg	- The reference handle to store.

Reimplemented from ReferenceMaker.

Reimplemented in SimpleWSMMod2.

NumSubs()

int NumSubs ( )

inlinevirtual

Remarks

The system uses a virtual array mechanism to access the sub-anims of a plug-in. This method returns the total number of sub-anims maintained by the plug-in. If a plug-in is using a parameter block to manage its parameters it should just return 1 for all the parameters directed by the parameter block.

Returns

The number of sub-anims used by the plug-in.

Default Implementation:

{ return 0; }

Reimplemented from Animatable.

{return 1;}

SubAnim()

CoreExport Animatable * SubAnim ( int i )

virtual

Remarks

This method returns a pointer to the 'i-th' sub-anim. If a plug-in is using a parameter block to manage all its parameters it should just return a pointer to the parameter block itself from this method. This method may return NULL so developers need to check the return value before calling other sub anim methods (such as SubAnimName()).

Parameters

i	This is the index of the sub-anim to return.

Default Implementation:

{ return NULL };

Reimplemented from Animatable.

Reimplemented in SimpleWSMMod2.

SubAnimName()

CoreExport MSTR SubAnimName ( int i, bool localized = true )

overridevirtual

Remarks

This method returns the name of the 'i-th' sub-anim to appear in track view. The system has no idea what name to assign to the sub-anim (it only knows it by the virtual array index), so this method is called to retrieve the name to display. Developer need to make sure the 'i-th' SubAnim() is non-NULL or this method will fail.

Parameters

i	The index of the parameter name to return
localized	If true, then the sub-anim name returned should be localized in the language 3ds Max is currently using. Otherwise it should be the sub-anim name in English. If a plugin does not provide localized string resources, it can disregard this parameter and always return the sub-anim name in English.

Returns

The name of the 'i-th' parameter.

Reimplemented from Animatable.

NotifyRefChanged()

CoreExport RefResult NotifyRefChanged ( const Interval & changeInt, RefTargetHandle hTarget, PartID & partID, RefMessage message, BOOL propagate )

virtual

Receives and responds to messages.

A plugin which makes references must implement a method to receive and respond to messages broadcast by its dependents. This is done by implementing NotifyRefChanged(). The plugin developer usually implements this method as a switch statement where each case is one of the messages the plugin needs to respond to. The Method StdNotifyRefChanged calls this, which can change the partID to new value. If it doesn't depend on the particular message& partID, it should return REF_DONTCARE.

• For developer that need to update a dialog box with data about an object you reference note the following related to this method: This method may be called many times. For instance, say you have a dialog box that displays data about an object you reference. This method will get called many time during the drag operations on that object. If you updated the display every time you'd wind up with a lot of 'flicker' in the dialog box. Rather than updating the dialog box each time, you should just invalidate the window in response to the NotifyRefChanged() call. Then, as the user drags the mouse your window will still receive paint messages. If the scene is complex the user may have to pause (but not let up on the mouse) to allow the paint message to go through since they have a low priority. This is the way many windows in 3ds Max work.

Parameters

changeInt	- This is the interval of time over which the message is active. Currently, all plug-ins will receive FOREVER for this interval, with the exception of REFMSG_FLAGDEPENDENTS notifications. In that case, changeInt.Start() is the timepoint to perform the dependency test.
hTarget	- This is the handle of the reference target the message was sent by. The reference maker uses this handle to know specifically which reference target sent the message.
partID	- This contains information specific to the message passed in. Some messages don't use the partID at all. See the section List of Reference Messages for more information about the meaning of the partID for some common messages.
message	- The message parameters passed into this method is the specific message which needs to be handled.
propagate	- If called through ReferenceMaker::NotifyDependents(), the value of 'propagate' passed to it. Used if calling NotifyDependents() from within NotifyRefChanged().

Returns

The return value from this method is of type RefResult. This is usually REF_SUCCEED indicating the message was processed. Sometimes, the return value may be REF_STOP. This return value is used to stop the message from being propagated to the dependents of the item.

Reimplemented from ReferenceTarget.

GetParamBlock()

CoreExport IParamArray * GetParamBlock ( )

virtual

An object or modifier should implement this method if it wishes to make its parameter block available for other plug-ins to access it.

The system itself doesn't actually call this method. This method is optional.

Returns

A pointer to the item's parameter block. See Class IParamArray.

Reimplemented from BaseObject.

GetParamBlockIndex()

CoreExport int GetParamBlockIndex ( int id )

virtual

If a plug-in makes its parameter block available (using GetParamBlock()) then it will need to provide #defines for indices into the parameter block.

These defines should not be directly used with the parameter block but instead converted by this function that the plug-in implements. This way if a parameter moves around in a future version of the plug-in the #define can be remapped. A return value of -1 indicates an invalid parameter id.

Parameters

id	The parameter block id. See Parameter Block IDs.

Returns

The parameter block index or -1 if it is invalid.

Reimplemented from BaseObject.

GetWSMObject()

CoreExport WSMObject * GetWSMObject

(

TimeValue

t

)

Remarks

Implemented by the System.

Evaluates the node reference and returns the WSM object. If you look in /MAXSDK/SAMPLES/HOWTO/MISC/SIMPMOD.CPP you'll see that all this method does is call EvalWorldState() on the Node reference.

Parameters:

TimeValue t

The time to get the WSMObject.

SimpleWSMModClone()

CoreExport void SimpleWSMModClone	(	SimpleWSMMod *	smodSource,
		RemapDir &	remap )

When clients are cloning themselves, they should call this method on the clone to copy SimpleWSMMod's data.

Parameters:

SimpleWSMMod *smodSource

Specifies the SimpleWSMMod that is being cloned.

RemapDir& remap

The RemapDir.

BeginEditParams()

CoreExport void BeginEditParams ( IObjParam * objParam, ULONG flags, Animatable * prev )

virtual

Clients of SimpleWSMMod probably want to override these.

If they do they should call these from within their methods.

Reimplemented from Animatable.

EndEditParams()

CoreExport void EndEditParams ( IObjParam * ip, ULONG flags, Animatable * next )

virtual

Remarks

This method is called when the user is finished editing an objects parameters. The system passes a flag into the EndEditParams() method to indicate if the rollup page should be removed. If this flag is TRUE, the plug-in must un-register the rollup page, and delete it from the panel.

Parameters

ip	An interface pointer. The developer may use the interface pointer to call methods such as DeleteRollupPage().
flags	The following flag may be set: END_EDIT_REMOVEUI If TRUE, the item's user interface should be removed.
next	Animatable pointer. Can be used in the motion and hierarchy branches of the command panel. It allows a plug-in to look at the ClassID of the next item that was being edited, and if it is the same as this item, to not replace the entire UI in the command panel. Note that for items that are edited in the modifier branch this field can be ignored.

Reimplemented from Animatable.

GetDeformer()

virtual Deformer & GetDeformer ( TimeValue t, ModContext & mc, Matrix3 & mat, Matrix3 & invmat )

pure virtual

Remarks

This method is used to retrieve the callback object that will handle the deformation.

Parameters:

TimeValue t

Specifies the time the modification is being performed.

ModContext &mc

A reference to the ModContext.

Matrix3& mat

A reference to a matrix that describes the space the modification is supposed to happen in. This is computed from the ModContext matrix and the controllers controlling the gizmo and center of the modifier. The plug-in developers job is simply to transform each point to be deformed by this matrix before it performs its own deformation to the point. After the modifier applies its own deformation to the point, the developer transforms the point by the inverse of this matrix (passed below).

Matrix3& invmat

This is the inverse of the matrix above. See the comment above for how this is used.

Returns

A C++ reference to the deformer callback object.

See also

The Advanced Topics section on the ~{ Geometry Pipeline System }~.

Implemented in SimpleOSMToWSMMod2, and SimpleOSMToWSMMod.

InvalidateUI()

virtual void InvalidateUI ( )

inlinevirtual

Remarks

This is called if the user interface parameters needs to be updated because the user moved to a new time. The UI controls must display values for the current time.

Example:

If the plug-in uses a parameter map for handling its UI, it may call a method of the parameter map to handle this: pmapParam->Invalidate();

If the plug-in does not use parameter maps, it should call the SetValue() method on each of its controls that display a value, for example the spinner controls. This will cause to the control to update the value displayed. The code below shows how this may be done for a spinner control. Note that ip and pblock are assumed to be initialized interface and parameter block pointers

float newval;

Interval valid=FOREVER;

TimeValue t=ip->GetTime();

// Get the value from the parameter block at the current time.

pblock->GetValue( PB_ANGLE, t, newval, valid );

// Set the value. Note that the notify argument is passed as FALSE.

// This ensures no messages are sent when the value changes.

angleSpin->SetValue( newval, FALSE );

{}

GetValidity()

virtual Interval GetValidity ( TimeValue t )

inlinevirtual

Remarks

The SimpleWSMMod class calls this method to retrieve the validity interval of the modifier. The modifier provides this interval by starting an interval at FOREVER and intersecting it with each of its parameters validity intervals.

Parameters:

TimeValue t

The time to compute the validity interval.

Default Implementation:

{return FOREVER;}

Returns

The validity interval of the modifier.

See also

The Advanced Topics section on ~{ Intervals }~.

Reimplemented in SimpleOSMToWSMMod2, and SimpleOSMToWSMMod.

{return FOREVER;}

GetParameterDim()

virtual ParamDimension * GetParameterDim ( int pbIndex )

inlinevirtual

Remarks

Returns the dimension of the parameter whose index is passed.

Parameters:

int pbIndex

The index of the parameter.

Default Implementation:

{return defaultDim;}

Returns

The dimension of the parameter.

See also

Class ParamDimension.

{return defaultDim;}

GetParameterName()

virtual MSTR GetParameterName ( int pbIndex, bool localized )

inlinevirtual

Remarks

Returns the name of the parameter whose index is passed.

Parameters:

int pbIndex

Index of the parameter. bool localized

If true, then the parameter name returned should be localized in the language 3ds Max is currently using. Otherwise it should be the parameter name in English. If a plugin does not provide localized string resources, it can disregard this parameter and always return the parameter name in English.

Default Implementation:

{return MSTR(_M("Parameter"));}

Returns

The name of the parameter.

{return MSTR(_M("Parameter"));}

InvalidateParamMap()

virtual void InvalidateParamMap ( )

inlinevirtual

{}

SvTraverseAnimGraph()

CoreExport SvGraphNodeReference SvTraverseAnimGraph ( IGraphObjectManager * gom, Animatable * owner, int id, DWORD flags )

virtual

Remarks

This method is available in release 3.0 and later only.

This method traverses the graph of objects in the 3ds Max scene, adding desired objects to the schematic view. Developers can specialize this behaviour by overriding this method and adding whatever objects are interesting to the schematic view. Objects are added to the schematic view by calling IGraphObjectManager::AddAnimatable(...). Reference lines are added to the schematic view by calling IGraphObjectManager::AddReference(...). Implementers of this method should call it recursively to process other objects in the scene.

See Class IGraphObjectManager.

Parameters

gom	Points to the schematic view window manager.
owner	The owning animatable.
id	This is usually the sub-anim number (but can actually be any value the developer chooses).
flags	See Flags for AddAnimatable() and SvTravereseAnimGraph().

Returns

A SvGraphNodeReference object.

Reimplemented from Modifier.

Member Data Documentation

obRef

WSMObject* obRef

nodeRef

INode* nodeRef

pblock

IParamBlock* pblock

ip

CoreExport IObjParam* ip

static

editMod

SimpleWSMMod* editMod

static
