Statistics Panel

Viewports can display statistis that show the number of vertices, polygons, and so on. Use the Statistics panel to customize that display.

• Click or right-click the General viewport label (“[ + ]”) . > General Viewport Label Menu > Configure > Viewport Configuration dialog > Statistics tab
• Default menu: Views menu > Viewport Configuration > Viewport Configuration dialog > Statistics tab
• Alt menu: Scene menu > Configure Views > Viewport Configuration > Viewport Configuration dialog > Statistics tab

Statistics can pertain to the scene or the active selection; they can also display a real-time count of the number of frames per second displayed. To toggle display of the statistics in a viewport on the fly, the General viewport label menu and choose xView Show Statistics, or press 7.

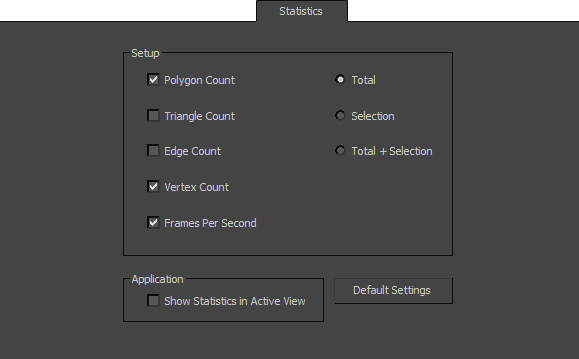

Interface

Setup group

Polygon Count

Enables the polygon count display.

Triangle Count

Enables the triangle count display.

Edge Count

Enables the edge count display.

Vertex Count

Enables the vertex count display.

Frames Per Second

Enables the FPS count display.

• Total Displays only the statistics for the entire scene.
• Selection Displays only the statistics for the current selection.
• Total + Selection Displays the statistics for the entire scene and current selection.

Application group

Show Statistics In Active View

Enables the statistics display.

Default Settings

Restores all options to their original settings.
