Toggle 1:1

Displays your model at true scale (1:1) in an orthographic window, after calibrating the view.

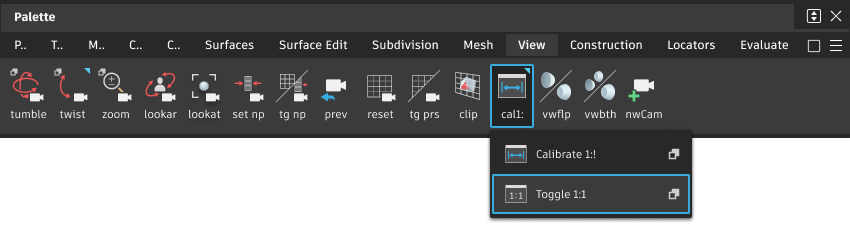

Access this tool from the View palette:

Toggle 1:1 workflow

To switch to the 1:1 view

Select the tool to set and lock your view to true scale.

A 1:1 label appears in the window title bar to indicate that you are in true scale mode.

Note: Dollying in or out of the view is not be possible while in a true scale view.
Select the tool again to toggle back to regular viewing mode.
