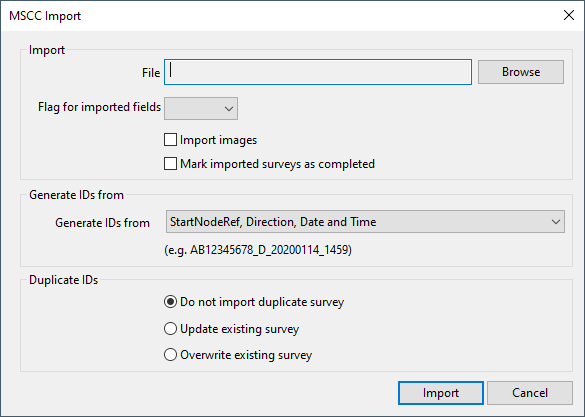

File
|
Options for selecting the data to be imported.
| File
|
For entering or browsing to the XML file(s) to be imported.
Clicking Browse displays a standard Windows Open dialog for selecting one or more files.
|
| Flag
for imported fields
|
The flag selected here will be used to flag fields containing
data brought in by the importer.
|
| Import images
|
If checked, imports CCTV
survey images.
Note: InfoAsset Manager will accept an absolute path
in the PhotographRef field of the MSCC XML file, or a relative path if
the image is in the folder containing the XML file, or a sub-folder.
|
| Mark imported surveys as completed
|
If checked, forces the importer to mark all surveys it has imported as "completed". This sets the completion date to be a duplicate of the “When Surveyed” field. |
|
|
Generate IDs from
|
For generating CCTV Survey IDs.
| Generate IDs from
|
For selecting a method for generating survey IDs.
Survey IDs may be generated from:
- StartNodeRef, Direction, Date and Time - CCTV Survey IDs are generated from the StartNodeRef, Direction, Date and Time fields.
- StartNodeRef, Direction and an
index if needed for uniqueness - CCTV Survey IDs are generated from
the StartNodeRef and Direction fields. An index is appended to duplicate
IDs to preserve uniqueness.
- US node ID, Direction, Date and Time - CCTV Survey IDs are generated from the Node ref at the upstream end of the survey and the Direction, Date and Time fields.
- US node ID, Direction and an index if required for uniqueness - CCTV Survey IDs are generated from the Node ref at the upstream end of the survey and the Direction field. An index is appended to duplicate IDs to preserve uniqueness.
- Client or any of the ClientDefined fields - CCTV Survey IDs are generated from the client field selected.
Note: If the generated ID is longer than 40 characters, the ID will be truncated. An index number will be added to the end of the
ID to preserve uniqueness where appropriate.
|
|
|
Duplicate IDs
|
Options for importing CCTV Surveys with duplicate IDs.
| Do not import duplicate survey
|
Surveys with duplicate IDs will not be imported. These surveys will be
reported in the import log. |
| Update existing survey
|
Surveys with duplicate IDs will be updated with the current survey data. |
| Overwrite existing survey
|
Surveys with duplicate IDs will overwrite existing surveys. |
This section will be disabled when using the StartNodeRef, Direction and an index
if needed for uniqueness or the US Node ID, Direction and an index if required for uniqueness ID generation options; surveys with duplicate
IDs will be imported with a different suffix. Existing surveys will not
be changed.
|
