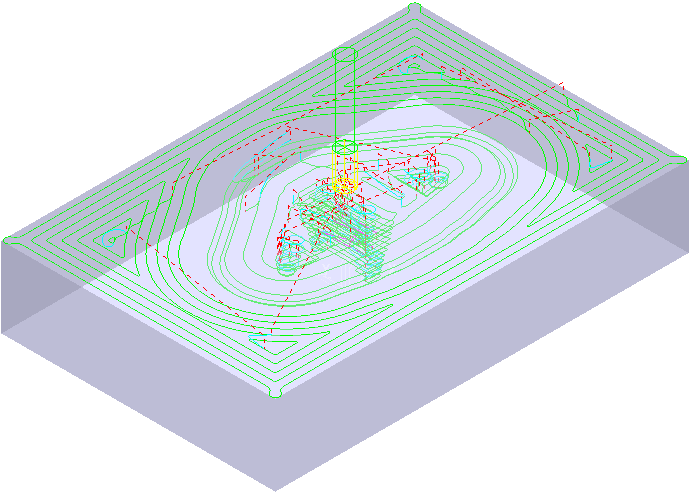

Displaying the roughing toolpath

To improve the visual representation of the toolpath, you can:

• Click View tab > Apperance panel > Shade to toggle the shaded representation of the model.
• Click View tab > Apperance panel > Wireframe to toggle the wireframe.
• Click View tab > Apperance panel > Shade to toggle the block.



  To zoom in to the model, hold down the Ctrl key and the middle (or right) mouse button, and drag the mouse upwards.

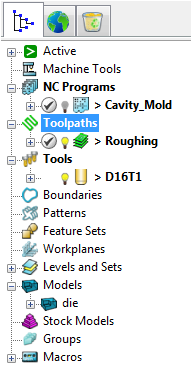

• Click to expand the Toolpaths branch in the Explorer. The new toolpath is shown in bold and preceded by the > symbol to indicate it's active.



  • Click the light bulb next to the toolpath to toggle toolpath display on or off .
  • Click (next to the toolpath) to expand and view the parameters and their specific details used to create the toolpath.

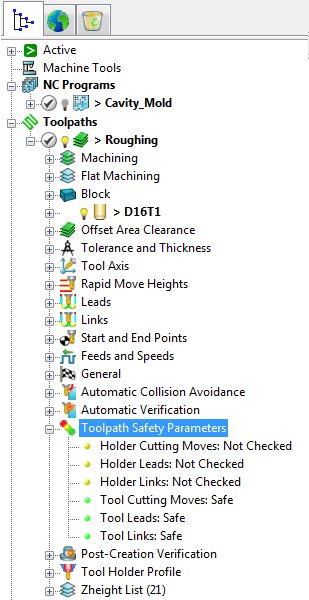

Note: The Safety Status icon at the top of the toolpath tree shows the toolpath is gouge-checked, but not checked for holder details. To see more information, expand the Toolpath Safety Parameters node in the toolpath tree.
