Reinforcement of Spread Footings - launched from Autodesk® Revit®.

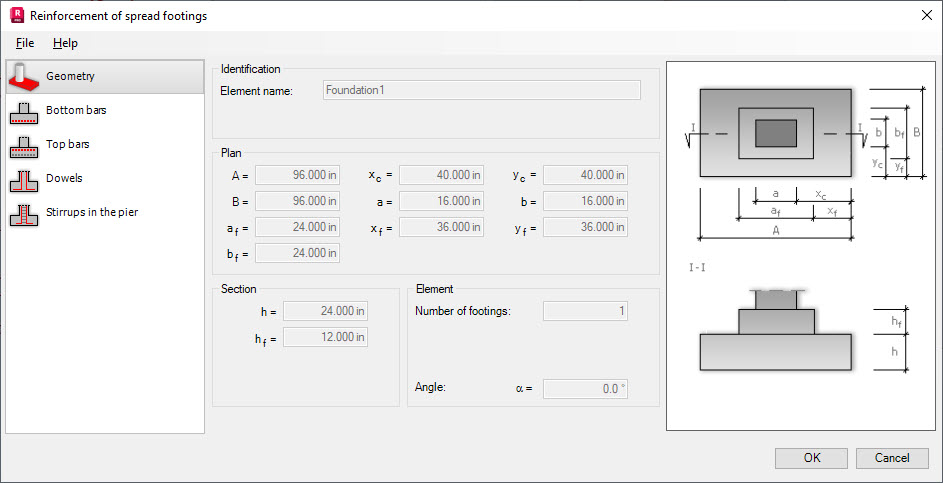

Parameters of the spread footing geometry include:
- Identification parameters (family and type) of a spread footing loaded from a Revit model
- Plan dimensions
- Section dimensions
- Element parameters, including number of footings, level, offset, and angle
Allowable shapes of a spread footing and the column:
- Spread footing
simple rectangle -
double rectangle
trapezoid
- Adjoining column
- RC rectangular
- RC circular
- Steel
- No adjoining column
If the Save data without reinforcement generation option is cleared, the reinforcing bars are generated and displayed in Autodesk® Revit®. If this option is selected, the reinforcement data is generated (and can be used after restarting the Extension), but reinforcing bars cannot be displayed in Autodesk® Revit®.
Reinforcement of Spread Footings - launched from Autodesk Robot Structural Analysis.

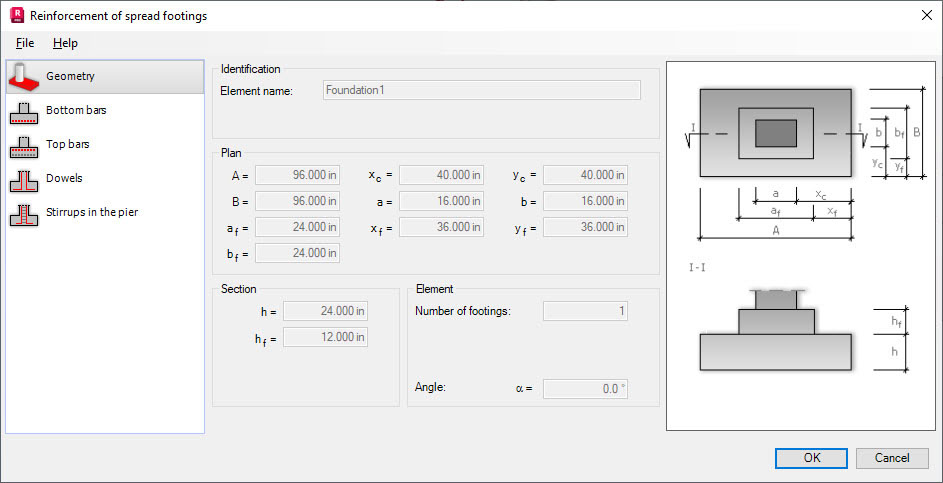

Specify the following data in the upper part of the dialog:
- name of a spread footing
- number of defined spread footings
- spread footing dimensions (on plans and section dimensions).
