In Progress and Completed Uploads Details
Once you've started to upload files with or without references, the details of the upload will display in the In Progress tab. Once an upload is completed, the details are displayed in the Completed tab.
In Progress Tab

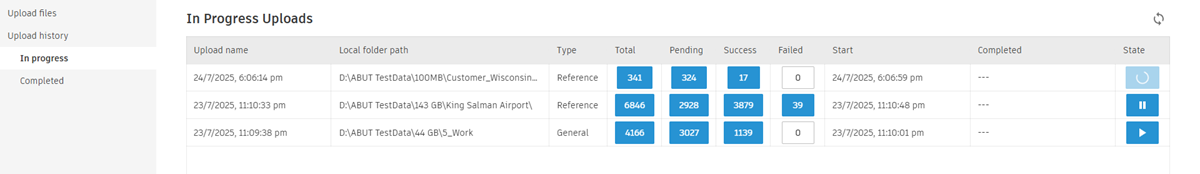

The In Progress Uploads page in In Progress tab shows a row for each active upload session.
The following columns are included:
| Column | Description |
|---|---|
| Upload name | The name assigned to the upload by the user. If no name is provided, the date and time when the upload started will be displayed. |
| Local folder path | The local folder path selected by the user for upload. |
| Total | The total number of files in the selected folder intended for upload. |
| Pending | The number of files yet to be uploaded. This value updates in real-time as the upload progresses. |
| Success | The number of files successfully uploaded. This value updates in real-time. |
| Failed | The number of files that failed to upload. This value updates in real-time. |
| Start | The date and time when the upload began. |
| Completed | The date and time when the upload was completed. This will remain empty in the In Progress table. |
| State | Contains a button to pause or resume the upload. The duration of the pause/resume process depends on the number of files. While the action is in progress, a roller icon spins on the button to indicate the ongoing operation. |

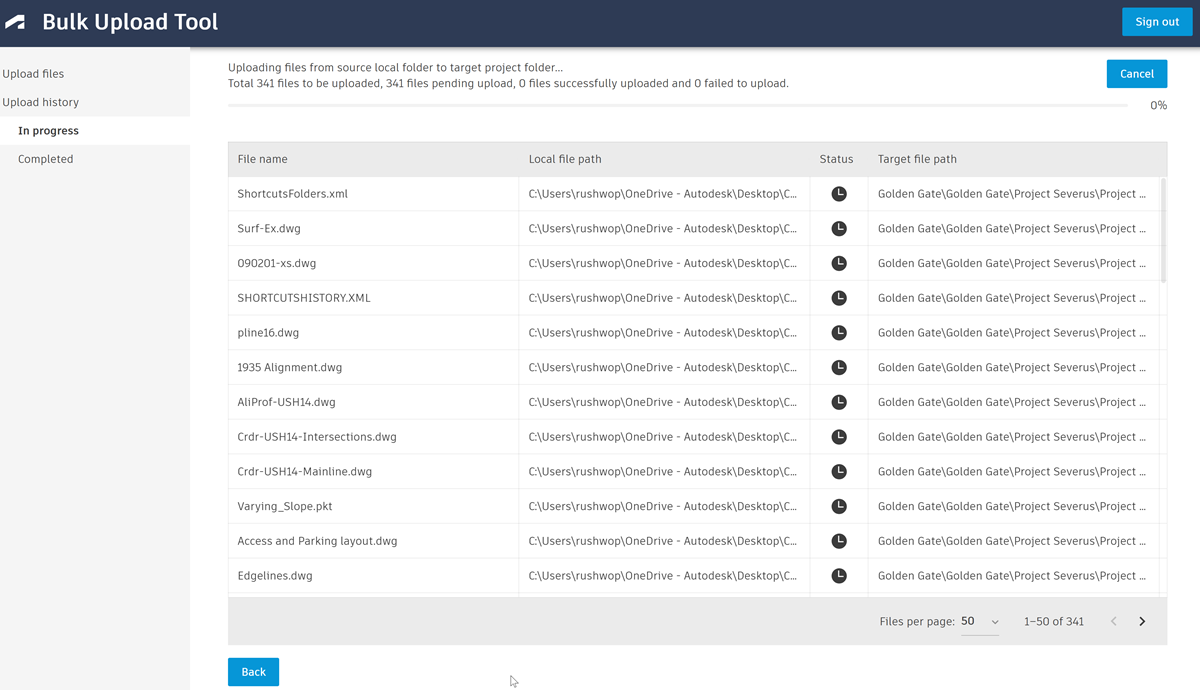

You can click a single in progress upload to view the details of that specific upload session.
The introductory text shows:
Total number of files to be uploaded to the project folder in Docs
Number of files which are pending upload
Number of files successfully uploaded
Number of files which have failed to upload
The table shows:
| Column | Description |
|---|---|
| No. of references | Number of files referenced by the current file. This column is only visible when the Files with Reference upload option is selected. |
| File name | Name of the file being uploaded. |
| Local folder path | The file’s location in the system. |
| Status | Displays the current status of the file upload (Success, Failed, Pending), represented by icons. |
| Target folder | The ACC cloud path where the file will be uploaded. |
Above the table, a real-time progress bar is displayed, showing the current status of the upload along with the estimated time remaining.
Click Cancel to cancel an ongoing upload. Canceled uploads are moved to the Completed tab.
The upload entry is marked with a cross (✖) icon in the State column button to reflect that the upload was canceled. At the time of cancellation, any remaining files that have not been uploaded are moved to the failed state and are displayed under the Failed column within the completed uploads section.
Completed Tab
Once an upload is completed or canceled, its entry moves from the In Progress tab to the Completed tab where a new row is added to the Completed Uploads table.
| Column | Description |
|---|---|
| Upload name | The name assigned to the upload by the user. If no name is provided, the date and time when the upload started will be displayed. |
| Local folder path | The local folder path selected by the user for upload. |
| Total | The total number of files in the selected folder intended for upload. |
| Pending | The number of files yet to be uploaded. This value updates in real-time as the upload progresses. |
| Success | The number of files successfully uploaded. This value updates in real-time. |
| Failed | The number of files that failed to upload. This value updates in real-time. |
| Start | The date and time when the upload began. |
| Completed | The date and time when the upload was completed. |
| State | Contains an icon to show the state of the completed upload as detailed below. |
Uploads completed without errors (check mark on state button)
Uploads completed with errors (fail symbol on state button)
Upload canceled by the user (cross symbol on state button)
You can click a single completed upload to view the details of that specific upload session.
Also, there are three radio buttons that allow the user to filter the displayed files:
Total files to be uploaded – Displays all files intended for upload.
Successfully Uploaded – Displays only files that were uploaded successfully.
Failed to Upload – Displays files that failed to upload, and host files along with their child files when references between them are not correctly linked.
The table updates based on the selected radio button, allowing users to easily view the upload status of individual files.
For uploads which completed with errors, you can click Try again to attempt the upload again.
