Step 5 - Adding Time-Varying Data as Model Boundary Conditions

In the model used in this tutorial there is one outfall, 45631203, which currently has no level time series applied to it.

It is possible to apply a level time series supplied by telemetry to this location in a similar way to the way the rain gauges have been set up:

  1. Open the Scalar TSDB object by dragging it onto the main window or by right-clicking it and selecting Open. If using the provided database objects, use the Scalar TSDB - step 3 completed object.
  2. Select the Observed tab:
    1. Add a new stream:
      1. Call it 45631203.
      2. Set the Data interval to 600s.
      3. Set the Units type to Height above datum.
      4. Select the external data source to match that entered in the Data Source tab in Step 3 (Gauges).
      5. Ensure that the external units are set to m AD.

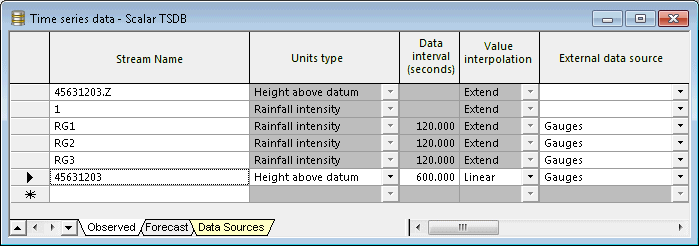

        Adding a new Data Stream

      6. Right-click on the row for stream 45631203, and select Test connection.
      7. If the connection is OK then right click on the row again and select Update data.

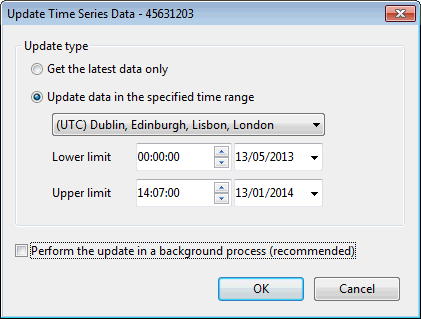

      8. The Update Time Series Data dialog is displayed.
      9. Enable Update data in the specified range and set the Lower limit to 00:00:00 on 13/05/2013.
      10. Disable the Perform the update in a background process (recommended) option.

        Update Time Series Data Dialog

      11. Click OK. Check that the Latest updates and Records values have been updated for the 45631203 data stream.

        Updated Records

      12. Close the Scalar TSDB object.
  3. Finally we must create a TVD Connector for the outfall, in order to allow the contents of the scalar TSDB to be applied to this location. Ensuring that the Tutorial network - step 4 completed network is open in the GeoPlan Window:
    1. Add a GIS layer to the network on the GeoPlan (please click on this link for instructions on how to create a layer list).
    2. Drop the Scalar TSDB on top of it (so its name appears in the title bar of the GeoPlan window).

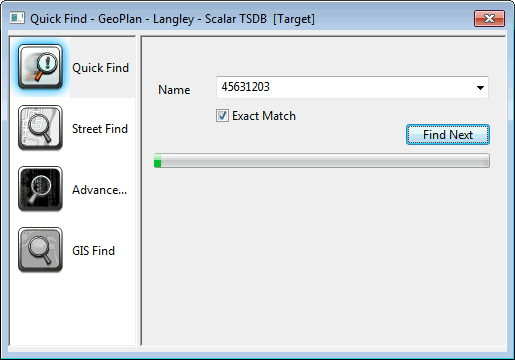

    3. Search for the outfall (45631203) using the Find Objects button (Find Objects button) of the GeoPlan Tools toolbar. Close the Quick Find dialog once the outfall has been found and is highlighted on the GeoPlan.

      Searching for the outfall

    4. Zoom in very close to the outfall to ensure the TVD connector to be created will be digitised at the exact same location.
    5. Using the Object Type dropdown set to Point in conjunction with the New Object button (New Object button) of the GeoPlan Tools toolbar:
      1. Digitise a point object on top of the outfall 45631203.

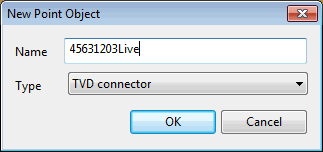

      2. Make the point type TVD connector and call it 45631203Live

        Configuring the New Point

      3. Click on OK. The Object Properties window is opened with the properties of the newly created TVD connector.
    6. In the properties of the TVD Connector object:

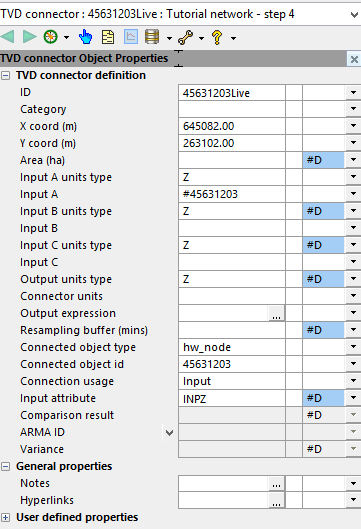

      1. Specify all the input units types as Z and select #45631203 as Input A, indicating that it is connecting to external data source called 45631203.
      2. Ensure that the Connected object type is set to hw_node (Node) and that the outfall node ID (45631203) is specified as the Connected object ID field.

        Configuring the TVD Connector

  4. Validate the network and commit the changes.
    5. Tip: It is possible that warning and information messages are reported in the Output Window. Ensure that no errors (red icon) are found.
  5. Open the last simulation called Test TSDB - with rain gauges, Nowcast and Nimrod RADAR data.
  6. Give it a new name, for example, Test TSDB - with rain gauges, Nowcast, Nimrod RADAR data and boundary conditions at outfall.
  7. If using the provided data, please use the Tutorial network- step 5 completed network object and the Scalar TSDB - step 5 completed TSD objects.
  8. In the TSD Options dialog, update the time series data to use the latest and ensure that the run origin is set to 12:15, 14/05/2013 and that Historic mode is checked.
  9. Update the network to latest.
  10. Investigate the results at the outfalls. Note that as Historic mode has been used, the outfall level data will only be used up to the run origin.
