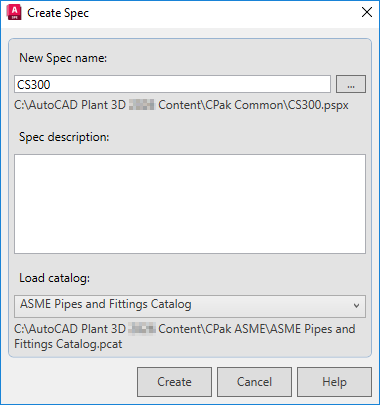

    Create Spec Dialog Box

    Creates a spec file.

    List of Options

    New Spec File

    Specifies the file name for the new spec.

    Spec Description

    Specifies the spec description.

    Load Catalog

    Sets a primary catalog to load with the new spec. Additional catalogs can be loaded later.

    Parent topic: Spec Tab

    Related Tasks

    • To Create Specs

    Related Information

    • Create a Spec File
