#include <mobu-python-api.h>

Class Description

Optical model marker class.

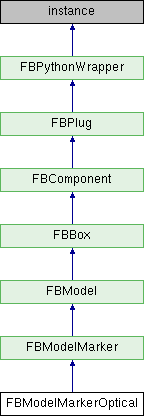

Inheritance diagram for FBModelMarkerOptical:

Public Member Functions
	__reduce__ ()

FBRigidBody	GetRigidBody (FBModelMarkerOptical arg1)
	Get the rigid body for the marker. More...

	__init__ (object arg1, str arg2, FBModelOptical arg3)

int	ImportBegin (FBModelMarkerOptical arg1)
	Begin import of optical data. More...

int	ExportBegin (FBModelMarkerOptical arg1)
	Begin export of optical data. More...

bool	ImportKey (FBModelMarkerOptical arg1, object arg2, object arg3, object arg4, object arg5)
	Import a key of optical data. More...

bool	ExportKey (FBModelMarkerOptical arg1, object arg2, object arg3, object arg4, object arg5)
	Export a key of optical data. More...

bool	ImportEnd (FBModelMarkerOptical arg1)
	End importation and clean up data. More...

bool	ExportEnd (FBModelMarkerOptical arg1)
	End exportation from optical model. More...

	SetModelOptical (FBModelMarkerOptical arg1, FBModelOptical arg2)
	Set the current optical model. More...

	InsertSegmentedData (FBModelMarkerOptical arg1, FBAnimationNode arg2, FBAnimationNode arg3)
	Insert segmented data. More...

Public Member Functions inherited from FBModelMarker
	__reduce__ ()

	__init__ (object arg1, str arg2)
	Constructor. More...

Public Member Functions inherited from FBModel
	__reduce__ ()

object	__copy__ (FBModel arg1)

FBColor	GetAdditionalUniqueColorID (FBModel arg1, int arg2)
	Get Additional Unique Color Id. More...

str	FbxGetObjectSubType (FBModel arg1)
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'. More...

	FBDelete (FBModel arg1)
	Open Reality deletion function. More...

str	FbxGetObjectType (FBModel arg1)
	Returns the class type inherited by the class of an object, for example: 'Model'. More...

object	Clone (FBModel arg1)
	Clone the model. More...

	GetBoundingBox (FBModel arg1, FBVector3d arg2, FBVector3d arg3)
	Get the bounding box of the model. More...

	GetMatrix (FBModel arg1, FBMatrix arg2, FBModelTransformationType arg3, object arg4, FBEvaluateInfo arg5)
	Get a matrix from the model. More...

list	GetHierarchyWorldMatrices (FBModel arg1, int arg2, FBModelHiercharyTraverserType arg3, FBEvaluateInfo arg4)
	Computes the global transform matrices between this model and all its children (all levels). More...

int	GetSelectedPointsCount (FBModel arg1)
	Get the number of selected points in the model. More...

	SetupPropertiesForShapes (FBModel arg1)
	Setup Shape Properties. More...

	GetVector (FBModel arg1, FBVector3d arg2, FBModelTransformationType arg3, object arg4, FBEvaluateInfo arg5)
	Get a vector from the model. More...

	SetMatrix (FBModel arg1, FBMatrix arg2, FBModelTransformationType arg3, object arg4, FBEvaluateInfo arg5)
	Set a matrix for the model. More...

	SetMatrixWithPrecision (FBModel arg1, FBMatrix arg2, FBModelTransformationType arg3, object arg4, FBEvaluateInfo arg5, object arg6)
	Set a matrix for the model. More...

	SetVector (FBModel arg1, FBVector3d arg2, FBModelTransformationType arg3, object arg4, FBEvaluateInfo arg5)
	Set a vector for the model. More...

	MatrixToRotation (FBModel arg1, FBVector3d arg2, FBMatrix arg3)
	Convert Rotation Matrix to Euler Vector based on model's rotation order. More...

	RotationToMatrix (FBModel arg1, FBMatrix arg2, FBVector3d arg3)
	Convert Euler Vector to Rotation Matrix based on model's rotation order. More...

	LRMToDof (FBModel arg1, FBVector3d arg2, FBMatrix arg3)
	Convert local matrix to object space vector. More...

	DofToLRM (FBModel arg1, FBMatrix arg2, FBVector3d arg3)
	Convert object space vector to local matrix. More...

	SetSchematicPosition (...)

FBVector2d	GetSchematicPosition (FBModel arg1)
	Get the position in the schematic view for the model. More...

	CollapseInSchematic (FBModel arg1)
	Collapse the model in the schematic view. More...

	ExpandInSchematic (FBModel arg1)
	Expand the model in the schematic view. More...

bool	IsCollapsedInSchematic (FBModel arg1)
	Returns if the model is collapsed or not (expanded) in the schematic view. More...

int	NoFrustumCullingRequire (FBModel arg1)
	Acquire no frustum culling request. More...

int	NoFrustumCullingRelease (FBModel arg1)
	Release no frustum culling request. More...

bool	UseFrustumCulling (FBModel arg1)
	Get the current Frustum Culling Status. More...

	ForceAlwaysEvaluate (FBModel arg1)
	Force Always Evaluate. More...

bool	IsForceAlwaysEvaluate (FBModel arg1)
	Return Force Always Evaluate status. More...

bool	IsEvaluationReady (FBModel arg1, FBModelEvaluationTaskType arg2, FBEvaluateInfo arg3)
	Is the model's evaluation task result ready. More...

bool	SetAdditionalUniqueColorIDCount (FBModel arg1, int arg2)
	Request additional Unique color IDs. More...

int	GetAdditionalUniqueColorIDCount (FBModel arg1)
	Get additional unique color count. More...

bool	RayCast (FBModel arg1, FBCamera arg2, object arg3, object arg4, FBVector3d arg5, FBVector3d arg6)
	Ray cast test. More...

	__init__ (...)
	Constructor. More...

Public Member Functions inherited from FBBox
	__reduce__ ()

bool	AnimationNodeDestroy (FBBox arg1, FBAnimationNode arg2)
	Destroy an animation node. More...

	__init__ (object arg1, str arg2)
	Constructor. More...

object	AnimationNodeInGet (FBBox arg1)
	Get the (IN/OUT) animation node for this box. More...

bool	AnimationNodeIsUserData (FBBox arg1, FBAnimationNode arg2)
	Is the animation node user data? More...

object	AnimationNodeOutGet (FBBox arg1)

int	GetOutConnectorCount (FBBox arg1)
	Get the number of animation node outputs for this box. More...

int	GetInConnectorCount (FBBox arg1)
	Get the number of animation node inputs for this box. More...

object	GetOutConnector (FBBox arg1, object arg2)
	Get the animation node output associated with the given index. More...

object	GetInConnector (FBBox arg1, object arg2)
	Get the animation node input associated with the given index. More...

Public Member Functions inherited from FBComponent
	__reduce__ ()

FBPropertyList	PropertyGetModifiedList (FBComponent arg1, FBPlugModificationFlag arg2)
	Get list of properties which have been modified since last loading. More...

str	ClassName (FBComponent arg1)
	Get the class name. More...

	DisableObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Disable a specific Object Flags. More...

	EnableObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Enable a specific Object Flags. More...

bool	FBCreate (FBComponent arg1)
	Open Reality Creation function. More...

	FBDelete (FBComponent arg1)
	Open Reality deletion function. More...

	FBDestroy (FBComponent arg1)
	Open Reality destruction function. More...

FBObjectFlag	GetObjectFlags (FBComponent arg1)
	Get all Object Flags (concatenated). More...

bool	GetObjectStatus (FBComponent arg1, FBObjectStatus arg2)
	Check to see if an object status is enabled. More...

bool	HasObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Check whether a specific object flag is enabled. More...

bool	Is (FBComponent arg1, object arg2)
	Returns true if object is of type TypeId. More...

bool	ProcessNamespaceHierarchy (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5)
	ProcessObjectNamespace. More...

int	PropertyAdd (FBComponent arg1, FBProperty arg2)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBComponent arg1, FBProperty arg2)
	Add a reference property to the component's property manager. More...

object	PropertyCreate (FBComponent arg1, str arg2, FBPropertyType arg3, str arg4, object arg5, object arg6, FBProperty arg7)
	Create user or dynamic property. More...

	PropertyRemove (FBComponent arg1, FBProperty arg2)
	Remove a Property from the component's Property manager. More...

	SetObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	SetObjectFlags. More...

	SetObjectStatus (FBComponent arg1, FBObjectStatus arg2, object arg3)
	Enable/Disable a specific Object Status. More...

	HardSelect (FBComponent arg1)
	HardSelect. More...

object	GetOwnerFileReference (FBComponent arg1)
	Get the owner FileReference object. More...

	__init__ (...)
	Constructor. More...

Public Member Functions inherited from FBPlug
	__reduce__ ()

bool	BeginChange (FBPlug arg1)
	Begins a change on multiple plugs. More...

str	ClassName (FBPlug arg1)
	internal System vars. More...

bool	ConnectDst (FBPlug arg1, FBPlug arg2, FBConnectionType arg3)
	Add a destination connection. More...

bool	ConnectDstAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4)
	Add a destination connection. More...

bool	ConnectSrc (FBPlug arg1, FBPlug arg2, FBConnectionType arg3)
	Add a source connection. More...

bool	ConnectSrcAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4)
	Add a source connection. More...

	DisconnectAllDst (FBPlug arg1)
	Remove all destination connections. More...

	DisconnectAllSrc (FBPlug arg1)
	Remove all source connections. More...

bool	DisconnectDst (FBPlug arg1, FBPlug arg2)
	Remove a destination connection. More...

bool	DisconnectDstAt (FBPlug arg1, object arg2)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrc (FBPlug arg1, FBPlug arg2)
	Remove a source connection. More...

bool	DisconnectSrcAt (FBPlug arg1, object arg2)
	Remove a source connection at a specified index. More...

	EndChange (FBPlug arg1)
	Ends a change on multiple plugs. More...

object	GetDst (FBPlug arg1, object arg2)
	Get a destination connection's plug at specified index. More...

int	GetDstCount (FBPlug arg1)
	Get destination connection count. More...

FBConnectionType	GetDstType (FBPlug arg1, object arg2)
	Get a destination connection's type at specified index. More...

object	GetOwned (FBPlug arg1, object arg2)
	Get the owned plug at specified index. More...

int	GetOwnedCount (FBPlug arg1)
	Get the owned plug count. More...

object	GetOwner (FBPlug arg1)
	Get the owner of this plug. More...

object	GetSrc (FBPlug arg1, object arg2)
	Get a source connection's plug at specified index. More...

int	GetSrcCount (FBPlug arg1)
	Get source connection count. More...

FBConnectionType	GetSrcType (FBPlug arg1, object arg2)
	Get a source connection's type at specified index. More...

bool	Is (FBPlug arg1, object arg2)
	Is( int pTypeId ) More...

bool	IsSDKComponent (FBPlug arg1)
	Return whether or not item is an SDK component. More...

	MoveSrcAt (...)

bool	ReplaceDstAt (FBPlug arg1, object arg2, FBPlug arg3)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (FBPlug arg1, object arg2, FBPlug arg3)
	Replace a source connection at a specified index. More...

bool	SwapSrc (FBPlug arg1, object arg2, object arg3)
	Swap source connection at index A with source connection at index B. More...

	SetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2)
	Tell if the plug's self has changed. More...

	SetContentModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlug arg1, FBPlugModificationFlag arg2)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlug arg1, FBPlugList arg2, FBPlugModificationFlag arg3, object arg4)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlug arg1, FBPlugModificationFlag arg2)
	Revert the plug's modification to original status. More...

	__init__ (...)

method	staticmethod (function)

Public Member Functions inherited from FBPythonWrapper
	__reduce__ ()

	__init__ (...)

Public Attributes
FBPropertyAnimationNode	Data
	Property: Data. More...

FBPropertyModelOptical	Optical
	Property: Optical model. More...

ORSDK2018::FBPropertyListOpticalGap	Gaps
	Property: Gaps. More...

ORSDK2018::FBPropertyListMarkerSegment	Segments
	Property: Marker segments. More...

FBPropertyColor	Color
	Property: Marker color. More...

FBPropertyBool	Done
	Property: Done? More...

Public Attributes inherited from FBModelMarker
FBPropertyColor	Color
	Read Write Property: Color of model marker. More...

FBPropertyVector3d	IKPivot
	Read Write Property: marker Pivot Offset. More...

FBPropertyDouble	Length
	Read Write Property: Length for capsule (not related to scaling). More...

FBPropertyMarkerLook	Look
	Read Write Property: Look of model marker. More...

FBPropertyMarkerType	Type
	Read Write Property: Type of model marker. More...

FBPropertyMarkerResolutionLevel	ResLevel
	Read Write Property: Resolution level of model marker. More...

FBPropertyDouble	Size
	Read Write Property: Size (not related to scaling). More...

Public Attributes inherited from FBModel
FBPropertyAnimationNode	AnimationNode
	Read Only Property: Animation node of the model. More...

ORSDK2018::FBPropertyListModel	Children
	Interface to IObject. More...

FBPropertyVector3d	GeometricRotation
	Read Write Property: Geometric rotation. More...

FBPropertyVector3d	GeometricScaling
	Read Write Property: Geometric scaling. More...

FBPropertyVector3d	GeometricTranslation
	Read Write Property: Geometric translation. More...

FBPropertyGeometry	Geometry
	Read Write Property: Geometry for the model. More...

FBPropertyModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model. More...

FBPropertyBool	Icon3D
	Read Write Property: Is model a 3D icon? More...

FBPropertyBool	IsDeformable
	Read Only Property: Is model deformable? More...

FBPropertyBool	IsConstrained
	Read Only Property: Is model constrained? More...

FBPropertyInt	GeometryUpdateId
	Read Only Property: model geometry (vertex data) related update id. More...

FBPropertyBool	SkeletonDeformable
	Read Write Property: Model skeleton deformable. More...

FBPropertyBool	BlendShapeDeformable
	Read Write Property: Model blend-shape deformable. More...

FBPropertyBool	ConstrainDeformable
	Read Write Property: Model constraint deformable. More...

FBPropertyBool	PointCacheDeformable
	Read Write Property: Model point cache deformable. More...

FBPropertyBool	PointCacheRecord
	Read Write Property: Record Point Cache for model? Not Savable More...

FBPropertyColor	UniqueColorId
	Read Only Property: Unique Color Id for color based viewer picking. More...

FBPropertyModel	LookAt
	Read Write Property: Look at model (interest point). More...

FBPropertyModel	Parent
	Read Write Property: Parent model. More...

FBPropertyVector3d	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true) More...

FBPropertyVector3d	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true) More...

FBPropertyBool	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation. More...

FBPropertyBool	PrimaryVisibility
	Read Write Property: Control the geometry render state. More...

FBPropertyBool	CastsShadows
	Read Write Property: If true, the geometry will produce shadows. More...

FBPropertyBool	ReceiveShadows
	Read Write Property: If true, the geometry will receive shadows. More...

FBPropertyAnimatableVector3d	Rotation
	Read Write Property: Lcl rotation. More...

FBPropertyBool	RotationActive
	Read Write Property: Is model using Rotation Limits? More...

FBPropertyVector3d	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true) More...

FBPropertyBool	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X? More...

FBPropertyBool	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y? More...

FBPropertyBool	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z? More...

FBPropertyVector3d	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true) More...

FBPropertyBool	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X? More...

FBPropertyBool	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y? More...

FBPropertyBool	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z? More...

FBPropertyModelRotationOrder	RotationOrder
	Read Write Property: Rotation order. More...

FBPropertyBool	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits? More...

FBPropertyAnimatableVector3d	Scaling
	Read Write Property: Lcl scaling. More...

FBPropertyScene	Scene
	Read Only Property: Scene containing the model. More...

object	Selected

ORSDK2018::FBPropertyListShader	Shaders
	List: Shaders for model. More...

ORSDK2018::FBPropertyListMaterial	Materials
	List: Materials for model. More...

ORSDK2018::FBPropertyListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials). More...

ORSDK2018::FBPropertyListDeformer	Deformers
	List: Deformers (Skeleton Deformer or Point Cache Deformer). More...

FBPropertyModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model. More...

object	CullingMode

FBPropertyBool	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer. More...

FBPropertyBool	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value. More...

FBPropertyBool	Transformable
	Read Write Property: Indicate if a model can be transformable in the viewer. More...

FBPropertyBool	SoftSelected
	Read Write Property: Is model Soft selected? More...

FBPropertyAnimatableVector3d	Translation
	Read Write Property: Lcl translation. More...

FBPropertyModel	UpVector
	Read Write Property: UpVector model. More...

FBPropertyAnimatableBool	Visibility
	Read Write Property: Visibility of model. More...

object	IsVisible
	If the model is visible. More...

FBPropertyBool	VisibilityInheritance
	Read Write Property: //!< When this value is set to `True` the Visibility of this model is also applied to all its descendants More...

Public Attributes inherited from FBBox
FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...

FBPropertyBool	Live
	Read Write Property: Is live? More...

FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...

const char *	UniqueName
	internal Unique name. More...

Public Attributes inherited from FBComponent
object	OwnerNamespace

ORSDK2018::FBPropertyListComponent	Components
	List: List of components. More...

ORSDK2018::FBPropertyString	Name
	Read Write Property: Unique name of object. More...

ORSDK2018::FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

object	FullName

ORSDK2018::FBPropertyListComponent	Parents
	List: Parents. More...

ORSDK2018::FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

Public Attributes inherited from FBPythonWrapper
object	OnUnbind

Member Function Documentation

__init__	(	object	arg1,
		str	arg2,
		FBModelOptical	arg3
	)

Python Docstring:

__init__( (object)arg1, (str)arg2, (FBModelOptical)arg3) -> None

C++ Constructors:
The reference documentation for the following C++ symbols may contain additional relevant information.

 FBModelMarkerOptical(const char * pName = ((void *) 0), ORSDK2018::FBModelOptical * pOptical = ((void *) 0), HIObject pObject = ((void *) 0))
Optical

__reduce__ ( )

int ExportBegin ( FBModelMarkerOptical arg1 )

Begin export of optical data.

Python Docstring:

ExportBegin( (FBModelMarkerOptical)arg1) -> int

C++ Signature:

int ExportBegin()

Sample communication with optical device and return the number of samples that were taken during the sampling period for statistical purposes.

Returns: Number of frames to export.

See the C++ reference

bool ExportEnd ( FBModelMarkerOptical arg1 )

End exportation from optical model.

Python Docstring:

ExportEnd( (FBModelMarkerOptical)arg1) -> bool

C++ Signature:

bool ExportEnd()

Returns: true if successful.

See the C++ reference

bool ExportKey	(	FBModelMarkerOptical	arg1,
		object	arg2,
		object	arg3,
		object	arg4,
		object	arg5
	)

Export a key of optical data.

Python Docstring:

ExportKey( (FBModelMarkerOptical)arg1, (object)arg2, (object)arg3 [, (object)arg4 [, (object)arg5]]) -> bool

C++ Signature:

bool ExportKey(double * pX, double * pY, double * pZ = ((void *) 0), double * pOcclusion = ((void *) 0))

Return values

pX.	X position.
pY.	Y position.
pZ.	Z position(default=NULL).
pOcclusion.	Occlusion value(default=NULL).

Returns: true if successful.

See the C++ reference

FBRigidBody GetRigidBody ( FBModelMarkerOptical arg1 )

Get the rigid body for the marker.

Python Docstring:

GetRigidBody( (FBModelMarkerOptical)arg1) -> FBRigidBody

C++ Signature:

ORSDK2018::FBRigidBody GetRigidBody()

Returns: Rigid body for marker (check IsValid())

See the C++ reference

int ImportBegin ( FBModelMarkerOptical arg1 )

Begin import of optical data.

Python Docstring:

ImportBegin( (FBModelMarkerOptical)arg1) -> int

C++ Signature:

int ImportBegin()

Sample communication with optical device and return the number of samples that were taken during the sampling period for statistical purposes.

Returns: The number of samples taken.

See the C++ reference

bool ImportEnd ( FBModelMarkerOptical arg1 )

End importation and clean up data.

Python Docstring:

ImportEnd( (FBModelMarkerOptical)arg1) -> bool

C++ Signature:

bool ImportEnd()

Interpolates optical data to create a curve from the input key frams.

Returns: true if successful.

See the C++ reference

bool ImportKey	(	FBModelMarkerOptical	arg1,
		object	arg2,
		object	arg3,
		object	arg4,
		object	arg5
	)

Import a key of optical data.

Python Docstring:

ImportKey( (FBModelMarkerOptical)arg1, (object)arg2, (object)arg3 [, (object)arg4 [, (object)arg5]]) -> bool

C++ Signature:

bool ImportKey(double pX, double pY, double pZ = 0.0, double pOcclusion = 0.0)

Parameters

pX	X position.
pY	Y position.
pZ	Z position(default=0.0).
pOcclusion	Occlusion value(default=0.0).

Returns: true if successful.

See the C++ reference

InsertSegmentedData	(	FBModelMarkerOptical	arg1,
		FBAnimationNode	arg2,
		FBAnimationNode	arg3
	)

Insert segmented data.

Python Docstring:

InsertSegmentedData( (FBModelMarkerOptical)arg1, (FBAnimationNode)arg2, (FBAnimationNode)arg3) -> None

C++ Signature:

void InsertSegmentedData(ORSDK2018::FBAnimationNode * pTData, ORSDK2018::FBAnimationNode * pOData)

Parameters

pTData	Translation data.
pOData	Occlusion data.

See the C++ reference

SetModelOptical	(	FBModelMarkerOptical	arg1,
		FBModelOptical	arg2
	)

Set the current optical model.

Python Docstring:

SetModelOptical( (FBModelMarkerOptical)arg1, (FBModelOptical)arg2) -> None

C++ Signature:

void SetModelOptical(ORSDK2018::FBModelOptical * pOptical)

Parameters

pOptical New optical model.

See the C++ reference

Member Data Documentation

FBPropertyColor Color

Property: Marker color.

See the C++ reference

FBPropertyAnimationNode Data

Property: Data.

See the C++ reference

FBPropertyBool Done

Property: Done?

See the C++ reference

ORSDK2018::FBPropertyListOpticalGap Gaps

Property: Gaps.

See the C++ reference

FBPropertyModelOptical Optical

Property: Optical model.

See the C++ reference

ORSDK2018::FBPropertyListMarkerSegment Segments

Property: Marker segments.

See the C++ reference

FBModelMarkerOptical Class Reference

Class Description

Public Member Functions

Public Attributes

Member Function Documentation

Member Data Documentation
