IXRefMaterial Class Reference

Class representing xref materials. More...

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/XRef/iXrefMaterial.h>

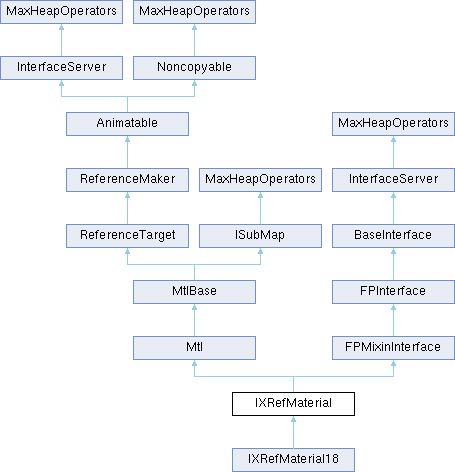

Inheritance diagram for IXRefMaterial:

Public Types
enum	{ kfpGetSourceMaterial }
Public Types inherited from BaseInterface
enum	LifetimeType { noRelease , immediateRelease , wantsRelease , serverControlled }

Public Member Functions
virtual Mtl *	GetSourceMaterial (bool resolveNestedXRef=false) const =0
	Retrieves the source material, the actual material behind the XRef.
virtual FPInterfaceDesc *	GetIXRefMaterialDesc ()=0
	Returns the function publishing descriptor for the XRef Material.
virtual Interface_ID	GetID ()
virtual FPInterfaceDesc *	GetDesc ()
	FN_1 (kfpGetSourceMaterial, TYPE_MTL, GetSourceMaterial, TYPE_bool)
virtual BaseInterface *	GetInterface (Interface_ID id)
Public Member Functions inherited from Mtl
CoreExport	Mtl ()
SClass_ID	SuperClassID ()
	Retrieves a constant representing the type of the plugin.
virtual void	GetClassName (MSTR &s, bool localized=true) const override
	Retrieves the name of the plugin class.
CoreExport void	RefDeleted (RefMakerHandle rm)
CoreExport void	RefAdded (RefMakerHandle rm)
	Called after a reference is made to a target.
virtual BOOL	SupportsShaders ()
virtual BOOL	SupportsRenderElements ()
	Returns true if it supports render elements.
CoreExport void	CopySubMtl (HWND hwnd, int ifrom, int ito)
CoreExport bool	SvCanInitiateLink (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport MtlBase *	GetActiveTexmap ()
CoreExport void	SetActiveTexmap (MtlBase *txm)
virtual Color	GetAmbient (int mtlNum=0, BOOL backFace=FALSE)=0
virtual Color	GetDiffuse (int mtlNum=0, BOOL backFace=FALSE)=0
virtual Color	GetSpecular (int mtlNum=0, BOOL backFace=FALSE)=0
virtual float	GetShininess (int mtlNum=0, BOOL backFace=FALSE)=0
virtual float	GetShinStr (int mtlNum=0, BOOL backFace=FALSE)=0
virtual float	GetXParency (int mtlNum=0, BOOL backFace=FALSE)=0
virtual BOOL	GetSelfIllumColorOn (int mtlNum=0, BOOL backFace=FALSE)
virtual float	GetSelfIllum (int mtlNum=0, BOOL backFace=FALSE)
virtual Color	GetSelfIllumColor (int mtlNum=0, BOOL backFace=FALSE)
virtual Sampler *	GetPixelSampler (int mtlNum=0, BOOL backFace=FALSE)
virtual float	WireSize (int mtlNum=0, BOOL backFace=FALSE)
virtual RenderData *	GetRenderData ()
virtual bool	IsOutputConst (ShadeContext &sc, int stdID)
virtual void	SetAmbient (Color c, TimeValue t)=0
virtual void	SetDiffuse (Color c, TimeValue t)=0
virtual void	SetSpecular (Color c, TimeValue t)=0
virtual void	SetShininess (float v, TimeValue t)=0
virtual void	SetRenderData (RenderData *rdata)
virtual void	Shade (ShadeContext &sc)=0
virtual int	NumSubMtls ()
virtual Mtl *	GetSubMtl (int i)
virtual void	SetSubMtl (int i, Mtl *m)
virtual int	VPDisplaySubMtl ()
virtual CoreExport MSTR	GetSubMtlSlotName (int i, bool localized)
CoreExport MSTR	GetSubMtlTVName (int i, bool localized=true)
virtual float	EvalDisplacement (ShadeContext &sc)
virtual Interval	DisplacementValidity (TimeValue t)
virtual BOOL	DontKeepOldMtl ()
virtual bool	EvalColorStdChannel (ShadeContext &sc, int stdID, Color &outClr)
virtual CoreExport bool	EvalMonoStdChannel (ShadeContext &sc, int stdID, float &outVal)
CoreExport Mtl *	ResolveWrapperMaterials (bool forUseInViewport)
	Resolves any wrapper materials and returns the actual material that you should use.
Public Member Functions inherited from MtlBase
CoreExport	MtlBase ()
CoreExport	~MtlBase ()
virtual CoreExport Class_ID	ClassID ()
	Retrieves a constant that uniquely identifies the plugin class.
int	GetMeditObjType ()
void	SetMeditObjType (int t)
int	GetMeditTiling ()
void	SetMeditTiling (int t)
CoreExport BOOL	AnyMulti ()
BOOL	TextureDisplayEnabled ()
CoreExport MtlBase &	operator= (const MtlBase &m)
CoreExport SvGraphNodeReference	SvTraverseAnimGraph (IGraphObjectManager *gom, Animatable *owner, int id, DWORD flags)
CoreExport bool	SvHandleDoubleClick (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport MSTR	SvGetName (IGraphObjectManager *gom, IGraphNode *gNode, bool isBeingEdited)
CoreExport bool	SvCanSetName (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport bool	SvSetName (IGraphObjectManager *gom, IGraphNode *gNode, const MSTR &name)
CoreExport COLORREF	SvHighlightColor (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport bool	SvIsSelected (IGraphObjectManager *gom, IGraphNode *gNode)
	Returns true if the object is selected in its schematic view.
CoreExport MultiSelectCallback *	SvGetMultiSelectCallback (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport bool	SvCanSelect (IGraphObjectManager *gom, IGraphNode *gNode)
CoreExport MtlBase *	GetActiveMB ()
	Get the active MtlBase.
CoreExport void	SetActiveMB (MtlBase *activeMB)
	Set the active MtlBase.
virtual CoreExport void *	GetInterface (ULONG id)
virtual ReferenceTarget *	GetRefTarget ()
virtual CoreExport int	SetProperty (ULONG id, void *data)
virtual CoreExport void *	GetProperty (ULONG id)
virtual CoreExport void	BaseClone (ReferenceTarget *from, ReferenceTarget *to, RemapDir &remap)
	This method copies base class data from an object to its clone.
virtual BOOL	GetTransparencyHint (TimeValue t, Interval &valid)
	Transparency hint indicates whether the material is potentially transparent for both rendering and viewport display, so that the renderers or viewport can decide whether to optimize it or not.
MSTR &	GetName ()
CoreExport void	SetName (MSTR s)
virtual CoreExport MSTR	GetFullName (bool localized)
CoreExport void	SetMtlFlag (int mask, BOOL val=TRUE)
CoreExport void	ClearMtlFlag (int mask)
CoreExport int	TestMtlFlag (int mask)
virtual int	BuildMaps (TimeValue t, RenderMapsContext &rmc)
virtual CoreExport ULONG	Requirements (int subMtlNum)
virtual ULONG	LocalRequirements (int subMtlNum)
virtual CoreExport void	MappingsRequired (int subMtlNum, BitArray &mapreq, BitArray &bumpreq)
virtual void	LocalMappingsRequired (int subMtlNum, BitArray &mapreq, BitArray &bumpreq)
virtual BOOL	IsMultiMtl ()
virtual int	MapSlotType (int i)
CoreExport void	DeactivateMapsInTree ()
virtual void	Update (TimeValue t, Interval &valid)=0
void	Update (TimeValue t, Interval &&valid=FOREVER)
virtual void	Reset ()=0
virtual Interval	Validity (TimeValue t)=0
virtual ParamDlg *	CreateParamDlg (HWND hwMtlEdit, IMtlParams *imp)=0
CoreExport IOResult	Save (ISave *isave)
CoreExport IOResult	Load (ILoad *iload)
ULONG	GetGBufID ()
void	SetGBufID (ULONG id)
CoreExport void	EnumAuxFiles (AssetEnumCallback &nameEnum, DWORD flags)
virtual CoreExport PStamp *	GetPStamp (int sz)
virtual CoreExport PStamp *	CreatePStamp (int sz, BOOL Render=FALSE)
virtual CoreExport void	DiscardPStamp (int sz)
virtual BOOL	SupportTexDisplay ()
virtual DWORD_PTR	GetActiveTexHandle (TimeValue t, TexHandleMaker &thmaker)
CoreExport void	IncrActive ()
CoreExport void	DecrActive ()
int	Active ()
virtual void	ActivateTexDisplay (BOOL onoff)
virtual BOOL	SupportsMultiMapsInViewport ()
virtual void	SetupGfxMultiMaps (TimeValue t, Material *mtl, MtlMakerCallback &cb)
Public Member Functions inherited from ReferenceTarget
CoreExport void	GetClassName (MSTR &s, bool localized=true) const override
	Retrieves the name of the plugin class.
CoreExport SClass_ID	SuperClassID () override
	Retrieves a constant representing the type of the plugin.
BOOL	IsRefTarget () override
	Checks if this is a ReferenceTarget.
CoreExport RefResult	TestForLoop (const Interval &refInterval, RefMakerHandle hmaker)
	Tests for a cyclical reference.
CoreExport BOOL	HasDependents ()
	Checks if a ReferenceTarget has references.
CoreExport BOOL	HasRealDependents ()
	Checks if this has Real (Strong) Dependents.
void	BeginDependencyTest ()
	Starts Dependency Test.
BOOL	EndDependencyTest ()
	Ends Dependency Test.
virtual void	RefAddedUndoRedo (RefMakerHandle rm)
	Called after a reference is made to a target because of undo or redo.
virtual void	RefDeleted (ReferenceMaker *oldOwner)
	Called after a reference to this is deleted.
virtual void	RefDeletedUndoRedo (RefMakerHandle oldOwner)
	Called after a reference to this is deleted because of undo or redo.
CoreExport RefResult	DeleteAllRefsToMe () override
	Deletes all references to this ReferenceTarget.
CoreExport RefResult	TransferReferences (RefTargetHandle oldTarget, BOOL delOld=FALSE)
	Transfers all the references from oldTarget to this.
CoreExport int	DoEnumDependents (DependentEnumProc *dep)
	Begins an enumeration that searches back in the dependency network.
virtual CoreExport RefTargetHandle	Clone (RemapDir &remap)
	This method is used by 3ds Max to clone an object.
CoreExport RefResult	NotifyDependents (const Interval &changeInt, PartID partID, RefMessage message, SClass_ID sclass=NOTIFY_ALL, BOOL propagate=TRUE, RefTargetHandle hTarg=nullptr, NotifyDependentsOption notifyDependentsOption=REFNOTIFY_ALLOW_OPTIMIZATIONS) override
	Notify all dependent RefMakers concerned with the message.
void	FlagDependents (TimeValue t, PartID which=PART_PUT_IN_FG)
	This sends the REFMSG_FLAGDEPENDENTS message up the pipeline.
virtual void	NotifyForeground (TimeValue t)
	This method is called to flag dependents into the FG.
virtual void	NotifyTarget (int message, ReferenceMaker *hMaker)
	Sends messages to ReferenceTargets.
CoreExport void *	GetInterface (ULONG id) override
	Inherited from Animatable.
CoreExport BaseInterface *	GetInterface (Interface_ID id) override
	Inherited from Animatable.
CoreExport	ReferenceTarget ()
	Constructor.
virtual CoreExport RefResult	AutoDelete ()
	Deletes the object when it has no more real dependents.
CoreExport RefResult	MaybeAutoDelete ()
	Deletes the object when it has no more real dependents.
Public Member Functions inherited from ReferenceMaker
CoreExport RefResult	ReplaceReference (int which, RefTargetHandle newtarg, BOOL delOld=TRUE)
	Used when cloning reference makers.
CoreExport RefResult	DeleteAllRefsFromMe ()
	Deletes all references from this ReferenceMaker.
CoreExport RefResult	DeleteAllRefs ()
	Deletes all references both to and from this item.
CoreExport RefResult	DeleteReference (int i)
	Deletes the specified reference.
virtual BOOL	CanTransferReference (int i)
	Tells whether this reference can be transfered.
CoreExport ReferenceSaveManager &	GetReferenceSaveManager ()
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual CoreExport IOResult	Save (ISave *isave, ChannelMask)
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual CoreExport IOResult	Load (ILoad *iload, ChannelMask)
	Access the ReferenceSaveManager of this ReferenceMaker.
virtual int	RemapRefOnLoad (int iref)
	Used to load old files with references.
virtual CoreExport void	RescaleWorldUnits (float f)
	Rescale size of all world units in object and its reference hierarchy.
CoreExport void	EnumAuxFiles (AssetEnumCallback &assetEnum, DWORD flags) override
	Enumerate auxiliary files (e.g. bitmaps)
virtual CoreExport void	SaveEnum (SaveEnumProc &sep, BOOL isNodeCall=0)
	The default save enumeration.
virtual CoreExport bool	SpecifySaveReferences (ReferenceSaveManager &referenceSaveManager)
	Used to specify reference slot remapping during scene file save.
CoreExport int	DoEnumDependents (DependentEnumProc *dep)
	Begins an enumeration that searches back in the dependency network.
CoreExport bool	EnumRefHierarchy (RefEnumProc &proc, bool includeCustAttribs=true, bool includeIndirectRefs=true, bool includeNonPersistentRefs=true, bool preventDuplicatesViaFlag=true)
	This method provides a general purpose reference enumerator.
CoreExport int	FindRef (RefTargetHandle rtarg)
	Get the index of the ReferenceTarget.
BOOL	IsRefMaker () override
	Tells whether it is a ReferenceMaker.
virtual BOOL	IsRealDependency (ReferenceTarget *rtarg)
	Returns whether this is a "real" (strong) dependency or not.
virtual BOOL	ShouldPersistWeakRef (RefTargetHandle rtarg)
	Specifies whether a weak reference is to be persisted on a partial load or save.
CoreExport	ReferenceMaker ()
	Constructor.
CoreExport void	DeleteMe ()
	Deletes an instance of this class.
virtual CoreExport int	NumRefs ()
	Returns the total number of references this ReferenceMaker can hold.
virtual CoreExport RefTargetHandle	GetReference (int i)
	Returns the 'i-th' reference.
Public Member Functions inherited from Animatable
virtual void	FreeCaches ()
virtual int	NumChildren ()
virtual Animatable *	ChildAnim (int i)
virtual CoreExport MSTR	NodeName ()
virtual void	EditTrack ()
virtual CoreExport BOOL	SubAnimSetKeyBufferPresent (int subNum)
	returns true if the sub-anim has a "Set Key" buffer present
virtual BOOL	SetKeyBufferPresent ()
	returns true if there is a "Set Key" buffer present
virtual CoreExport void	SubAnimCommitSetKeyBuffer (TimeValue t, int subNum)
	Commit any "Set Key" buffers on the given sub-anim.
virtual void	CommitSetKeyBuffer (TimeValue t)
	Commit any "Set Key" buffers.
virtual CoreExport void	SubAnimRevertSetKeyBuffer (int subNum)
	Revert any "Set Key" buffers on the given sub-anim.
virtual void	RevertSetKeyBuffer ()
	Revert any "Set Key" buffers.
virtual LRESULT CALLBACK	TrackViewWinProc (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
	This function is obsolete.
virtual bool	IsParamBlockDesc2Used (ParamBlockDesc2 *desc)
	Returns true if the passed description is being used.
virtual bool	GetMacroRecorderName (bool used_as_rhs_value, MSTR &objectSpecifiedName)
	This method is called to access the object specified name to use for the Maxscript macrorecorder.
CoreExport	Animatable ()
	Constructor.
virtual CoreExport void	DeleteThis ()
	Deletes an instance of this class.
MSTR	ClassName (bool localized=true) const
	Returns the name of the plugin class.
virtual void	BeginEditParams (IObjParam *ip, ULONG flags, Animatable *prev=NULL)
virtual void	EndEditParams (IObjParam *ip, ULONG flags, Animatable *next=NULL)
virtual CoreExport void	ReleaseInterface (ULONG id, void *i)
CoreExport void	AppendProperty (AnimProperty *prop)
	A function to directly add arbitrary properties to this object developers should ensure that the properties ID does not conflict with any Max-specific IDs.
CoreExport AnimProperty *	FindProperty (DWORD id)
	Find any property.
CoreExport void	AddAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid, DWORD len, void *data)
	Adds application/plugin specific (custom) data to an Animatable.
CoreExport AppDataChunk *	GetAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid)
	Retrieves the application/plugin specific (custom) data stored with an Animatable.
CoreExport BOOL	RemoveAppDataChunk (const Class_ID &cid, SClass_ID sid, DWORD sbid)
	Deletes the application/plugin specific (custom) data stored with an Animatable.
CoreExport void	ClearAllAppData ()
	Deletes all application/plugin specific (custom) data stored with an Animatable.
virtual int	NumSubs ()
virtual Animatable *	SubAnim (int i)
virtual CoreExport MSTR	SubAnimName (int i, bool localized)
virtual BOOL	CanDeleteSubAnim (int i)
virtual void	DeleteSubAnim (int i)
virtual DWORD	GetSubAnimCurveColor (int subNum)
virtual int	SubNumToRefNum (int subNum)
virtual BOOL	CanCopyAnim ()
CoreExport int	HasSubElements (int type=0)
virtual int	GetSubFCurveExtents (int subNum, ParamDimensionBase *dim, float &min, float &max, DWORD flags)
	The values max and min should be initialized before calling this function.
virtual ParamDimension *	GetParamDimension (int i)
virtual BOOL	SelectSubAnim (int subNum)
virtual BOOL	BypassTreeView ()
virtual BOOL	BypassTrackBar ()
virtual BOOL	BypassPropertyLevel ()
virtual BOOL	InvisibleProperty ()
virtual int	NumKeys ()
virtual TimeValue	GetKeyTime (int index)
virtual int	GetKeyIndex (TimeValue t)
virtual BOOL	GetNextKeyTime (TimeValue t, DWORD flags, TimeValue &nt)
virtual void	CopyKeysFromTime (TimeValue src, TimeValue dst, DWORD flags)
virtual void	DeleteKeyAtTime (TimeValue t)
virtual BOOL	IsKeyAtTime (TimeValue t, DWORD flags)
virtual int	GetKeyTimes (Tab< TimeValue > &times, Interval range, DWORD flags)
virtual int	GetKeySelState (BitArray &sel, Interval range, DWORD flags)
CoreExport void	OpenTreeEntry (int type, DWORD tv)
CoreExport void	CloseTreeEntry (int type, DWORD tv)
CoreExport int	IsTreeEntryOpen (int type, DWORD tv)
CoreExport BOOL	GetSelInTrackView (DWORD tv)
CoreExport void	SetSelInTrackView (DWORD tv, BOOL sel)
CoreExport BOOL	InTrackViewSelSet (int which)
CoreExport void	SetTrackViewSelSet (int which, BOOL inOut)
virtual BOOL	AssignController (Animatable *control, int subAnim)
virtual BOOL	CanAssignController (int subAnim)
	Return true if we can reassign the subanim specified.
virtual BOOL	CanMakeUnique ()
CoreExport int	EnumAnimTree (AnimEnum *animEnum, Animatable *client, int subNum)
virtual int	RenderBegin (TimeValue t, ULONG flags=0)
virtual int	RenderEnd (TimeValue t)
virtual CoreExport Interval	GetTimeRange (DWORD flags)
virtual void	EditTimeRange (Interval range, DWORD flags)
virtual void	DeleteTime (Interval iv, DWORD flags)
virtual void	ReverseTime (Interval iv, DWORD flags)
virtual void	ScaleTime (Interval iv, float s)
virtual void	InsertTime (TimeValue ins, TimeValue amount)
virtual BOOL	SupportTimeOperations ()
virtual CoreExport void	MapKeys (TimeMap *map, DWORD flags)
virtual void	DeleteKeys (DWORD flags)
virtual void	DeleteKeyByIndex (int index)
virtual void	SelectKeys (TrackHitTab &sel, DWORD flags)
virtual void	SelectSubKeys (int subNum, TrackHitTab &sel, DWORD flags)
virtual void	SelectSubCurve (int subNum, BOOL sel)
virtual void	SelectKeyByIndex (int i, BOOL sel)
virtual BOOL	IsKeySelected (int i)
virtual void	FlagKey (TrackHitRecord hit)
virtual int	GetFlagKeyIndex ()
virtual int	NumSelKeys ()
virtual void	CloneSelectedKeys (BOOL offset=FALSE)
virtual void	AddNewKey (TimeValue t, DWORD flags)
virtual void	MoveKeys (ParamDimensionBase *dim, float delta, DWORD flags)
virtual void	ScaleKeyValues (ParamDimensionBase *dim, float origin, float scale, DWORD flags)
virtual void	SelectCurve (BOOL sel)
virtual BOOL	IsCurveSelected ()
	Returns TRUE if the function curve is selected; otherwise returns FALSE.
virtual BOOL	IsSubCurveSelected (int subNum)
	Returns the selected state of the sub-curve whose index is passed.
virtual int	GetSelKeyCoords (TimeValue &t, float &val, DWORD flags)
virtual void	SetSelKeyCoords (TimeValue t, float val, DWORD flags)
virtual int	SetSelKeyCoordsExpr (ParamDimension *dim, const MCHAR *timeExpr, const MCHAR *valExpr, DWORD flags)
virtual void	AdjustTangents (TrackHitRecord hit, ParamDimensionBase *dim, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, int dx, int dy, DWORD flags)
virtual void	AdjustTangents (TrackHitRecord hit, ParamDimensionBase *dim, float angle, float length, DWORD flags)
virtual CoreExport BOOL	IsAnimated ()
virtual BOOL	CanCopyTrack (Interval iv, DWORD flags)
virtual BOOL	CanPasteTrack (TrackClipObject *cobj, Interval iv, DWORD flags)
virtual TrackClipObject *	CopyTrack (Interval iv, DWORD flags)
virtual void	PasteTrack (TrackClipObject *cobj, Interval iv, DWORD flags)
virtual BOOL	CanCopySubTrack (int subNum, Interval iv, DWORD flags)
virtual BOOL	CanPasteSubTrack (int subNum, TrackClipObject *cobj, Interval iv, DWORD flags)
virtual TrackClipObject *	CopySubTrack (int subNum, Interval iv, DWORD flags)
virtual void	PasteSubTrack (int subNum, TrackClipObject *cobj, Interval iv, DWORD flags)
virtual int	GetTrackVSpace (int lineHeight)
virtual int	HitTestTrack (TrackHitTab &hits, Rect &rcHit, Rect &rcTrack, float zoom, int scroll, DWORD flags)
virtual int	PaintTrack (ParamDimensionBase *dim, HDC hdc, Rect &rcTrack, Rect &rcPaint, float zoom, int scroll, DWORD flags)
virtual int	PaintSubTrack (int subNum, ParamDimensionBase *dim, HDC hdc, Rect &rcTrack, Rect &rcPaint, float zoom, int scroll, DWORD flags)
virtual int	PaintFCurves (ParamDimensionBase *dim, HDC hdc, Rect &rcGraph, Rect &rcPaint, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	HitTestFCurves (ParamDimensionBase *dim, TrackHitTab &hits, Rect &rcHit, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	PaintSubFCurves (int subNum, ParamDimensionBase *dim, HDC hdc, Rect &rcGraph, Rect &rcPaint, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual int	HitTestSubFCurves (int subNum, ParamDimensionBase *dim, TrackHitTab &hits, Rect &rcHit, Rect &rcGraph, float tzoom, int tscroll, float vzoom, int vscroll, DWORD flags)
virtual void	EditTrackParams (TimeValue t, ParamDimensionBase *dim, const MCHAR *pname, HWND hParent, IObjParam *ip, DWORD flags)
virtual int	TrackParamsType ()
virtual int	GetFCurveExtents (ParamDimensionBase *dim, float &min, float &max, DWORD flags)
	This method is called to calculate the largest and smallest values of the anim.
CoreExport void	AddNoteTrack (NoteTrack *note)
CoreExport void	DeleteNoteTrack (NoteTrack *note, BOOL delNote=TRUE)
CoreExport BOOL	HasNoteTracks ()
CoreExport int	NumNoteTracks ()
CoreExport NoteTrack *	GetNoteTrack (int i)
CoreExport DWORD	DeleteAllNoteTracks ()
virtual void	FreeAllBitmaps ()
virtual void	GetSystemNodes (INodeTab &nodes, SysNodeContext Context)
virtual BOOL	IsSubClassOf (Class_ID classID)
	returns true if the animatable has sub-classed off the given class
virtual CoreExport void	MouseCycleCompleted (TimeValue t)
virtual CoreExport void	MouseCycleStarted (TimeValue t)
virtual int	NumParamBlocks ()
virtual IParamBlock2 *	GetParamBlock (int i)
virtual IParamBlock2 *	GetParamBlockByID (short id)
CoreExport bool	SvSaveData (ISave *isave, USHORT id)
CoreExport bool	SvLoadData (ILoad *iLoad)
CoreExport DWORD	SvGetRefIndex ()
CoreExport void	SvSetRefIndex (DWORD i)
CoreExport bool	SvDeleteRefIndex ()
CoreExport SvGraphNodeReference	SvStdTraverseAnimGraph (IGraphObjectManager *gom, Animatable *owner, int id, DWORD flags)
virtual CoreExport bool	SvCanConcludeLink (IGraphObjectManager *gom, IGraphNode *gNode, IGraphNode *gNodeChild)
virtual CoreExport bool	SvCanRemoveThis (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvRemoveThis (IGraphObjectManager *gom, IGraphNode *gNode)
	Called when the user deletes this object in the schematic view...
virtual CoreExport bool	SvIsHighlighted (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport COLORREF	SvGetSwatchColor (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvIsInactive (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvLinkChild (IGraphObjectManager *gom, IGraphNode *gNodeThis, IGraphNode *gNodeChild)
virtual CoreExport bool	SvEditProperties (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetTip (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetRefTip (IGraphObjectManager *gom, IGraphNode *gNode, IGraphNode *gNodeMaker)
virtual CoreExport bool	SvCanDetach (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport bool	SvDetach (IGraphObjectManager *gom, IGraphNode *gNode)
virtual CoreExport MSTR	SvGetRelTip (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Returns a string to be displayed in the tip window in the schematic view for a relationship from "gNodeMaker" to "gNodeTarget"...
virtual CoreExport bool	SvCanDetachRel (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Returns true if this object can respond to the SvDetachRel(...) method...
virtual CoreExport bool	SvDetachRel (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Detach this relationship.
virtual CoreExport bool	SvHandleRelDoubleClick (IGraphObjectManager *gom, IGraphNode *gNodeTarget, int id, IGraphNode *gNodeMaker)
	Called when this relationship is double-clicked in the schematic view...
CoreExport ICustAttribContainer *	GetCustAttribContainer ()
	This method returns a pointer to the custom attributes container interface class.
CoreExport void	AllocCustAttribContainer ()
	This method allocates space for a custom attributes container.
CoreExport void	DeleteCustAttribContainer ()
	This method deletes space used by a custom attributes container.
void	SetAFlag (DWORD mask)
void	ClearAFlag (DWORD mask)
	Clears one or more bits in the Animatable flags.
bool	TestAFlag (DWORD mask) const
	Tests one or more bits in the Animatable flags.
void	SetAFlagEx (DWORD mask)
	Sets one or more bits in the Animatable extended flags.
void	ClearAFlagEx (DWORD mask)
	Clears one or more bits in the Animatable extended flags.
bool	TestAFlagEx (DWORD mask) const
	Tests one or more bits in the Animatable extended flags.
CoreExport bool	TestFlagBit (int index)
	Tests the specified flag bit.
CoreExport void	SetFlagBit (int index, bool newValue=true)
	Sets the specified flag bit.
CoreExport void	ClearFlagBit (int index)
	Clears the specified flag bit.
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()
Public Member Functions inherited from ISubMap
virtual	~ISubMap ()
virtual int	NumSubTexmaps ()
virtual Texmap *	GetSubTexmap (int i)
virtual void	SetSubTexmap (int i, Texmap *m)
virtual int	SubTexmapOn (int i)
virtual CoreExport MSTR	GetSubTexmapSlotName (int i, bool localized)
CoreExport MSTR	GetSubTexmapTVName (int i, bool localized=true)
virtual BOOL	SetDlgThing (ParamDlg *dlg)
CoreExport void	CopySubTexmap (HWND hwnd, int ifrom, int ito)
Public Member Functions inherited from FPMixinInterface
	FPMixinInterface ()
virtual LifetimeType	LifetimeControl ()
virtual CoreExport bool	RegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual void	UnRegisterNotifyCallback (InterfaceNotifyCallback *incb)
CoreExport	~FPMixinInterface ()
virtual FPInterfaceDesc *	GetDescByID (Interface_ID id)
Public Member Functions inherited from FPInterface
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t=0, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPParams *params)
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t, FPValue &result, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPValue &result, FPParams *params=NULL)
virtual CoreExport FunctionID	FindFn (const MCHAR *name)
virtual CoreExport BOOL	IsEnabled (FunctionID actionID)
virtual CoreExport BOOL	IsChecked (FunctionID actionID)
virtual CoreExport BOOL	IsVisible (FunctionID actionID)
virtual CoreExport FunctionID	GetIsEnabled (FunctionID actionID)
virtual CoreExport FunctionID	GetIsChecked (FunctionID actionID)
virtual CoreExport FunctionID	GetIsVisible (FunctionID actionID)
virtual ActionTable *	GetActionTable ()
virtual void	EnableActions (BOOL onOff)
Public Member Functions inherited from BaseInterface
virtual UtilExport	~BaseInterface ()
	Destructor.
virtual BaseInterface *	AcquireInterface ()
virtual void	ReleaseInterface ()
virtual void	DeleteInterface ()
virtual BaseInterface *	CloneInterface (void *remapDir=nullptr)

Static Public Member Functions
static bool	Is_IXRefMaterial (Animatable &animatable)
	Determines whether it is safe to cast an Animatable to an IXRefMaterial.
static IXRefMaterial *	GetInterface (InterfaceServer &is)
	Retrieves the IXRefMaterial interface from a scene entity.
Static Public Member Functions inherited from Animatable
static CoreExport BOOL	IsDeleted (Animatable *anim)
	Debug method to determine whether an object has been deleted.
static CoreExport AnimHandle	GetHandleByAnim (Animatable *anim)
	Get the unique handle for an Animatable object.
static CoreExport Animatable *	GetAnimByHandle (AnimHandle handle)
	Get an Animatable object from its unique handle.
static CoreExport AnimHandle	GetNextHandle ()
	Get the unique handle for the next Animatable object to be created.
static CoreExport DWORD	GetNumAnimatables ()
	Get the number of existing Animatable objects.
static CoreExport Tab< AnimHandle >	GetExistingAnimatables ()
	Get a list of existing Animatable objects.
static CoreExport void	EnumerateAllAnimatables (EnumAnimList &enumProcObject)
	Enumerator to enumerate across all animatables.
static CoreExport bool	RegisterAppDataLoadCallback (const Class_ID &cid, SClass_ID sid, APPDATALOADPROC proc)
	Registers a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	UnRegisterAppDataLoadCallback (const Class_ID &cid, SClass_ID sid, APPDATALOADPROC proc)
	Unregisters a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	RegisterAppDataLoadCallback (DWORD sbid, APPDATALOADPROC proc)
	Registers a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport bool	UnRegisterAppDataLoadCallback (DWORD sbid, APPDATALOADPROC proc)
	Unregisters a callback proc that is called when an AppDataChunk is read from a scene file.
static CoreExport void	ClearAFlagInAllAnimatables (DWORD mask)
	Clears one or more bits in the Animatable flags in all Animatables.
static CoreExport void	ClearAFlagExInAllAnimatables (DWORD mask)
	Clears one or more bits in the Animatable extended flags in all Animatables.
static CoreExport int	RequestFlagBit ()
	Requests an unique flag bit index.
static CoreExport void	ReleaseFlagBit (int index)
	Releases the flag bit index.
static CoreExport void	ClearFlagBitInAllAnimatables (int index)
	Clears the specified flag bit in all Animatables.
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void *ptr, void *placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.

Additional Inherited Members
Public Attributes inherited from MtlBase
Quat	meditRotate
ULONG	gbufID
Static Public Attributes inherited from Animatable
static const AnimHandle	kInvalidAnimHandle = 0
Static Public Attributes inherited from FPInterface
static CoreExport FPInterfaceDesc	nullInterface
Protected Member Functions inherited from ReferenceTarget
CoreExport int	DoEnumDependentsImpl (DependentEnumProc *dep) override
	Method to perform an enumeration on a ReferenceTarget.
virtual CoreExport	~ReferenceTarget ()=0
	Destructor.
Protected Member Functions inherited from ReferenceMaker
virtual CoreExport	~ReferenceMaker ()=0
	Destructor.
virtual CoreExport void	SetReference (int i, RefTargetHandle rtarg)
	Stores a ReferenceTarget as its 'i-th' reference`.
void	BlockEval ()
	Validates a given reference link between this reference maker and its reference target.
void	UnblockEval ()
	Validates a given reference link between this reference maker and its reference target.
int	Evaluating ()
	Validates a given reference link between this reference maker and its reference target.
CoreExport RefResult	StdNotifyRefChanged (const Interval &changeInt, RefTargetHandle hTarget, PartID partID, RefMessage message, BOOL propagate, NotifyDependentsOption notifyDependentsOption)
	Validates a given reference link between this reference maker and its reference target.
Protected Member Functions inherited from Animatable
virtual CoreExport	~Animatable ()=0
	Destructor.
Protected Member Functions inherited from Noncopyable
	Noncopyable ()
	~Noncopyable ()
Protected Member Functions inherited from FPMixinInterface
	FPMixinInterface (const FPMixinInterface &rhs)
FPMixinInterface &	operator= (const FPMixinInterface &rhs)
Protected Member Functions inherited from FPInterface
virtual FPStatus	_dispatch_fn (FunctionID fid, TimeValue t, FPValue &result, FPParams *p)
Protected Attributes inherited from Animatable
DWORD	aflag
AnimPropertyList	aprops
Protected Attributes inherited from FPMixinInterface
Tab< InterfaceNotifyCallback * > *	interfaceNotifyCBs

Detailed Description

Class representing xref materials.

This interface groups functionality specific to xref materials. In order to access functionality common to all xref scene entities, use the IXRefItem interface. An xref material acts as a wrapper around the xrefed material (also referred to as the "source material"). For example, all shading methods on the XRef Material are automatically forwarded to the source material, requests for interfaces are also forwarded to the source material. Client or plugin code working with materials should not be required to write xref material specific code, unless the desired functionality is xref specific.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kfpGetSourceMaterial

         {
        kfpGetSourceMaterial,
    };

Member Function Documentation

GetSourceMaterial()

virtual Mtl * GetSourceMaterial ( bool resolveNestedXRef = false ) const

pure virtual

Retrieves the source material, the actual material behind the XRef.

Parameters

[in]

resolveNestedXRef

- When set to true, the method will recursively resolve any nested XRef materials, guaranteeing that the material being returned is NOT an XRef material. When set to false, the source is returned directly without attempting to resolve nesting.

Returns

The source material, or NULL if the XRef is unresoled.

Is_IXRefMaterial()

bool Is_IXRefMaterial ( Animatable & animatable )

inlinestatic

Determines whether it is safe to cast an Animatable to an IXRefMaterial.

Parameters

[in]

animatable

- The animatable to test.

Returns

true if the specified animatable can be safely cast to IXRefMaterial, false otherwise.

                                                                  {

    return ((animatable.SuperClassID() == MATERIAL_CLASS_ID)
        && (animatable.ClassID() == XREFMATERIAL_CLASS_ID));
}

GetInterface() [1/2]

IXRefMaterial * GetInterface ( InterfaceServer & is )

inlinestatic

Retrieves the IXRefMaterial interface from a scene entity.

Parameters

[in]

is

- Reference to scene entity

Returns

Pointer to the IXRefMaterial interface of the scene entity or NULL if it's not an xref material

                                                                     {

    return static_cast<IXRefMaterial*>(is.GetInterface(IID_XREF_MATERIAL));
};

GetIXRefMaterialDesc()

virtual FPInterfaceDesc * GetIXRefMaterialDesc ( )

pure virtual

Returns the function publishing descriptor for the XRef Material.

This method is need in order to avoid problems inherant to multiple inheritance.

Returns

The function publishing descriptor for the XRef Material.

GetID()

Interface_ID GetID ( )

inlinevirtual

Remarks

This method overrides GetID() in those interfaces that do not publish metadata but instead have a unique Interface_ID for quick internal identification in implementation code that might be shared by a bunch of mixin interfaces.

Returns

The Interface_ID.

Default Implementation:

{ return GetDesc()->ID; }

Reimplemented from FPMixinInterface.

Reimplemented in IXRefMaterial18.

                                         {

    return IID_XREF_MATERIAL;
}

GetDesc()

FPInterfaceDesc * GetDesc ( )

inlinevirtual

Remarks

Returns a pointer to the class which contains the interface metadata.

Implements FPInterface.

                                               {

    return GetIXRefMaterialDesc();
}

FN_1()

FN_1	(	kfpGetSourceMaterial	,
		TYPE_MTL	,
		GetSourceMaterial	,
		TYPE_bool	)

GetInterface() [2/2]

virtual BaseInterface * GetInterface ( Interface_ID id )

inlinevirtual

Remarks

Returns a pointer to the Base Interface for the interface ID passed. The default implementation of this method retrieves this information from the ClassDesc for the plug-in.

Any future object-based interfaces should be allocated unique Interface_IDs (you can use Gencid.exe for this) and made available through this call.

The default implementation of GetInterface(Interface_ID) looks up a standalone interface of the given ID on the object's ClassDesc. This gives access to standalone interfaces via any of a plug-in's objects, without having to dig around for the ClassDesc, so you should fall back to calling the default implementation if you don't recognize an ID in your implementation of GetInterface(Interface_ID).

Parameters

id	The unique ID of the interface to get. See Class Interface_ID.

Reimplemented from MtlBase.

{ if (id == FPMIXININTERFACE_ID) return this; else return FPInterface::GetInterface(id); }
