Autodesk Solid Glass

This material has the appearance of solid glass.

Note: The material appears in the Material/Map Browser only if the active renderer supports it.

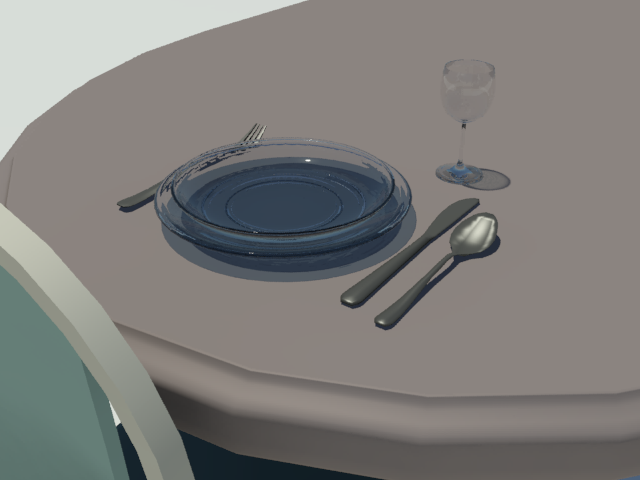

Clear (default) Autodesk Solid Glass used for the wine glass

Blue Autodesk Solid Glass used for the plate and bowl

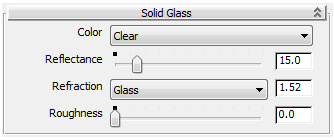

Interface

Color

Lets you choose a color for the glass.

Clear (The default.)
Green
Gray
Blue
Blue Green
Bronze
Custom

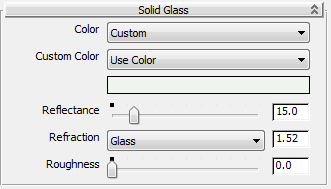

When Custom is active, the Custom Color control appears. This drop-down list gives you these choices:
- Use Color (The default.) Sets the base color for the paint.
  Click the color swatch to change the color.
- Use Map Maps the main color of the paint.

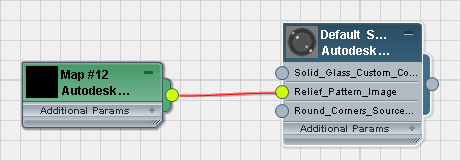

  Click the map button (or use Slate Material Editor node wiring) to assign a map to the material.
- Color By Object Uses the object's 3ds Max wireframe color as the paint color.
  Important: When you use Color By Object, the color appears in renderings, but not in viewports or material previews. This is because the material might be applied to multiple objects that have different wireframe colors.

Reflectance

Sets the reflectivity of the glass. Range: 0.0 to 100.0. Default=5.0.

Refraction

Sets the refractivity (Index of Refraction, or IOR) of the glass.

Note: You can also set a custom IOR value by entering a custom value in the numeric field.

Roughness

Sets the roughness of the surface of the glass. Range: 0.0 to 0.1. Default=0.0.

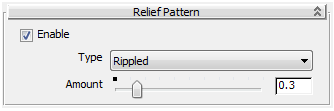

Enable

When on, applies a relief pattern to the surface of the glass. Default=off.

Type

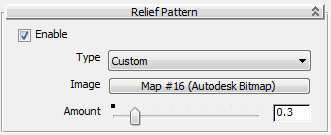

Lets you choose a predefined relief pattern, or create a custom pattern.

Amount

Controls the height of the relief. Range: 0.0 to 2.0. Default=0.3.
