This example shows how Vortex machines pockets, channels and narrow corners.
For more information on the general principles of Vortex machining, see Vortex and step cutting example.

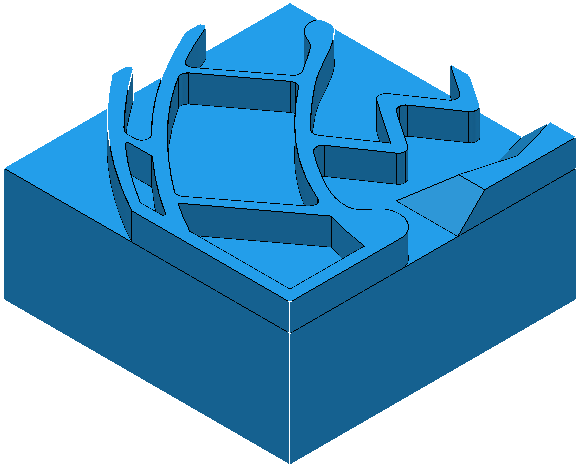

Using a 2.5D model:

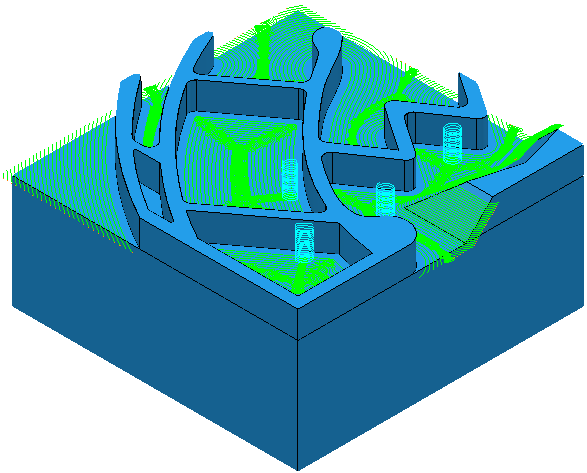

Create a Vortex toolpath:

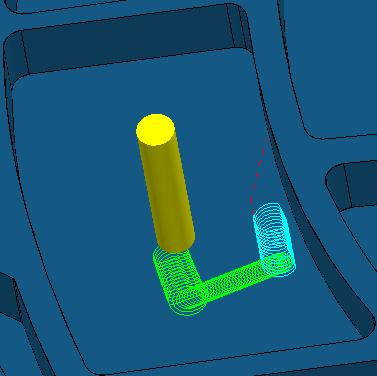

For pockets, the tool spirals down into the pocket before using trochoidal paths over the full-width cuts.

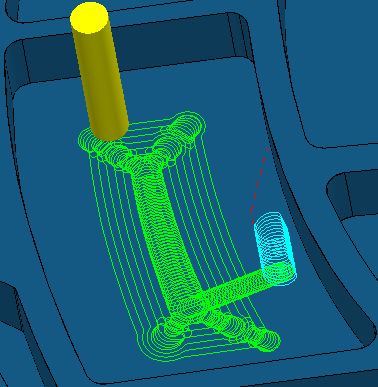

On completion of the initial full-width cut, the trochoids are placed in the corners where the maximum tool engagement angle would otherwise be exceeded.
