Labels can be displayed showing selected details about a network object on the Long Section window.
The displayed details are read-only. Information such as the geographical location of a node will be updated when a node is moved on the GeoPlan. All other data can be viewed and edited on the Grid Windows or the Property Sheets.
For details about adding custom labels, see Displaying Custom Labels on the Long Section.
Display control
Label display is controlled from the Section Properties dialog.
You can choose to display labels for nodes, pipes or both. Grid labels are displayed for all objects in the long section along the bottom of the view and custom labels are displayed on the Long Section Window in callouts.

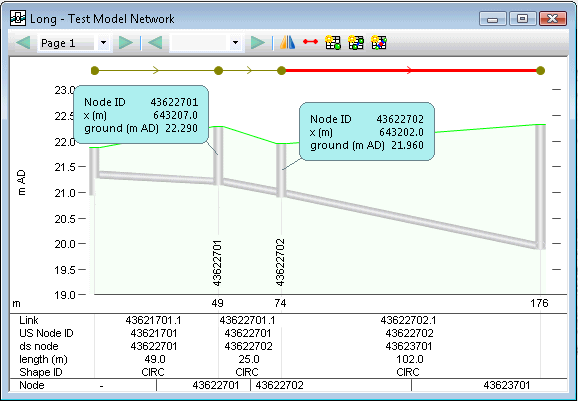

Example of Long Section Window in InfoWorks ICM. The picture shows grid labels for pipes displayed across the bottom of the view and custom labels for two nodes.
To change the labels displayed, click Field Settings on the Section Properties dialog to access the Network Label Field Settings dialog.
Set defaults
You can save the current object label settings as the default for all future instances of the Long Section window. Click Save as default in the Network Label Field Settings dialog.
